Telecentric lenses

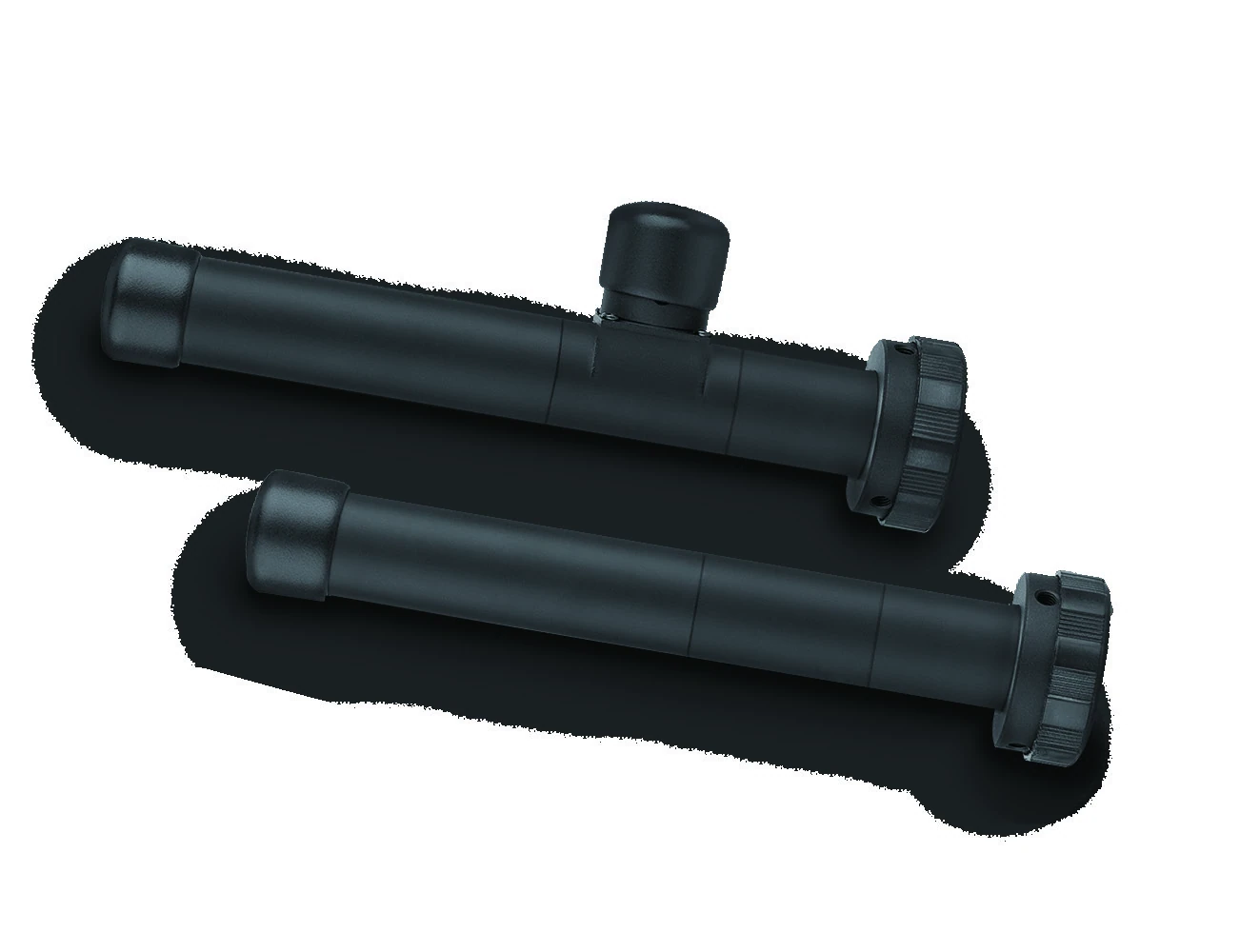

Standard / fixed magnification telecentric lens (VWL), 6x, WD 65 mm, 1/2", C-Mount (LS-VWL60-65CT)
Model LS-VWL60-65CT
VWL series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.
Features
- The required magnification and working distance can be accommodated to meet your individual requirements by using an optional closed-up ring adapter.
- Compact design with 16mm diameter, ideal for limited space
- Ideal for manufacturing equipment
- VWH or VWK series available for Megapixel camera or high-level camera.
Specifications
| Model | LS-VWL60-65CT |
|---|---|
| Magnification(x) | 6.0 |
| Working Distance (mm) | 65 |
| Max Sensor Size (dia. mm) | 8.0(1/2") |
| Aperture (F/#) | 39.2 |
| NA | 0.073 |
| Resolution (um) | 4.6 |
| Depth of Field (mm) | 0.1 |
| FOV with 6.66x5.33 with 9M001 (mm x mm) | 1.1x0.9 |
| FOV with 6.47x4.84 with ICX267/205 (mm x mm) | 1.1x0.8 |
| Mount | C |
| Length (mm) | 118.6 |
| Coaxial Light | Yes |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 1/2" |
| Magnification (product parameters) | 6.0x |
| WD (product parameters) | 65mm |
| Magnification (x) | 6.0 |
| Field of view with 9M001 (6.66x5.33 sensor) (mm x mm) | 1.1x0.9 |
| Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm) | 1.1x0.8 |
| Length(mm) | 118.6 |
| Sensor format | 1/2" |
| Shipping weight | 0.46 kg |
