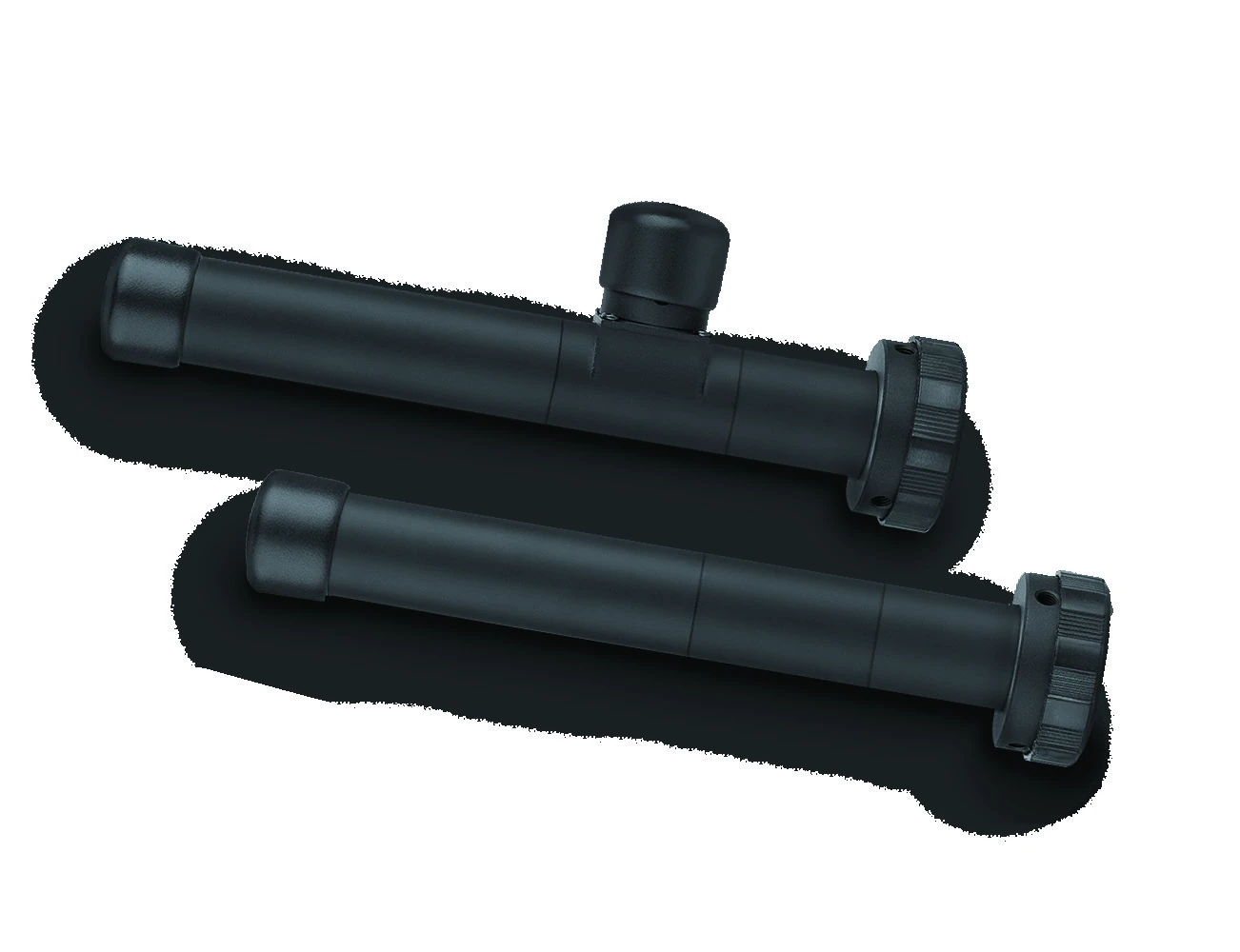

Standard / fixed magnification telecentric lens (VWL), 2x, WD 250 mm, 1/3", C-Mount (LS-VWL20-250C)
Model LS-VWL20-250C
VWL series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.
Features
- The required magnification and working distance can be accommodated to meet your individual requirements by using an optional closed-up ring adapter.
- Compact design with 16mm diameter, ideal for limited space
- Ideal for manufacturing equipment
- VWH or VWK series available for Megapixel camera or high-level camera.
Specifications
| Model | LS-VWL20-250C |
|---|---|
| Magnification(x) | 2.0 |
| Working Distance (mm) | 250 |
| Max Sensor Size (dia. mm) | 6.0(1/3") |
| Aperture (F/#) | 40 |
| NA | 0.025 |
| Resolution (um) | 13.4 |
| Depth of Field (mm) | 0.8 |
| FOV with 4.86x3.62 with ICX445 (mm x mm) | 2.4x1.8 |
| FOV with 4.8x3.6 with 9M021/22/24 (mm x mm) | 2.4x1.8 |
| Mount | C |
| Length (mm) | 141.2 |
| Coaxial Light | Yes |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 1/3" |
| Magnification (product parameters) | 2.0x |
| WD (product parameters) | 250mm |
| Magnification (x) | 2.0 |
| Field of view with ICX445 (4.86x3.62 sensor) (mm x mm) | 2.4x1.8 |
| Field of view with 9M021/22/24 (4.8x3.6 sensor) (mm x mm) | 2.4x1.8 |
| Length(mm) | 141.2 |
| Sensor format | 1/3" |
| Shipping weight | 0.48 kg |
