Telecentric lenses

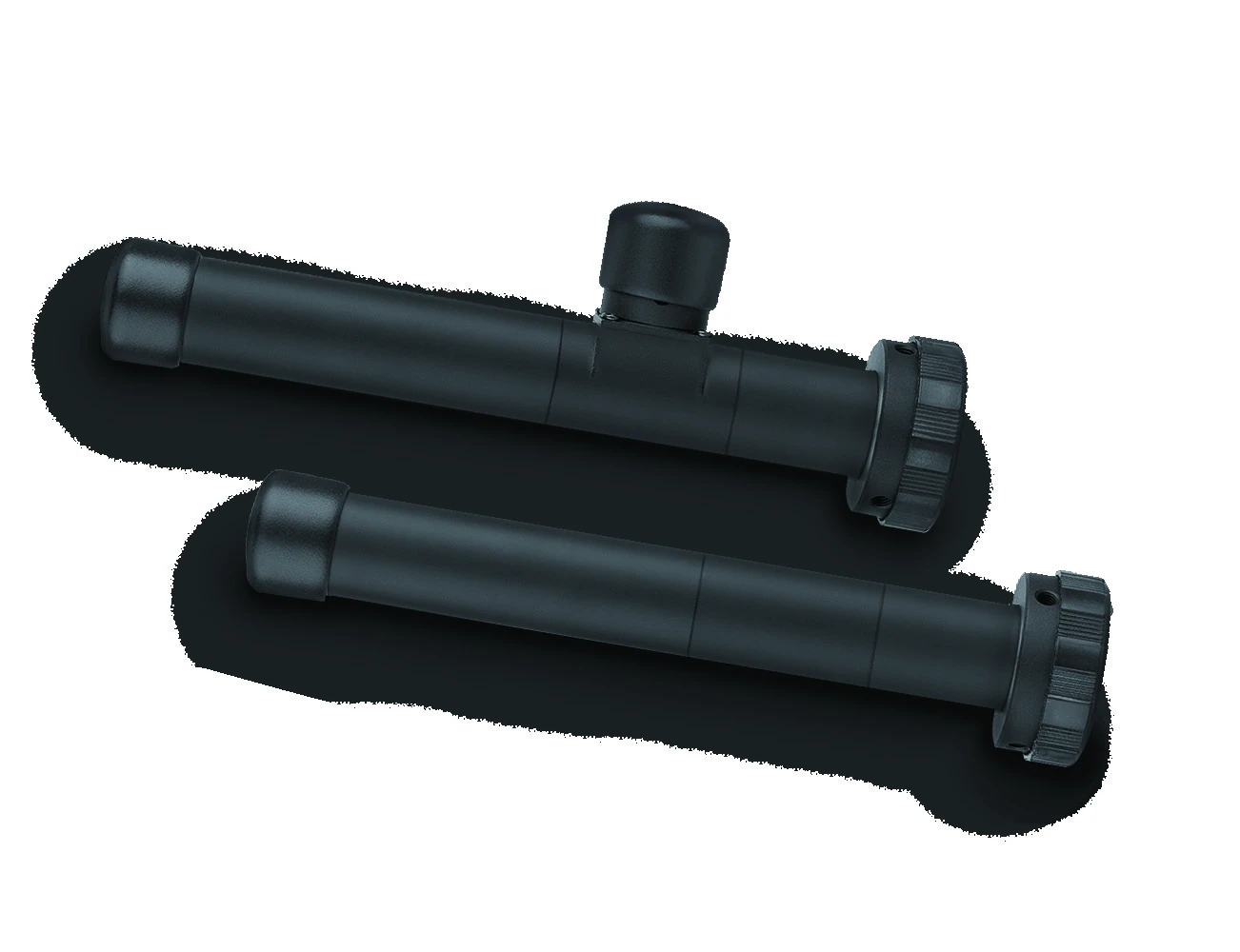

Standard / fixed magnification telecentric lens (VWL), 2.5x, WD 110 mm, 1/2", C-Mount (LS-VWL25-110A)
Model LS-VWL25-110A
VWL series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.
Features
- The required magnification and working distance can be accommodated to meet your individual requirements by using an optional closed-up ring adapter.
- Compact design with 16mm diameter, ideal for limited space
- Ideal for manufacturing equipment
- VWH or VWK series available for Megapixel camera or high-level camera.
Specifications
| Model | LS-VWL25-110A |
|---|---|
| Magnification(x) | 2.5 |
| Working Distance (mm) | 110 |
| Max Sensor Size (dia. mm) | 8.0(1/2") |
| Aperture (F/#) | 29.9 |
| NA | 0.041 |
| Resolution (um) | 8.2 |
| Depth of Field (mm) | 0.4 |
| FOV with 6.66x5.33 with 9M001 (mm x mm) | 2.7x2.1 |
| FOV with 6.47x4.84 with ICX267/205 (mm x mm) | 2.6x1.9 |
| Mount | C |
| Length (mm) | 109.7 |
| Coaxial Light | No |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 1/2" |
| Magnification (product parameters) | 2.5x |
| WD (product parameters) | 110mm |
| Magnification (x) | 2.5 |
| Field of view with 9M001 (6.66x5.33 sensor) (mm x mm) | 2.7x2.1 |
| Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm) | 2.6x1.9 |
| Length(mm) | 109.7 |
| Sensor format | 1/2" |
| Shipping weight | 0.48 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Standard / fixed magnification telecentric lens (VWL) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VWL40-150C | 4x, WD 150 mm, 1/2", C-Mount | $579.00 | 5 in stock | View |
| LS-VWL40-65A | 4x, WD 65 mm, 1/2", C-Mount | $579.00 | 5 in stock | View |
| LS-VWL40-65C | 4x, WD 65 mm, 1/2", C-Mount | $579.00 | 3 in stock | View |
| LS-VWL15-110AN | 1.5x, WD 110 mm, 1/3", C-Mount | $589.00 | 5 in stock | View |
| LS-VWL15-110CN | 1.5x, WD 110 mm, 1/3", C-Mount | $589.00 | 2 in stock | View |
| LS-VWL30-110AT | 3x, WD 110 mm, 1/2", C-Mount | $589.00 | 5 in stock | View |
| LS-VWL30-110CT | 3x, WD 110 mm, 1/2", C-Mount | $589.00 | 3 in stock | View |
| LS-VWL30-150AT | 3x, WD 150 mm, 1/2", C-Mount | $589.00 | 5 in stock | View |
| LS-VWL30-150CT | 3x, WD 150 mm, 1/2", C-Mount | $589.00 | 3 in stock | View |
| LS-VWL30-65A | 3x, WD 65 mm, 1/2", C-Mount | $589.00 | 2 in stock | View |
| LS-VWL30-65C | 3x, WD 65 mm, 1/2", C-Mount | $589.00 | 4 in stock | View |
| LS-VWL20-250C | 2x, WD 250 mm, 1/3", C-Mount | $599.00 | 5 in stock | View |
| LS-VWL25-110C | 2.5x, WD 110 mm, 1/2", C-Mount | $599.00 | 3 in stock | View |
| LS-VWL15-250C | 1.5x, WD 250 mm, 1/3", C-Mount | $609.00 | 4 in stock | View |
| LS-VWL20-110ATS | 2x, WD 110 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL20-110CTS | 2x, WD 110 mm, 1/2", C-Mount | $609.00 | 3 in stock | View |
| LS-VWL20-150AT | 2x, WD 150 mm, 1/2", C-Mount | $609.00 | 5 in stock | View |
| LS-VWL20-150CT | 2x, WD 150 mm, 1/2", C-Mount | $609.00 | 3 in stock | View |
| LS-VWL20-250A | 2x, WD 250 mm, 1/2", C-Mount | $609.00 | 3 in stock | View |
| LS-VWL20-65AT | 2x, WD 65 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL20-65CT | 2x, WD 65 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL15-150AT | 1.5x, WD 150 mm, 1/2", C-Mount | $629.00 | 2 in stock | View |
| LS-VWL15-150CT | 1.5x, WD 150 mm, 1/2", C-Mount | $629.00 | 3 in stock | View |
| LS-VWL15-250A | 1.5x, WD 250 mm, 1/2", C-Mount | $629.00 | 5 in stock | View |
See all 51 models in the Standard / fixed magnification telecentric lens (VWL) series
