Telecentric lenses · 18 models · from $579.00

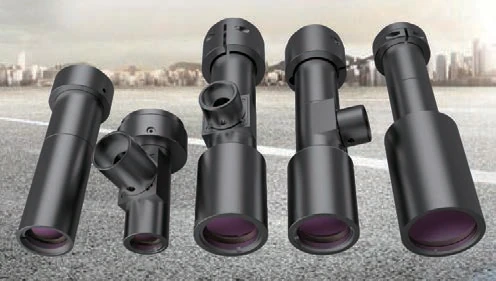

Macro/megapixel telecentric lens, WD 65 mm
The Macro/megapixel telecentric lens, WD 65 mm is a range of 18 telecentric lenses from LumaSpec Vision, from $579.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.3x, WD 65 mm, 2/3", C-mount, 0.5x, WD 65 mm, 2/3", C-mount, 0.8x, WD 65 mm, 2/3", C-mount, 1x, WD 65 mm, 2/3", C-mount, 1.5x, WD 65 mm, 2/3", C-mount, 2x, WD 65 mm, 2/3", C-mount, 3x, WD 65 mm, 2/3", C-mount, 4x, WD 65 mm, 2/3", C-mount, 6x, WD 65 mm, 2/3", C-mount |
|---|---|
| Mount | C-mount |
| Image circle | 8-11 mm |
| Type | Object-side telecentric |
| Coaxial light | Built-in coaxial light, No coaxial port |
| Magnification | 0.3-0.6x, 0.6-1x, 1-2x, 2x + |
| Working distance | 65-110 mm |
| Sensor format | 2/3" |
Features
- Full range of object-side telecentric fixed magnification lenses
- Multiple working distances / magnifications / sensor sizes for selection
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Compact design with coaxial illumination options
- Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnifications / CCD sizes for selection
- Perfect image and supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution, compact design with coaxial illumination options
Typical uses
- High-precision visual positioning
- High-precision visual positioning and similar applications
All 18 models in the Macro/megapixel telecentric lens, WD 65 mm
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-VDH40-65-230 | 4x, WD 65 mm, 2/3", C-mount | $579.00 | 2 in stock | View |
| LS-VDH40-65C-230 | 4x, WD 65 mm, 2/3", C-mount | $579.00 | 2 in stock | View |
| LS-VDH30-65-230 | 3x, WD 65 mm, 2/3", C-mount | $589.00 | 3 in stock | View |
| LS-VDH30-65C-230 | 3x, WD 65 mm, 2/3", C-mount | $589.00 | 2 in stock | View |
| LS-VDH60-65-230 | 6x, WD 65 mm, 2/3", C-mount | $589.00 | 5 in stock | View |
| LS-VDH60-65C-230 | 6x, WD 65 mm, 2/3", C-mount | $589.00 | 4 in stock | View |
| LS-VDH20-65-230 | 2x, WD 65 mm, 2/3", C-mount | $609.00 | 4 in stock | View |
| LS-VDH20-65C-230 | 2x, WD 65 mm, 2/3", C-mount | $609.00 | 4 in stock | View |
| LS-VDH15-65-230 | 1.5x, WD 65 mm, 2/3", C-mount | $629.00 | 4 in stock | View |
| LS-VDH15-65C-230 | 1.5x, WD 65 mm, 2/3", C-mount | $629.00 | 5 in stock | View |
| LS-VDH10-65-230 | 1x, WD 65 mm, 2/3", C-mount | $659.00 | 3 in stock | View |
| LS-VDH10-65C-230 | 1x, WD 65 mm, 2/3", C-mount | $659.00 | 3 in stock | View |
| LS-VDH08-65-230 | 0.8x, WD 65 mm, 2/3", C-mount | $689.00 | 5 in stock | View |
| LS-VDH08-65C-230 | 0.8x, WD 65 mm, 2/3", C-mount | $689.00 | 5 in stock | View |
| LS-VDH05-65-230 | 0.5x, WD 65 mm, 2/3", C-mount | $769.00 | 2 in stock | View |
| LS-VDH05-65C-230 | 0.5x, WD 65 mm, 2/3", C-mount | $769.00 | 4 in stock | View |
| LS-VDH03-65-230 | 0.3x, WD 65 mm, 2/3", C-mount | $919.00 | 2 in stock | View |
| LS-VDH03-65C-230 | 0.3x, WD 65 mm, 2/3", C-mount | $919.00 | 4 in stock | View |
