Telecentric lenses · 25 models · from $999.00

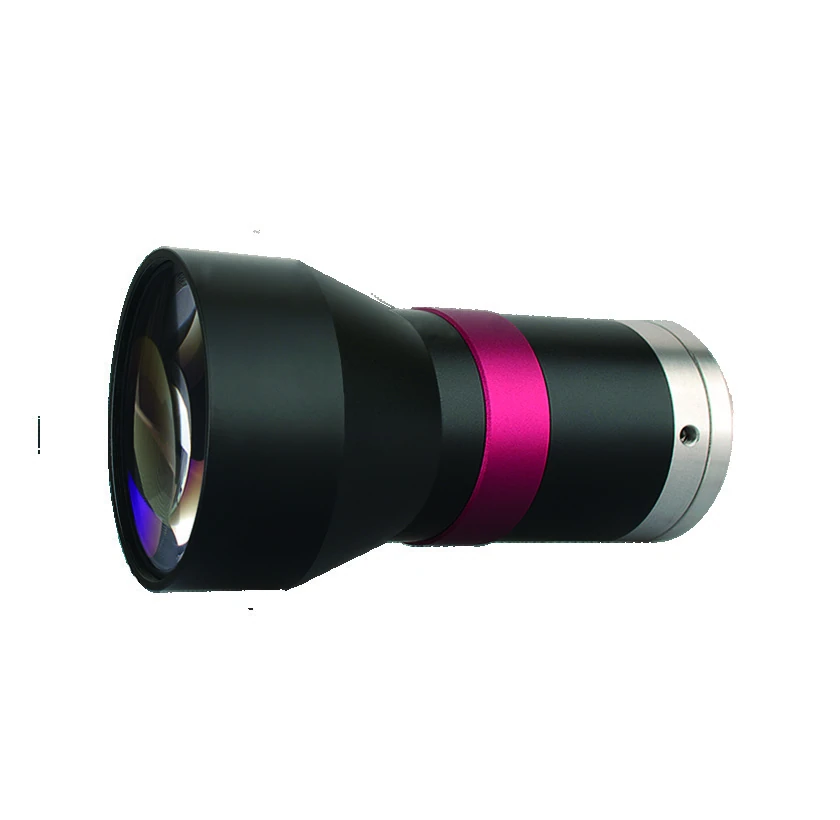

Bi-telecentric lens for 2/3" cameras (VCM230 series)
The Bi-telecentric lens for 2/3" cameras (VCM230 series) is a range of 25 telecentric lenses from LumaSpec Vision, from $999.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.038x, WD 465 mm, 2/3", C-mount, 0.044x, WD 410 mm, 2/3", C-Mount, 0.06x, WD 330 mm, 2/3", C-mount, 0.063x, WD 318 mm, 2/3", C-Mount, 0.071x, WD 301 mm, 2/3", C-Mount, 0.078x, WD 288 mm, 2/3", C-Mount, 0.095x, WD 251 mm, 2/3", C-Mount, 0.095x, WD 280 mm, 2/3", C-mount, 0.114x, WD 254 mm, 2/3", C-Mount, 0.127x, WD 208 mm, 2/3", C-mount, 0.132x, WD 229 mm, 2/3", C-Mount, 0.147x, WD 178 mm, 2/3", C-Mount, 0.165x, WD 159 mm, 2/3", C-Mount, 0.166x, WD 187 mm, 2/3", C-Mount, 0.19x, WD 138 mm, 2/3", C-Mount, 0.221x, WD 128 mm, 2/3", C-Mount and 8 more |
|---|---|
| Mount | C-mount |
| Image circle | 8-11 mm |
| Type | Bi-telecentric |
| Magnification | Under 0.1x, 0.1-0.3x, 0.3-0.6x |
| Working distance | 65-110 mm, 110-200 mm, 200 mm + |
| Sensor format | 2/3" |
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 25 models in the Bi-telecentric lens for 2/3" cameras (VCM230 series)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM230-26 | 0.438x, WD 73 mm, 2/3", C-mount | $999.00 | 2 in stock | View |
| LS-VCM230-26-AL | 0.409x, WD 72 mm, 2/3", C-Mount | $1,039.00 | 2 in stock | View |
| LS-VCM230-36 | 0.317x, WD 110 mm, 2/3", C-mount | $1,169.00 | 3 in stock | View |
| LS-VCM230-36-AL | 0.293x, WD 111 mm, 2/3", C-Mount | $1,209.00 | 2 in stock | View |
| LS-VCM230-42 | 0.271x, WD 118 mm, 2/3", C-mount | $1,279.00 | 5 in stock | View |
| LS-VCM230-42-AL | 0.252x, WD 119 mm, 2/3", C-Mount | $1,309.00 | 3 in stock | View |
| LS-VCM230-48S-AL | 0.238x, WD 138 mm, 2/3", C-mount | $1,379.00 | 5 in stock | View |
| LS-VCM230-48 | 0.238x, WD 128 mm, 2/3", C-mount | $1,379.00 | 5 in stock | View |
| LS-VCM230-48-AL | 0.221x, WD 128 mm, 2/3", C-Mount | $1,409.00 | 3 in stock | View |
| LS-VCM230-56-AL | 0.19x, WD 138 mm, 2/3", C-Mount | $1,549.00 | 4 in stock | View |
| LS-VCM230-64-AL | 0.166x, WD 187 mm, 2/3", C-Mount | $1,689.00 | 5 in stock | View |
| LS-VCM230-64P-AL | 0.165x, WD 159 mm, 2/3", C-Mount | $1,689.00 | 2 in stock | View |
| LS-VCM230-72-AL | 0.147x, WD 178 mm, 2/3", C-Mount | $1,879.00 | 3 in stock | View |
| LS-VCM230-80P-AL | 0.132x, WD 229 mm, 2/3", C-Mount | $1,929.00 | 3 in stock | View |
| LS-VCM230-80-AL | 0.132x, WD 229 mm, 2/3", C-Mount | $1,999.00 | 5 in stock | View |
| LS-VCM230-90-AL | 0.127x, WD 208 mm, 2/3", C-mount | $2,099.00 | 4 in stock | View |
| LS-VCM230-100-AL | 0.114x, WD 254 mm, 2/3", C-Mount | $2,219.00 | 3 in stock | View |
| LS-VCM230-110-AL | 0.095x, WD 251 mm, 2/3", C-Mount | $2,529.00 | 4 in stock | View |
| LS-VCM230-120-AL | 0.095x, WD 280 mm, 2/3", C-mount | $2,609.00 | 5 in stock | View |
| LS-VCM230-136-AL | 0.078x, WD 288 mm, 2/3", C-Mount | $2,969.00 | 5 in stock | View |
| LS-VCM230-150-AL | 0.071x, WD 301 mm, 2/3", C-Mount | $3,209.00 | 5 in stock | View |
| LS-VCM230-170-AL | 0.063x, WD 318 mm, 2/3", C-Mount | $3,579.00 | 4 in stock | View |
| LS-VCM230-190-AL | 0.06x, WD 330 mm, 2/3", C-mount | $3,819.00 | 5 in stock | View |
| LS-VCM230-240-AL | 0.044x, WD 410 mm, 2/3", C-Mount | $4,829.00 | 2 in stock | View |
| LS-VCM230-300-AL | 0.038x, WD 465 mm, 2/3", C-mount | $5,699.00 quote | 4 in stock | View |
