Telecentric lenses · 30 models · from $1,269.00

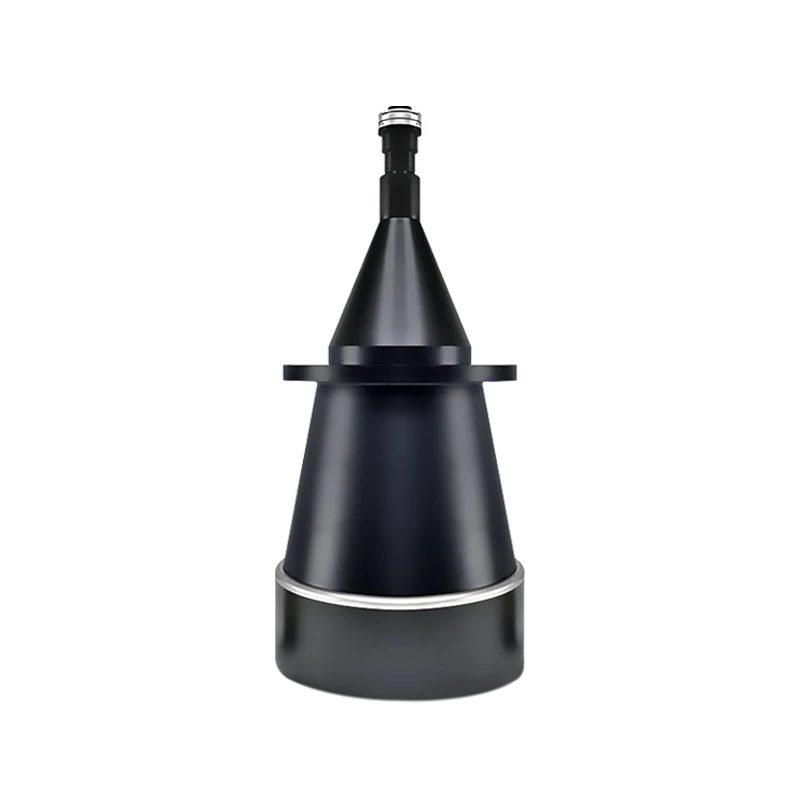

Bi-telecentric lens, large field (M11 / M16 / M19)
The Bi-telecentric lens, large field (M11 / M16 / M19) is a range of 30 telecentric lenses from LumaSpec Vision, from $1,269.00. It comes in 30 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.068x, WD 410 mm, 1", 0.073x, WD 320 mm, 2/3", 0.074x, WD 615 mm, 1/2", C-mount, 0.077x, WD 410 mm, 1.1", 0.08x, WD 280 mm, 2/3", 0.089x, WD 398 mm, 1", 0.09x, WD 260 mm, 2/3", 0.1x, WD 250 mm, 2/3", 0.1x, WD 398 mm, 1.1", 0.11x, WD 320 mm, 1", 0.12x, WD 250 mm, 2/3", 0.12x, WD 280 mm, 1", 0.123x, WD 320 mm, 1.1", 0.13x, WD 260 mm, 1", 0.136x, WD 280 mm, 1.1", 0.14x, WD 180 mm, 2/3" and 14 more |
|---|---|
| Image circle | Up to 8 mm, 8-11 mm, 11-16 mm, 16-22 mm |
| Type | Bi-telecentric |
| Magnification | Under 0.1x, 0.1-0.3x, 0.3-0.6x |
| Working distance | 110-200 mm, 200 mm + |
| Sensor format | 1/2", 2/3", 1", 1.1" - 1.2" |
| Mount | C-mount |
Features
- WD=615mm, Magnification 0.074X, DOF 111.49mm, Distortion TV<0.1%.
- Eliminate parallax and distortion .
- Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
- Suitable for mechanical parts measurement, electronic components inspection, glass inspection and other special applications.
All 30 models in the Bi-telecentric lens, large field (M11 / M16 / M19)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-HF120-042X11M19 | 0.42x, WD 120 mm, 1.1" | $1,269.00 | 5 in stock | View |
| LS-HF120-024X23M11 | 0.24x, WD 120 mm, 2/3" | $1,339.00 | 2 in stock | View |
| LS-HF120-036X11M16 | 0.36x, WD 120 mm, 1.1" | $1,389.00 | 3 in stock | View |
| LS-HF138-029X11M16 | 0.29x, WD 138 mm, 1.1" | $1,599.00 | 5 in stock | View |
| LS-HF160-028X11M19 | 0.28x, WD 160 mm, 1.1" | $1,629.00 | 4 in stock | View |
| LS-HF160-017X23M11 | 0.17x, WD 160 mm, 2/3" | $1,669.00 | 4 in stock | View |
| LS-HF160-025X11M16 | 0.25x, WD 160 mm, 1.1" | $1,759.00 | 4 in stock | View |
| LS-HF180-023X11M19 | 0.23x, WD 180 mm, 1.1" | $1,869.00 | 5 in stock | View |
| LS-HF180-014X23M11 | 0.14x, WD 180 mm, 2/3" | $1,899.00 | 2 in stock | View |
| LS-HF180-02X11M16 | 0.2x, WD 180 mm, 1.1" | $2,069.00 | 4 in stock | View |
| LS-HF250-02X11M19 | 0.2x, WD 250 mm, 1.1" | $2,069.00 | 4 in stock | View |
| LS-HF250-012X23M11 | 0.12x, WD 250 mm, 2/3" | $2,129.00 | 4 in stock | View |
| LS-HF250-018X11M16 | 0.18x, WD 250 mm, 1.1" | $2,229.00 | 3 in stock | View |
| LS-HF250-0168X11M19 | 0.168x, WD 250 mm, 1.1" | $2,349.00 | 4 in stock | View |
| LS-HF250-015X1M16 | 0.15x, WD 250 mm, 1" | $2,389.00 | 2 in stock | View |
| LS-HF615-0074X12 | 0.074x, WD 615 mm, 1/2", C-mount | $2,409.00 | 3 in stock | View |
| LS-HF250-01X23M11 | 0.1x, WD 250 mm, 2/3" | $2,439.00 | 4 in stock | View |
| LS-HF260-0153X11M19 | 0.153x, WD 260 mm, 1.1" | $2,529.00 | 4 in stock | View |
| LS-HF260-009X23M11 | 0.09x, WD 260 mm, 2/3" | $2,649.00 | 4 in stock | View |
| LS-HF260-013X1M16 | 0.13x, WD 260 mm, 1" | $2,669.00 | 4 in stock | View |
| LS-HF280-0136X11M19 | 0.136x, WD 280 mm, 1.1" | $2,779.00 | 3 in stock | View |
| LS-HF280-012X1M16 | 0.12x, WD 280 mm, 1" | $2,839.00 | 5 in stock | View |
| LS-HF280-008X23M11 | 0.08x, WD 280 mm, 2/3" | $2,909.00 | 4 in stock | View |
| LS-HF320-0123X11M19 | 0.123x, WD 320 mm, 1.1" | $3,009.00 | 5 in stock | View |
| LS-HF320-011X1M16 | 0.11x, WD 320 mm, 1" | $3,049.00 | 3 in stock | View |
| LS-HF320-0073X23M11 | 0.073x, WD 320 mm, 2/3" | $3,139.00 | 3 in stock | View |
| LS-HF398-01X11M19 | 0.1x, WD 398 mm, 1.1" | $3,579.00 | 3 in stock | View |
| LS-HF398-0089X1M16 | 0.089x, WD 398 mm, 1" | $3,639.00 | 2 in stock | View |
| LS-HF410-0077X11M19 | 0.077x, WD 410 mm, 1.1" | $4,479.00 | 3 in stock | View |
| LS-HF410-0068X1M16 | 0.068x, WD 410 mm, 1" | $4,589.00 | 4 in stock | View |
