Telecentric lenses · 40 models · from $589.00

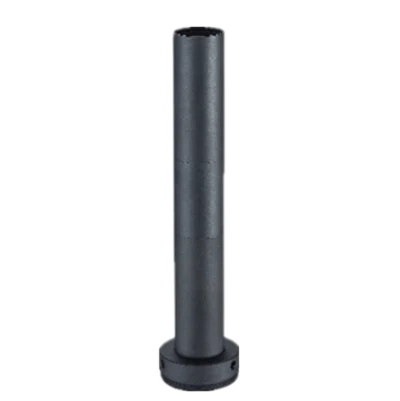

H Series Object-Side Telecentric lenses
The H Series Object-Side Telecentric lenses is a range of 40 telecentric lenses from LumaSpec Vision, from $589.00. It comes in 30 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.09x, 660 mm WD, 1/1.7", 0.12x, 250 mm WD, 1/2", 0.3x, 110 mm WD, 1/1.8", 0.4x, 113 mm WD, 1/2.5", 0.5x, 110 mm WD, 1/2", 0.5x, 190 mm WD, 1/2", 0.5x, 225 mm WD, 1/2.5", 0.5x, 350 mm WD, 1/2", 0.5x, 510 mm WD, 1/1.8", 0.5x, 65 mm WD, 1/2", 0.6x, 65 mm WD, 1/2", 0.7x, 70 mm WD, 1/1.8", 0.8x, 110 mm WD, 1/2", 0.8x, 130 mm WD, 1/2", 0.8x, 150 mm WD, 1/2", 0.8x, 65 mm WD, 1/2" and 14 more |
|---|---|
| Image circle | Up to 8 mm, 8-11 mm |
| Type | Object-side telecentric |
| Magnification | Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x + |
| Working distance | Under 65 mm, 65-110 mm, 110-200 mm, 200 mm + |
| Mount | C-mount |
| Sensor format | 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56" |
Features
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/1.8"
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2.5"
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/1.7"
All 40 models in the H Series Object-Side Telecentric lenses
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-HY-3-110 | 3x, 110 mm WD, 1/2" | $589.00 | 2 in stock | View |
| LS-HY-3-110C | 3x, 110 mm WD, 1/2" | $589.00 | 5 in stock | View |
| LS-HY-4-110 | 4x, 110 mm WD, 1/2" | $589.00 | 3 in stock | View |
| LS-HY-4-110C | 4x, 110 mm WD, 1/2" | $589.00 | 2 in stock | View |
| LS-HY-6-45C | 6x, 45 mm WD, 1/2" | $589.00 | 2 in stock | View |
| LS-HY-4-200C | 4x, 200 mm WD, 1/2" | $589.00 | 3 in stock | View |
| LS-HY-2-250 | 2x, 250 mm WD, 1/3" | $609.00 | 3 in stock | View |
| LS-HY-2-110 | 2x, 110 mm WD, 1/2" | $609.00 | 4 in stock | View |
| LS-HY-2-110C | 2x, 110 mm WD, 1/2" | $609.00 | 3 in stock | View |
| LS-HY-2-150 | 2x, 150 mm WD, 1/2" | $619.00 | 2 in stock | View |
| LS-HY-15-110 | 1.5x, 110 mm WD, 1/2" | $629.00 | 3 in stock | View |
| LS-HY-15-110C | 1.5x, 110 mm WD, 1/2" | $629.00 | 3 in stock | View |
| LS-HY-2-65C | 2x, 65 mm WD, 1/2" | $629.00 | 4 in stock | View |
| LS-HY-15-65 | 1.5x, 65 mm WD, 1/2" | $649.00 | 5 in stock | View |
| LS-HY-15-65C | 1.5x, 65 mm WD, 1/2" | $649.00 | 2 in stock | View |
| LS-HY-1-180C | 1x, 180 mm WD, 1/2" | $689.00 | 5 in stock | View |
| LS-HY-1-110 | 1x, 113 mm WD, 1/2" | $689.00 | 5 in stock | View |
| LS-HY-1-150 | 1x, 150 mm WD, 1/2" | $689.00 | 2 in stock | View |
| LS-HY-1-113C | 1x, 113 mm WD, 1/2" | $689.00 | 4 in stock | View |
| LS-HY-1-65CN | 1x, 65 mm WD, 1/2" | $709.00 | 3 in stock | View |
| LS-HY-1-65N | 1x, 65 mm WD, 1/2" | $709.00 | 5 in stock | View |
| LS-HY-08-150C | 0.8x, 150 mm WD, 1/2" | $729.00 | 3 in stock | View |
| LS-HY-08-150 | 0.8x, 150 mm WD, 1/2" | $729.00 | 2 in stock | View |
| LS-HY-08-130 | 0.8x, 130 mm WD, 1/2" | $739.00 | 2 in stock | View |
| LS-HY-08-130C | 0.8x, 130 mm WD, 1/2" | $739.00 | 2 in stock | View |
| LS-HY-08-65 | 0.8x, 65 mm WD, 1/2" | $739.00 | 3 in stock | View |
| LS-HY-08-65C | 0.8x, 110 mm WD, 1/2" | $789.00 | 3 in stock | View |
| LS-HY-06-65C | 0.6x, 65 mm WD, 1/2" | $809.00 | 2 in stock | View |
| LS-HY-07-70-V2 | 0.7x, 70 mm WD, 1/1.8" | $819.00 | 4 in stock | View |
| LS-HY-05-190 | 0.5x, 190 mm WD, 1/2" | $829.00 | 4 in stock | View |
| LS-HY-05-510C | 0.5x, 510 mm WD, 1/1.8" | $829.00 | 5 in stock | View |
| LS-HY-05-350C | 0.5x, 350 mm WD, 1/2" | $829.00 | 4 in stock | View |
| LS-HY-05-65 | 0.5x, 65 mm WD, 1/2" | $929.00 | 4 in stock | View |
| LS-HY-05-110C-V2 | 0.5x, 110 mm WD, 1/2" | $929.00 | 5 in stock | View |
| LS-HY-05-110-V2 | 0.5x, 110 mm WD, 1/2" | $929.00 | 3 in stock | View |
| LS-HY-03-110-MP | 0.3x, 110 mm WD, 1/1.8" | $969.00 | 5 in stock | View |
| LS-HY-05-225 | 0.5x, 225 mm WD, 1/2.5" | $999.00 | 2 in stock | View |
| LS-HY-04-113 | 0.4x, 113 mm WD, 1/2.5" | $1,039.00 | 2 in stock | View |
| LS-HY-012-250 | 0.12x, 250 mm WD, 1/2" | $2,269.00 | 4 in stock | View |
| LS-HY-009-660 | 0.09x, 660 mm WD, 1/1.7" | $5,699.00 quote | 3 in stock | View |
