Telecentric lenses

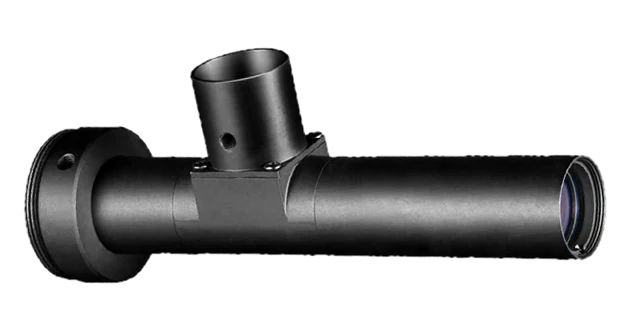

Object-Side Telecentric Lens, 1x, 65 mm WD, 1/2", coaxial light port (LS-HY-1-65CN)
Model LS-HY-1-65CN
Object-Side Telecentric Lens, 1x, 65 mm WD, 1/2", coaxial light port. Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
Features
- Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
Specifications
| Model | LS-HY-1-65CN |
|---|---|
| Magnification | 1 |
| Working distance | 65 mm |
| F-number | F12.1 |
| Image size | 1/2" |
| Depth of field | 1.9 mm |
| Distortion | ≤ 0.1% |
| Object-side resolution | 8.2 μm |
| Object-side telecentricity | ≤ 0.01° |
| Connector type | C-Mount |
| Coaxial light | Supported |
| Dimension | 80mm × Φ 26 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the H Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HY-2-110 | 2x, 110 mm WD, 1/2" | $609.00 | 4 in stock | View |
| LS-HY-2-110C | 2x, 110 mm WD, 1/2" | $609.00 | 3 in stock | View |
| LS-HY-2-150 | 2x, 150 mm WD, 1/2" | $619.00 | 2 in stock | View |
| LS-HY-15-110 | 1.5x, 110 mm WD, 1/2" | $629.00 | 3 in stock | View |
| LS-HY-15-110C | 1.5x, 110 mm WD, 1/2" | $629.00 | 3 in stock | View |
| LS-HY-2-65C | 2x, 65 mm WD, 1/2" | $629.00 | 4 in stock | View |
| LS-HY-15-65 | 1.5x, 65 mm WD, 1/2" | $649.00 | 5 in stock | View |
| LS-HY-15-65C | 1.5x, 65 mm WD, 1/2" | $649.00 | 2 in stock | View |
| LS-HY-1-180C | 1x, 180 mm WD, 1/2" | $689.00 | 5 in stock | View |
| LS-HY-1-110 | 1x, 113 mm WD, 1/2" | $689.00 | 5 in stock | View |
| LS-HY-1-150 | 1x, 150 mm WD, 1/2" | $689.00 | 2 in stock | View |
| LS-HY-1-113C | 1x, 113 mm WD, 1/2" | $689.00 | 4 in stock | View |
| LS-HY-1-65N | 1x, 65 mm WD, 1/2" | $709.00 | 5 in stock | View |
| LS-HY-08-150C | 0.8x, 150 mm WD, 1/2" | $729.00 | 3 in stock | View |
| LS-HY-08-150 | 0.8x, 150 mm WD, 1/2" | $729.00 | 2 in stock | View |
| LS-HY-08-130 | 0.8x, 130 mm WD, 1/2" | $739.00 | 2 in stock | View |
| LS-HY-08-130C | 0.8x, 130 mm WD, 1/2" | $739.00 | 2 in stock | View |
| LS-HY-08-65 | 0.8x, 65 mm WD, 1/2" | $739.00 | 3 in stock | View |
| LS-HY-08-65C | 0.8x, 110 mm WD, 1/2" | $789.00 | 3 in stock | View |
| LS-HY-06-65C | 0.6x, 65 mm WD, 1/2" | $809.00 | 2 in stock | View |
| LS-HY-07-70-V2 | 0.7x, 70 mm WD, 1/1.8" | $819.00 | 4 in stock | View |
| LS-HY-05-190 | 0.5x, 190 mm WD, 1/2" | $829.00 | 4 in stock | View |
| LS-HY-05-510C | 0.5x, 510 mm WD, 1/1.8" | $829.00 | 5 in stock | View |
| LS-HY-05-350C | 0.5x, 350 mm WD, 1/2" | $829.00 | 4 in stock | View |
See all 40 models in the H Series Object-Side Telecentric lenses series
