Home / Lenses / Telecentric lenses / H Series Object-Side Telecentric lenses

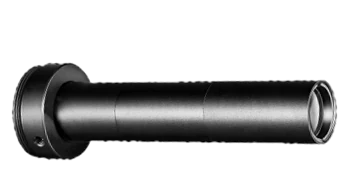

Object-Side Telecentric Lens, 1x, 150 mm WD, 1/2" (LS-HY-1-150)

Telecentric lenses

Object-Side Telecentric Lens, 1x, 150 mm WD, 1/2" (LS-HY-1-150)

Model LS-HY-1-150

Object-Side Telecentric Lens, 1x, 150 mm WD, 1/2". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"

$689.00 USDIn stock · 2 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-HY-1-1503D model (STEP, ZIP) - LS-HY-1-150

Features

  • Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"

Specifications

ModelLS-HY-1-150
Magnification1
Working distance150 mm
F-numberF23.5
Image size1/2"
Depth of field1.9 mm
Distortion≤ 0.2%
Object-side resolution15.8 μm
Object-side telecentricity≤ 0.01°
Connector typeC-Mount
Coaxial lightNot supported
Dimension90.1 mm × Φ26 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the H Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-HY-4-200C4x, 200 mm WD, 1/2" $589.00 3 in stockView
LS-HY-2-2502x, 250 mm WD, 1/3" $609.00 3 in stockView
LS-HY-2-1102x, 110 mm WD, 1/2" $609.00 4 in stockView
LS-HY-2-110C2x, 110 mm WD, 1/2" $609.00 3 in stockView
LS-HY-2-1502x, 150 mm WD, 1/2" $619.00 2 in stockView
LS-HY-15-1101.5x, 110 mm WD, 1/2" $629.00 3 in stockView
LS-HY-15-110C1.5x, 110 mm WD, 1/2" $629.00 3 in stockView
LS-HY-2-65C2x, 65 mm WD, 1/2" $629.00 4 in stockView
LS-HY-15-651.5x, 65 mm WD, 1/2" $649.00 5 in stockView
LS-HY-15-65C1.5x, 65 mm WD, 1/2" $649.00 2 in stockView
LS-HY-1-180C1x, 180 mm WD, 1/2" $689.00 5 in stockView
LS-HY-1-1101x, 113 mm WD, 1/2" $689.00 5 in stockView
LS-HY-1-113C1x, 113 mm WD, 1/2" $689.00 4 in stockView
LS-HY-1-65CN1x, 65 mm WD, 1/2" $709.00 3 in stockView
LS-HY-1-65N1x, 65 mm WD, 1/2" $709.00 5 in stockView
LS-HY-08-150C0.8x, 150 mm WD, 1/2" $729.00 3 in stockView
LS-HY-08-1500.8x, 150 mm WD, 1/2" $729.00 2 in stockView
LS-HY-08-1300.8x, 130 mm WD, 1/2" $739.00 2 in stockView
LS-HY-08-130C0.8x, 130 mm WD, 1/2" $739.00 2 in stockView
LS-HY-08-650.8x, 65 mm WD, 1/2" $739.00 3 in stockView
LS-HY-08-65C0.8x, 110 mm WD, 1/2" $789.00 3 in stockView
LS-HY-06-65C0.6x, 65 mm WD, 1/2" $809.00 2 in stockView
LS-HY-07-70-V20.7x, 70 mm WD, 1/1.8" $819.00 4 in stockView
LS-HY-05-1900.5x, 190 mm WD, 1/2" $829.00 4 in stockView

See all 40 models in the H Series Object-Side Telecentric lenses series
