Home / Lenses / Telecentric lenses / Telecentric lens, WD 110-220 mm ( 110 - 220 mm)

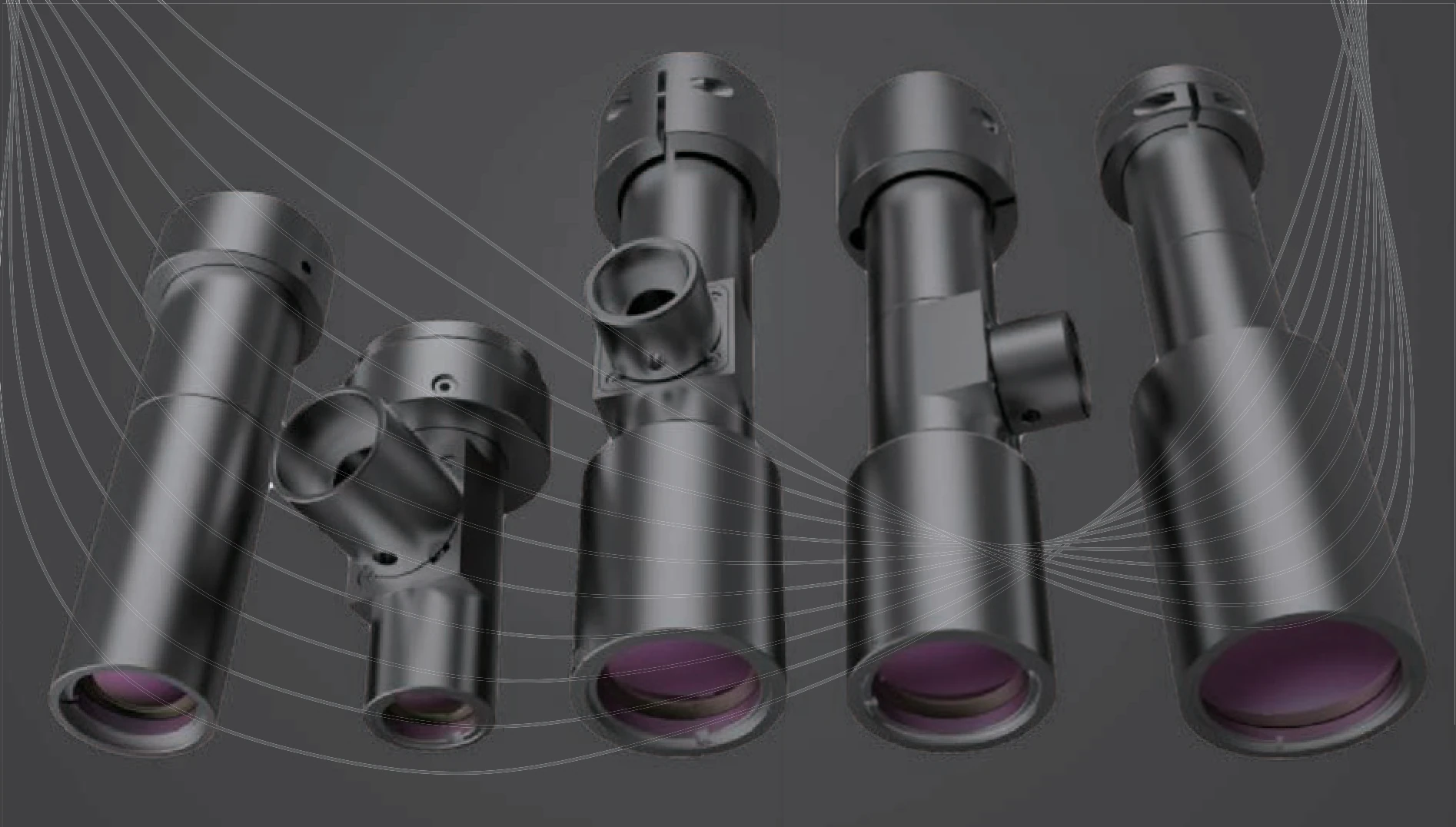

Telecentric lens, WD 110-220 mm ( 110 - 220 mm)

Telecentric lenses · 16 models · from $569.00

Telecentric lens, WD 110-220 mm ( 110 - 220 mm)

The Telecentric lens, WD 110-220 mm ( 110 - 220 mm) is a range of 16 telecentric lenses from LumaSpec Vision, from $569.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions0.22x, WD 220 mm, 2/3", C-Mount, 0.3x, WD 180 mm, 1/1.8", C-Mount, 0.3x, WD 180 mm, 2/3", C-Mount, 0.3x, WD 220 mm, 2/3", C-Mount, 0.5x, WD 220 mm, 1", C-Mount, 1x, WD 110 mm, 1.1", C-Mount, 1.5x, WD 110 mm, 1.1", C-Mount, 2x, WD 110 mm, 1.1", C-Mount, 3x, WD 110 mm, 1.1", C-Mount
MountC-mount
Image circle8-11 mm, 11-16 mm, 16-22 mm
TypeObject-side telecentric
Coaxial lightBuilt-in coaxial light, No coaxial port
Magnification0.1-0.3x, 0.3-0.6x, 1-2x, 2x +
Working distance110-200 mm, 200 mm +
Sensor format1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2"

Features

  • Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnification / CCD for selection
  • Perfect image and supports all kinds of Mega camera
  • High contrast, low distortion, high resolution, compact design with coaxial illumination options
  • Widely used in high-precision visual positioning and other occasions

Typical uses

  • High-precision visual positioning

All 16 models in the Telecentric lens, WD 110-220 mm ( 110 - 220 mm)

ModelSizePriceAvailabilityLink
LS-VDH30-110C-1113x, WD 110 mm, 1.1", C-Mount $569.00 4 in stockView
LS-VDH30-110-1113x, WD 110 mm, 1.1", C-Mount $569.00 4 in stockView
LS-VDH20-110C-1112x, WD 110 mm, 1.1", C-Mount $569.00 2 in stockView
LS-VDH10-110-1111x, WD 110 mm, 1.1", C-Mount $569.00 3 in stockView
LS-VDH10-110C-1111x, WD 110 mm, 1.1", C-Mount $569.00 2 in stockView
LS-VDH15-110-1111.5x, WD 110 mm, 1.1", C-Mount $569.00 2 in stockView
LS-VDH15-110C-1111.5x, WD 110 mm, 1.1", C-Mount $569.00 2 in stockView
LS-VDH20-110-1112x, WD 110 mm, 1.1", C-Mount $569.00 4 in stockView
LS-VCM022-220-230-AL0.22x, WD 220 mm, 2/3", C-Mount $589.00 5 in stockView
LS-VDH03-180-2300.3x, WD 180 mm, 2/3", C-Mount $589.00 4 in stockView
LS-VDH03-180C-2300.3x, WD 180 mm, 2/3", C-Mount $589.00 5 in stockView
LS-VDH03-220-2300.3x, WD 220 mm, 2/3", C-Mount $589.00 3 in stockView
LS-VDH03-220C-2300.3x, WD 220 mm, 2/3", C-Mount $589.00 3 in stockView
LS-VDH03-180-1180.3x, WD 180 mm, 1/1.8", C-Mount $969.00 3 in stockView
LS-VDH05-220-1100.5x, WD 220 mm, 1", C-Mount $999.00 3 in stockView
LS-VDH05-220C-1100.5x, WD 220 mm, 1", C-Mount $999.00 2 in stockView
