Telecentric lenses · 15 models · from $729.00

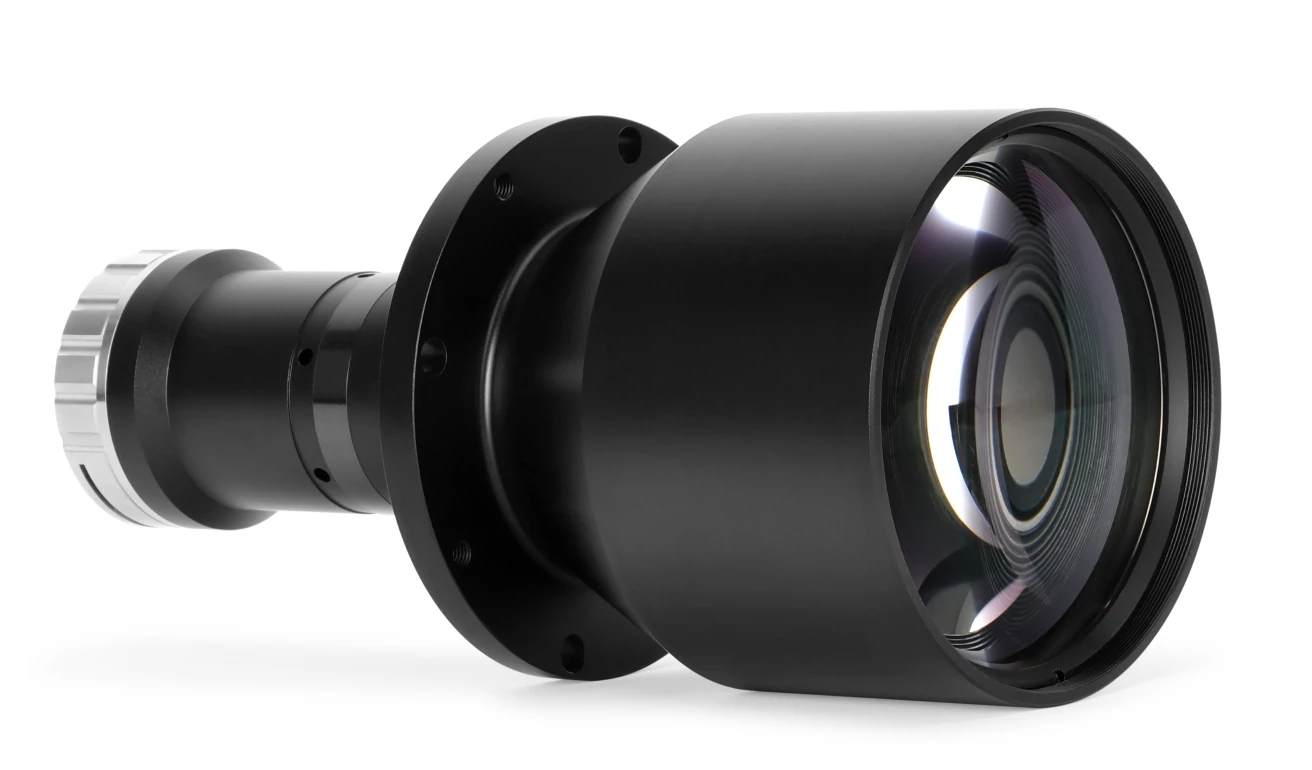

Bi-telecentric lens for 23x23mm sensor (25LM series)
The Bi-telecentric lens for 23x23mm sensor (25LM series) is a range of 15 telecentric lenses from LumaSpec Vision, from $729.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.12x, WD 410 mm, F/M58-mount, 0.17x, WD 320 mm, F/M58-mount, 0.19x, WD 300 mm, F/M58-mount, 0.21x, WD 285 mm, F/M58-mount, 0.26x, WD 250 mm, F/M58-mount, 0.31x, WD 250 mm, F/M58-mount, 0.36x, WD 230 mm, F/M58-mount, 0.45x, WD 158 mm, F/M58-mount, 0.55x, WD 250 mm, F/M58-mount, 0.63x, WD 130 mm, F/M58-mount, 0.68x, WD 120 mm, F/M58-mount, 0.8x, WD 110 mm, F/M58-mount, 0.9x, WD 175 mm, F/M58-mount, 1.4x, WD 110 mm, F/M58-mount, 1.75x, WD 110 mm, F/M58-mount |
|---|---|
| Mount | F-mount |
| Image circle | 22-30 mm |
| Type | Bi-telecentric |
| Coaxial light | No coaxial port |
| Magnification | 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x |
| Working distance | 110-200 mm, 200 mm + |
| Sensor format | 4/3" - APS-C |
Features
- Maximum support for a 23 x 23 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- 25 million pixels
- National technology patent
Typical uses
- Imaging products with high and low differences (large depth of field)
All 15 models in the Bi-telecentric lens for 23x23mm sensor (25LM series)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-HF110-25LM14 | 1.4x, WD 110 mm, F/M58-mount | $729.00 | 3 in stock | View |
| LS-HF175-25LM09 | 0.9x, WD 175 mm, F/M58-mount | $819.00 | 5 in stock | View |
| LS-HF110-25LM08 | 0.8x, WD 110 mm, F/M58-mount | $859.00 | 2 in stock | View |
| LS-HF120-25LM068 | 0.68x, WD 120 mm, F/M58-mount | $909.00 | 2 in stock | View |
| LS-HF130-25LM063 | 0.63x, WD 130 mm, F/M58-mount | $939.00 | 4 in stock | View |
| LS-HF250-25LM055 | 0.55x, WD 250 mm, F/M58-mount | $989.00 | 2 in stock | View |
| LS-HF158-25LM045 | 0.45x, WD 158 mm, F/M58-mount | $1,089.00 | 5 in stock | View |
| LS-HF230-25LM036 | 0.36x, WD 230 mm, F/M58-mount | $1,229.00 | 3 in stock | View |
| LS-HF250-25LM31 | 0.31x, WD 250 mm, F/M58-mount | $1,329.00 | 3 in stock | View |
| LS-HF250-25LM026 | 0.26x, WD 250 mm, F/M58-mount | $1,489.00 | 2 in stock | View |
| LS-HF110-25LM175 | 1.75x, WD 110 mm, F/M58-mount | $1,549.00 | 5 in stock | View |
| LS-HF285-25LM021 | 0.21x, WD 285 mm, F/M58-mount | $1,709.00 | 5 in stock | View |
| LS-HF300-25LM019 | 0.19x, WD 300 mm, F/M58-mount | $1,829.00 | 4 in stock | View |
| LS-HF320-25LM017 | 0.17x, WD 320 mm, F/M58-mount | $1,979.00 | 4 in stock | View |
| LS-HF410-25LM012 | 0.12x, WD 410 mm, F/M58-mount | $2,569.00 | 3 in stock | View |
