Telecentric lenses · 16 models · from $749.00

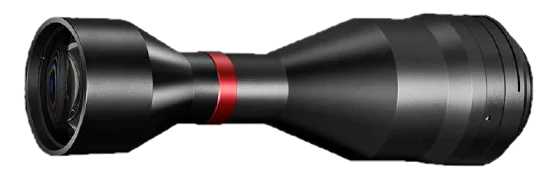

L Series Bi-Telecentric lenses
The L Series Bi-Telecentric lenses is a range of 16 telecentric lenses from LumaSpec Vision, from $749.00. It comes in 13 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.163x, 410 mm WD, 0.205x, 330 mm WD, 0.39x, 238 mm WD, 0.489x, 208 mm WD, 0.497x, 288 mm WD, 0.696x, 138 mm WD, 0.738x, 228 mm WD, 0.929x, 118 mm WD, 1x, 102 mm WD, 1x, 162 mm WD, 1.083x, 110 mm WD, 1.65x, 40 mm WD, 2x, 102 mm WD |
|---|---|
| Image circle | 30-45 mm, 45-60 mm, 60-90 mm |
| Type | Bi-telecentric |
| Magnification | 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x + |
| Working distance | Under 65 mm, 65-110 mm, 110-200 mm, 200 mm + |
| Mount | M58, M72, F-mount |
| Sensor format | APS-H / Full frame, Medium / large |
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to ф39 mm
- Supports cameras up to ф44 mm
- Supports cameras up to ф62 mm
- Supports cameras up to ф88 mm
- Supports cameras up to ф67.8 mm
- Supports cameras up to ф59 mm
All 16 models in the L Series Bi-Telecentric lenses
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-LBT-165-40-M58 | 1.65x, 40 mm WD | $749.00 | 4 in stock | View |
| LS-LBT-1083-110-M58 | 1.083x, 110 mm WD | $799.00 | 3 in stock | View |
| LS-LBT-2-102-G-M58 | 2x, 102 mm WD | $929.00 | 5 in stock | View |
| LS-LBT-0489-208-M72-10.1 | 0.489x, 208 mm WD | $1,279.00 | 3 in stock | View |
| LS-LBT-0929-118-M72-19.5 | 0.929x, 118 mm WD | $1,279.00 | 3 in stock | View |
| LS-LBT-0929-118-M58 | 0.929x, 118 mm WD | $1,279.00 | 3 in stock | View |
| LS-LBT-1-102-M72 | 1x, 102 mm WD | $1,309.00 | 5 in stock | View |
| LS-LBT-0696-138-M58 | 0.696x, 138 mm WD | $1,379.00 | 4 in stock | View |
| LS-LBT-1-162-M72-19.5 | 1x, 162 mm WD | $1,649.00 | 2 in stock | View |
| LS-LBT-1-162-G-M72 | 1x, 162 mm WD | $1,649.00 | 5 in stock | View |
| LS-LBT-0497-288-M72-19.5 | 0.497x, 288 mm WD | $1,929.00 | 4 in stock | View |
| LS-LBT-0738-228-M58 | 0.738x, 228 mm WD | $1,929.00 | 4 in stock | View |
| LS-LBT-039-238-F | 0.39x, 238 mm WD | $2,439.00 quote | 4 in stock | View |
| LS-LBT-0205-330-F | 0.205x, 330 mm WD | $3,819.00 quote | 5 in stock | View |
| LS-LBT-0163-410-F | 0.163x, 410 mm WD | $4,669.00 quote | 2 in stock | View |
| LS-LBT-0163-410-M58 | 0.163x, 410 mm WD | $4,669.00 quote | 2 in stock | View |
