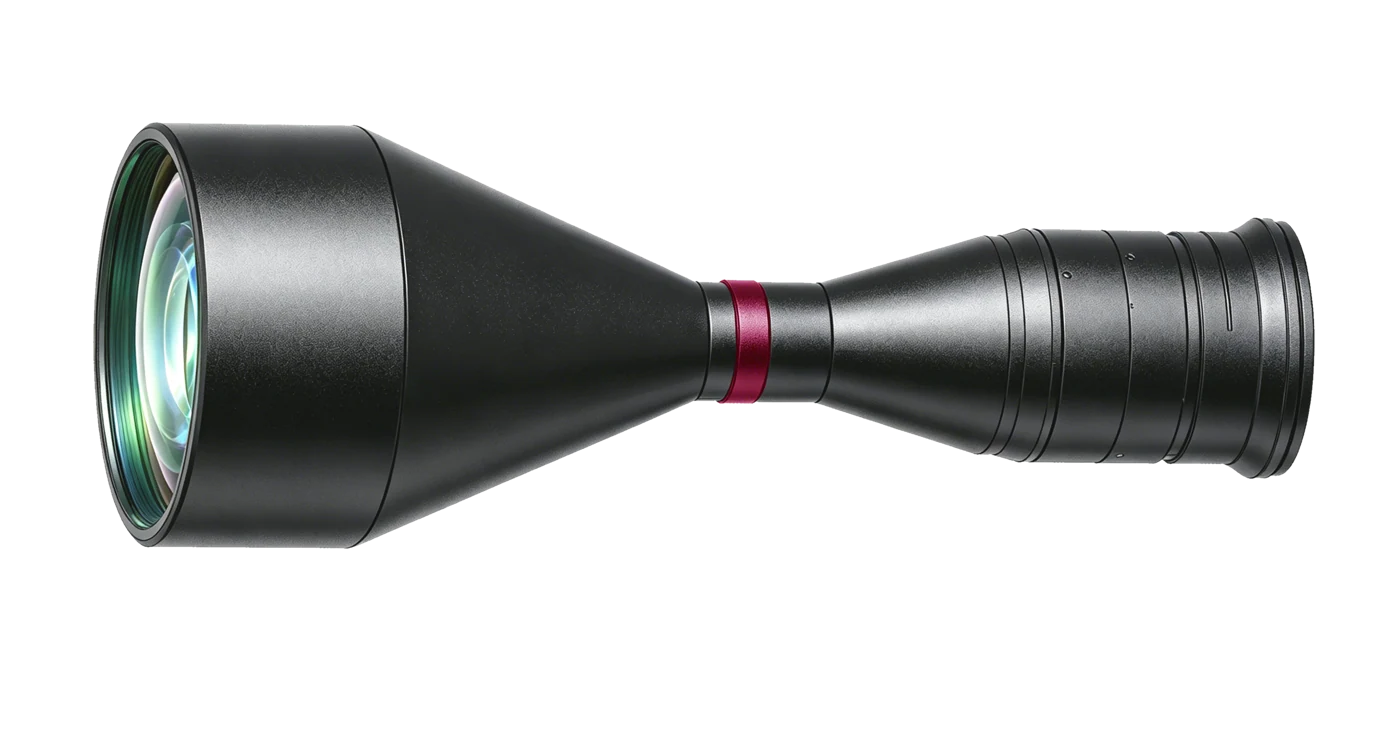

Bi-Telecentric Lens, 0.489x, 208 mm WD (LS-LBT-0489-208-M72-10.1)
Model LS-LBT-0489-208-M72-10.1
Bi-Telecentric Lens, 0.489x, 208 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to ф44 mm
Specifications
| Model | LS-LBT-0489-208-M72-10.1 |
|---|---|
| Magnification | 0.489 |
| Working distance | 208mm |
| F-number | F32.4 |
| Image size | Φ44mm |
| Depth of field | ±3.3mm@F20 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 10.8um |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | M72-Mount |
| Coaxial light | Not supported |
| Dimension | 331 mm × Φ120 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
