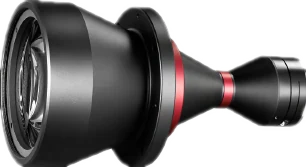

Bi-Telecentric Lens, 0.39x, 238 mm WD (LS-LBT-039-238-F)
Model LS-LBT-039-238-F
Bi-Telecentric Lens, 0.39x, 238 mm WD. High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to ф39 mm
Specifications
| Model | LS-LBT-039-238-F |
|---|---|
| Magnification | 0.39 |
| Working distance | 238mm |
| F-number | F9.2 |
| Image size | Φ39mm |
| Depth of field | ±4.2mm@F16 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 12.6um |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | F-Mount |
| Coaxial light | Not supported |
| Dimension | 362.9 mm × Φ142 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the L Series Bi-Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-LBT-165-40-M58 | 1.65x, 40 mm WD | $749.00 | 4 in stock | View |
| LS-LBT-1083-110-M58 | 1.083x, 110 mm WD | $799.00 | 3 in stock | View |
| LS-LBT-2-102-G-M58 | 2x, 102 mm WD | $929.00 | 5 in stock | View |
| LS-LBT-0489-208-M72-10.1 | 0.489x, 208 mm WD | $1,279.00 | 3 in stock | View |
| LS-LBT-0929-118-M72-19.5 | 0.929x, 118 mm WD | $1,279.00 | 3 in stock | View |
| LS-LBT-0929-118-M58 | 0.929x, 118 mm WD | $1,279.00 | 3 in stock | View |
| LS-LBT-1-102-M72 | 1x, 102 mm WD | $1,309.00 | 5 in stock | View |
| LS-LBT-0696-138-M58 | 0.696x, 138 mm WD | $1,379.00 | 4 in stock | View |
| LS-LBT-1-162-M72-19.5 | 1x, 162 mm WD | $1,649.00 | 2 in stock | View |
| LS-LBT-1-162-G-M72 | 1x, 162 mm WD | $1,649.00 | 5 in stock | View |
| LS-LBT-0497-288-M72-19.5 | 0.497x, 288 mm WD | $1,929.00 | 4 in stock | View |
| LS-LBT-0738-228-M58 | 0.738x, 228 mm WD | $1,929.00 | 4 in stock | View |
| LS-LBT-0205-330-F | 0.205x, 330 mm WD | $3,819.00 | 5 in stock | View |
| LS-LBT-0163-410-F | 0.163x, 410 mm WD | $4,669.00 | 2 in stock | View |
| LS-LBT-0163-410-M58 | 0.163x, 410 mm WD | $4,669.00 | 2 in stock | View |
