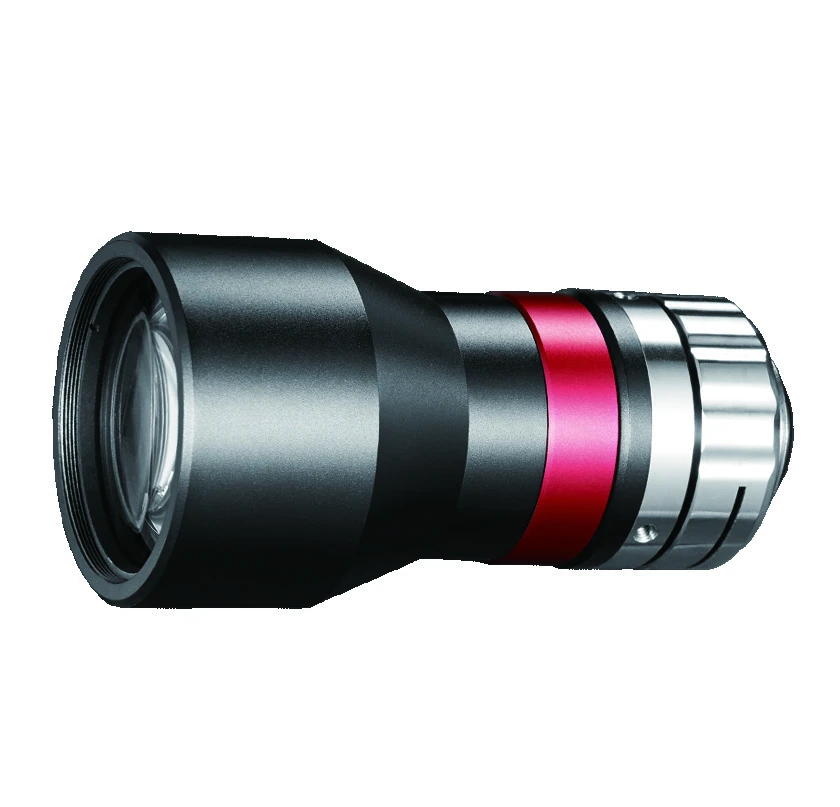

Bi-telecentric lens for 1/2.3" cameras (VCM120 series)

The Bi-telecentric lens for 1/2.3" cameras (VCM120 series) is a range of 20 telecentric lenses from LumaSpec Vision, from $999.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions	C-mount, 0.027x, WD 465 mm, 1/2", C-mount, 0.033x, WD 410 mm, 1/2", C-Mount, 0.047x, WD 318 mm, 1/2", C-Mount, 0.054x, WD 301 mm, 1/2", C-Mount, 0.059x, WD 288 mm, 1/2", C-Mount, 0.067x, WD 280 mm, 1/2", C-mount, 0.072x, WD 251 mm, 1/2", C-Mount, 0.086x, WD 254 mm, 1/2", C-Mount, 0.089x, WD 208 mm, 1/2", C-mount, 0.1x, WD 229 mm, 1/2", C-Mount, 0.112x, WD 178 mm, 1/2", C-Mount, 0.125x, WD 159 mm, 1/2", C-Mount, 0.126x, WD 187 mm, 1/2", C-Mount, 0.144x, WD 138 mm, 1/2", C-Mount, 0.167x, WD 128 mm, 1/2", C-Mount and 4 more
Mount	C-mount
Image circle	Up to 8 mm
Type	Bi-telecentric
Magnification	Under 0.1x, 0.1-0.3x, 0.3-0.6x
Working distance	65-110 mm, 110-200 mm, 200 mm +
Sensor format	1/2"

Features

Matrix design with extremely high imaging quality
Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
More than 168 standard types and hundreds of customised items
Excellent F-number, high telecentricity, extremely low distortion, very large DoF
Each lens comes with an imaging quality test report
Lens mount with conveniently adjustable flange distance (AL)
Matrix-design with extremely high imaging quality

Typical uses

Industrial imaging applications (standard FOV 26 to 240 mm)

All 20 models in the Bi-telecentric lens for 1/2.3" cameras (VCM120 series)

Model	Size	Price	Availability	Link
LS-VCM120-26-AL	0.309x, WD 72 mm, 1/2", C-Mount	$999.00	2 in stock	View
LS-VCM120-36-AL	0.222x, WD 111 mm, 1/2", C-Mount	$1,169.00	4 in stock	View
LS-VCM120-42-AL	0.192x, WD 119 mm, 1/2", C-Mount	$1,279.00	5 in stock	View
LS-VCM120-48-AL	0.167x, WD 128 mm, 1/2", C-Mount	$1,379.00	2 in stock	View
LS-VCM120-48S-AL	0.167x, WD 138 mm, 1/2", C-mount	$1,379.00	3 in stock	View
LS-VCM120-56-AL	0.144x, WD 138 mm, 1/2", C-Mount	$1,519.00	4 in stock	View
LS-VCM120-64-AL	0.126x, WD 187 mm, 1/2", C-Mount	$1,649.00	3 in stock	View
LS-VCM120-64P-AL	0.125x, WD 159 mm, 1/2", C-Mount	$1,649.00	3 in stock	View
LS-VCM120-72-AL	0.112x, WD 178 mm, 1/2", C-Mount	$1,789.00	3 in stock	View
LS-VCM120-80-AL	0.1x, WD 229 mm, 1/2", C-Mount	$1,929.00	5 in stock	View
LS-VCM120-90-AL	0.089x, WD 208 mm, 1/2", C-mount	$2,099.00	3 in stock	View
LS-VCM120-100-AL	0.086x, WD 254 mm, 1/2", C-Mount	$2,149.00	2 in stock	View
LS-VCM120-110-AL	0.072x, WD 251 mm, 1/2", C-Mount	$2,459.00	4 in stock	View
LS-VCM120-120-AL	0.067x, WD 280 mm, 1/2", C-mount	$2,609.00	2 in stock	View
LS-VCM120-136-AL	0.059x, WD 288 mm, 1/2", C-Mount	$2,889.00	2 in stock	View
LS-VCM120-150-AL	0.054x, WD 301 mm, 1/2", C-Mount	$3,089.00	4 in stock	View
LS-VCM120-190-AL	C-mount	$3,189.00	5 in stock	View
LS-VCM120-170-AL	0.047x, WD 318 mm, 1/2", C-Mount	$3,459.00	4 in stock	View
LS-VCM120-240-AL	0.033x, WD 410 mm, 1/2", C-Mount	$4,669.00	5 in stock	View
LS-VCM120-300-AL	0.027x, WD 465 mm, 1/2", C-mount	$5,699.00 quote	5 in stock	View
