Telecentric lenses

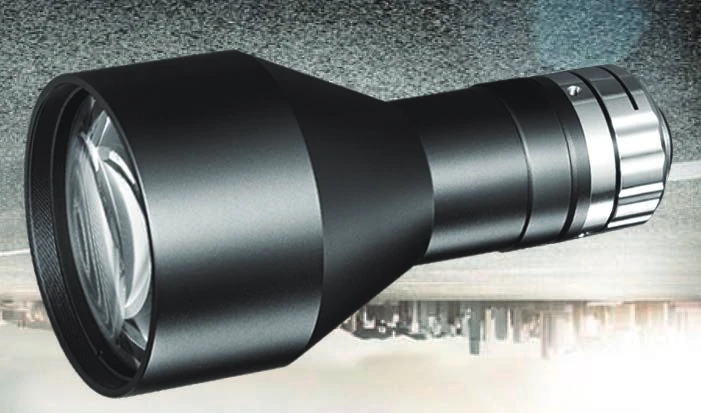

Bi-telecentric lens for 1/2.3" cameras (VCM120 series), 0.167x, WD 128 mm, 1/2", C-Mount (LS-VCM120-48-AL)
Model LS-VCM120-48-AL
Bi-telecentric lens series with matrix design and extremely high imaging quality; standard FOV from 26 to 240 mm. Each lens comes with an imaging quality test report.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
Specifications
| Model | LS-VCM120-48-AL |
|---|---|
| Max sensor size (dia. mm) | 8(1/2") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| FOV (dia. mm) | 48 |
| Mag. (x) | 0.167 |
| WD (mm) | 128±2 |
| F/# | 4.5 |
| MTF30 (lp/mm) | >240 |
| DoF (mm) | ±2.5 |
| I/O (mm) | 269 |
| Length (mm) | 123.1 |
| Weight (kg) | 0.43 |
| Mount shown in drawing | C |
| Field of view on 1/2.3" 9J003 (6.44x4.62) (mm) | 38.5 x 27.6 |
| Magnification (x) | 0.167 |
| Working distance (mm) | 128±2 |
| Depth of field (mm) | ±2.5 |
| Field of view on 1/2.3" 9J003 (6.44x4.62) (mm x mm) | 38.5x27.6 |
| Model (spec table) | 120-48-AL |
| Detector | 1/2" |
| Mag | 0.167x |
| FOV | 48mm |
| WD | 128mm |
| Sensor format | 1/2" |
| Aperture | F/4.5 |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bi-telecentric lens for 1/2.3" cameras (VCM120 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM120-26-AL | 0.309x, WD 72 mm, 1/2", C-Mount | $319.00 | 2 in stock | View |
| LS-VCM120-36-AL | 0.222x, WD 111 mm, 1/2", C-Mount | $359.00 | 4 in stock | View |
| LS-VCM120-42-AL | 0.192x, WD 119 mm, 1/2", C-Mount | $389.00 | 5 in stock | View |
| LS-VCM120-56-AL | 0.144x, WD 138 mm, 1/2", C-Mount | $479.00 | 4 in stock | View |
| LS-VCM120-64-AL | 0.126x, WD 187 mm, 1/2", C-Mount | $539.00 | 3 in stock | View |
| LS-VCM120-64P-AL | 0.125x, WD 159 mm, 1/2", C-Mount | $539.00 | 3 in stock | View |
| LS-VCM120-72-AL | 0.112x, WD 178 mm, 1/2", C-Mount | $629.00 | 3 in stock | View |
| LS-VCM120-80-AL | 0.1x, WD 229 mm, 1/2", C-Mount | $719.00 | 5 in stock | View |
| LS-VCM120-100-AL | 0.086x, WD 254 mm, 1/2", C-Mount | $919.00 | 2 in stock | View |
| LS-VCM120-110-AL | 0.072x, WD 251 mm, 1/2", C-Mount | $1,099.00 | 4 in stock | View |
| LS-VCM120-136-AL | 0.059x, WD 288 mm, 1/2", C-Mount | $1,279.00 | 2 in stock | View |
| LS-VCM120-150-AL | 0.054x, WD 301 mm, 1/2", C-Mount | $1,469.00 | 4 in stock | View |
| LS-VCM120-170-AL | 0.047x, WD 318 mm, 1/2", C-Mount | $2,239.00 | 4 in stock | View |
| LS-VCM120-240-AL | 0.033x, WD 410 mm, 1/2", C-Mount | $3,269.00 | 5 in stock | View |
