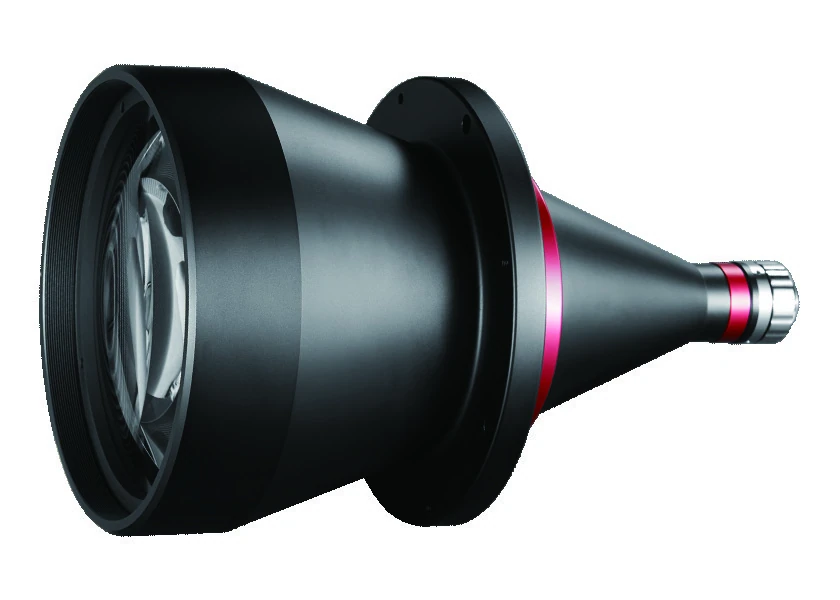

Bi-telecentric lens for 1/2.3" cameras (VCM120 series), 0.027x, WD 465 mm, 1/2", C-mount (LS-VCM120-300-AL)
Model LS-VCM120-300-AL
Bi-telecentric lens series with matrix design and extremely high imaging quality; standard FOV from 26 to 240 mm. Each lens comes with an imaging quality test report.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
Specifications
| Model | LS-VCM120-300-AL |
|---|---|
| Max sensor size (dia. mm) | 8(1/2") |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | C |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | C-Mount |
| Magnification (x) | 0.027 |
| Object Field of View (dia. mm) | 300 |
| Working Distance (mm) | 465±6 |
| Best Aperture (F/#) | 4.2 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >205 |
| Depth of Field (mm) | ±603@F11 |
| Length of I/O (mm) | 1105±6 |
| Field of view with 9J003 (6.44x4.62 sensor) (mm x mm) | 238.5x171.1 |
| Length (mm) | 622.2 |
| Weight (kg) | 46.5 |
| Compatible telecentric led lighting | LS-VCL-300-XW-Y |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
