Telecentric lenses · 10 models · from $629.00

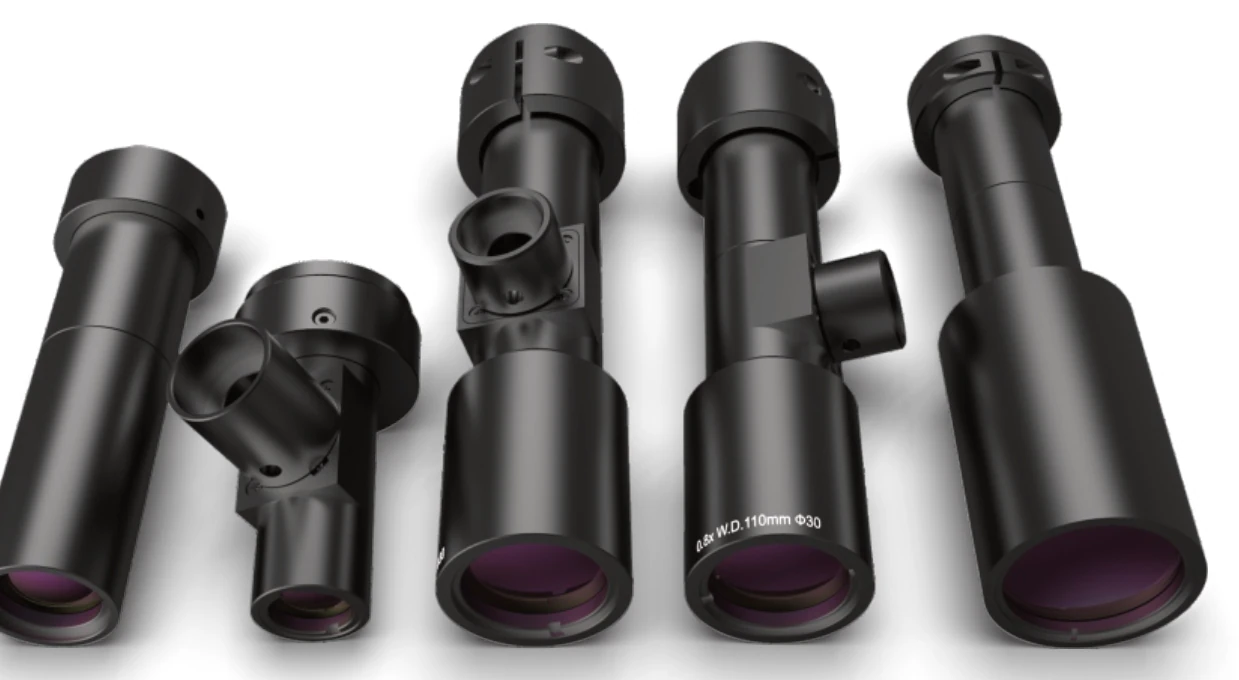

Standard 5 MP telecentric lens
The Standard 5 MP telecentric lens is a range of 10 telecentric lenses from LumaSpec Vision, from $629.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.5x, WD 110 mm, 2/3", C-mount, 0.8x, WD 110 mm, 2/3", C-mount, 1x, WD 110 mm, 2/3", C-mount, 1.5x, WD 40 mm, 1/1.8", C-mount, 2x, WD 40 mm, 1/1.8", C-mount |
|---|---|
| Mount | C-mount |
| Resolution | 5 MP |
| Image circle | 8-11 mm |
| Type | Object-side telecentric |
| Coaxial light | Built-in coaxial light, No coaxial port |
| Magnification | 0.3-0.6x, 0.6-1x, 1-2x, 2x + |
| Working distance | Under 65 mm, 110-200 mm |
| Sensor format | 1/1.8" - 1/1.56", 2/3" |
Features
- Low distortion < 0.02%
- 16mm outer diameter, compact structure, adapted to narrow space
- Supporting magnification: 2.0X, 1.5X, 1.0X, 0.8X, 0.5X
- TL model is not a coaxial illumination telecentric lens; TC model means coaxial illumination telecentric lens
- Low distortion 0.02%
Typical uses
- AOI 3D inspection
- Integrated circuit package
- Semiconductor, printing circuit inspection
- Medicine, medical instrument inspection
- Auto parts inspection
- Intergrated circuit pakage
All 10 models in the Standard 5 MP telecentric lens
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-TL20040-5MP | 2x, WD 40 mm, 1/1.8", C-mount | $629.00 | 2 in stock | View |
| LS-TC20040-5MP | 2x, WD 40 mm, 1/1.8", C-mount | $629.00 | 4 in stock | View |
| LS-TL15040-5MP | 1.5x, WD 40 mm, 1/1.8", C-mount | $659.00 | 5 in stock | View |
| LS-TC15040-5MP | 1.5x, WD 40 mm, 1/1.8", C-mount | $659.00 | 3 in stock | View |
| LS-TL10110-5MP | 1x, WD 110 mm, 2/3", C-mount | $739.00 | 2 in stock | View |
| LS-TC10110-5MP | 1x, WD 110 mm, 2/3", C-mount | $739.00 | 2 in stock | View |
| LS-TL08110-5MP | 0.8x, WD 110 mm, 2/3", C-mount | $789.00 | 4 in stock | View |
| LS-TC08110-5MP | 0.8x, WD 110 mm, 2/3", C-mount | $789.00 | 2 in stock | View |
| LS-TL05110-5MP | 0.5x, WD 110 mm, 2/3", C-mount | $929.00 | 2 in stock | View |
| LS-TC05110-5MP | 0.5x, WD 110 mm, 2/3", C-mount | $929.00 | 2 in stock | View |
