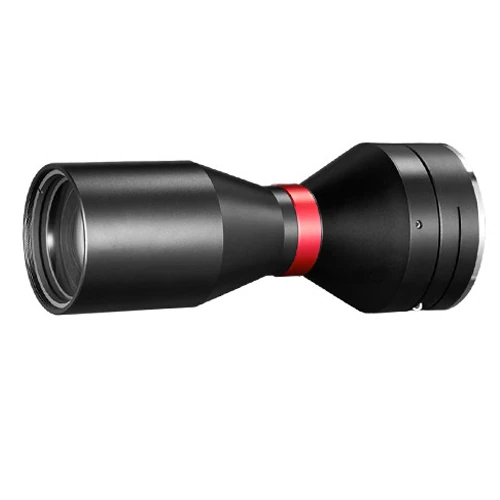

Bi-telecentric lens (VCM175B series)
The Bi-telecentric lens (VCM175B series) is a range of 10 telecentric lenses from LumaSpec Vision, from $999.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.291x, WD 238 mm, 1.75", F-mount, 0.322x, WD 208 mm, 1.75", F-mount, 0.362x, WD 230 mm, 1.75", F-mount, 0.402x, WD 178 mm, 1.75", F-mount, 0.452x, WD 187 mm, 1.75", F-mount, 0.517x, WD 138 mm, 1.75", F-mount, 0.603x, WD 128 mm, 1.75", F-mount, 0.69x, WD 118 mm, 1.75", F-mount, 0.801x, WD 111 mm, 1.75", F-mount, 1.117x, WD 72 mm, 1.75", F-mount |
|---|---|
| Mount | F-mount |
| Image circle | 22-30 mm |
| Type | Bi-telecentric |
| Magnification | 0.3-0.6x, 0.6-1x, 1-2x |
| Working distance | 65-110 mm, 110-200 mm, 200 mm + |
| Sensor format | 4/3" - APS-C |
Features
- Optimized for 4/3"~35mm F-Mount cameras
- Perfectly suitable for 4K and 8K line scan cameras
- FOV ranges from 26mm to 300mm
- Very high resolution, low distortion and homogeneous image quality
- Yield constant magnification over defined depth of field
- Customized mounts available.
All 10 models in the Bi-telecentric lens (VCM175B series)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM175B-26-AL | 1.117x, WD 72 mm, 1.75", F-mount | $999.00 | 4 in stock | View |
| LS-VCM175B-36-AL | 0.801x, WD 111 mm, 1.75", F-mount | $1,039.00 | 4 in stock | View |
| LS-VCM175B-42P-AL | 0.69x, WD 118 mm, 1.75", F-mount | $1,109.00 | 4 in stock | View |
| LS-VCM175B-48-AL | 0.603x, WD 128 mm, 1.75", F-mount | $1,199.00 | 5 in stock | View |
| LS-VCM175B-56-AL | 0.517x, WD 138 mm, 1.75", F-mount | $1,299.00 | 4 in stock | View |
| LS-VCM175B-64-AL | 0.452x, WD 187 mm, 1.75", F-mount | $1,409.00 | 4 in stock | View |
| LS-VCM175B-72-AL | 0.402x, WD 178 mm, 1.75", F-mount | $1,519.00 | 3 in stock | View |
| LS-VCM175B-80P-AL | 0.362x, WD 230 mm, 1.75", F-mount | $1,619.00 | 5 in stock | View |
| LS-VCM175B-90-AL | 0.322x, WD 208 mm, 1.75", F-mount | $1,749.00 | 4 in stock | View |
| LS-VCM175B-100P-AL | 0.291x, WD 238 mm, 1.75", F-mount | $2,269.00 | 4 in stock | View |
