Telecentric lenses

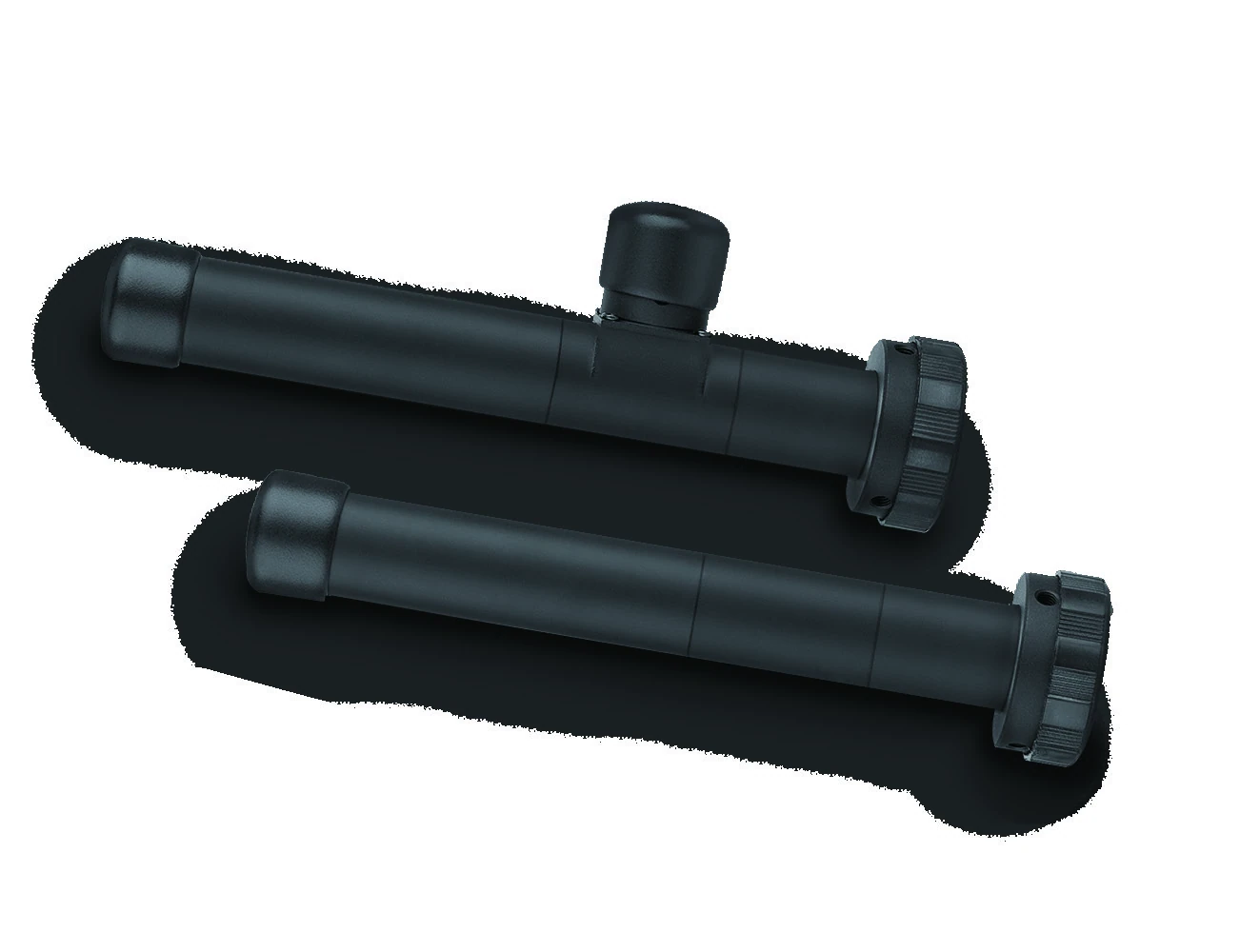

Standard / fixed magnification telecentric lens (VWL), 0.5x, WD 110 mm, 1/2", C-Mount (LS-VWL05-110CT)
Model LS-VWL05-110CT
VWL series C-Mount Macro lens have telecentric lens elements to achieve high performance at reasonable prices.
Features
- The required magnification and working distance can be accommodated to meet your individual requirements by using an optional closed-up ring adapter.
- Compact design with 16mm diameter, ideal for limited space
- Ideal for manufacturing equipment
- VWH or VWK series available for Megapixel camera or high-level camera.
Specifications
| Model | LS-VWL05-110CT |
|---|---|
| Magnification(x) | 0.5 |
| Working Distance (mm) | 110 |
| Max Sensor Size (dia. mm) | 8.0(1/2") |
| Aperture (F/#) | 18.8 |
| NA | 0.0132 |
| Resolution (um) | 25.4 |
| Depth of Field (mm) | 6.0 |
| FOV with 6.66x5.33 with 9M001 (mm x mm) | 13.3x10.7 |
| FOV with 6.47x4.84 with ICX267/205 (mm x mm) | 12.9x9.7 |
| Mount | C |
| Length (mm) | 106.3 |
| Coaxial Light | Yes |
| Iris | No |
| Mount (product parameters) | C-Mount |
| Detector | 1/2" |
| Magnification (product parameters) | 0.5x |
| WD (product parameters) | 110mm |
| Magnification (x) | 0.5 |
| Sensor format | 1/2" |
| Field of view | 13.3x10.7 mm (6.66x5.33 with 9M001); 12.9x9.7 mm (6.47x4.84 with ICX267/205) |
| Shipping weight | 0.62 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Standard / fixed magnification telecentric lens (VWL) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VWL20-65CT | 2x, WD 65 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL15-150AT | 1.5x, WD 150 mm, 1/2", C-Mount | $629.00 | 2 in stock | View |
| LS-VWL15-150CT | 1.5x, WD 150 mm, 1/2", C-Mount | $629.00 | 3 in stock | View |
| LS-VWL15-250A | 1.5x, WD 250 mm, 1/2", C-Mount | $629.00 | 5 in stock | View |
| LS-VWL15-65AT | 1.5x, WD 65 mm, 1/2", C-Mount | $629.00 | 3 in stock | View |
| LS-VWL15-65CT | 1.5x, WD 65 mm, 1/2", C-Mount | $629.00 | 4 in stock | View |
| LS-VWL10-250C | 1x, WD 250 mm, 1/3", C-Mount | $639.00 | 5 in stock | View |
| LS-VWL08-150A | 0.8x, WD 150 mm, 1/3", C-Mount | $659.00 | 4 in stock | View |
| LS-VWL10-110AT | 1x, WD 113 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWL10-110CT | 1x, WD 113 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWL10-150AT | 1x, WD 150 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWL10-150CT | 1x, WD 150 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWL10-250A | 1x, WD 250 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWL10-65ATN | 1x, WD 65 mm, 1/2", C-Mount | $669.00 | 2 in stock | View |
| LS-VWL10-65CTN | 1x, WD 65 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWL08-130AT | 0.8x, WD 130 mm, 1/2", C-Mount | $699.00 | 4 in stock | View |
| LS-VWL08-130CT | 0.8x, WD 130 mm, 1/2", C-Mount | $699.00 | 5 in stock | View |
| LS-VWL08-250A | 0.8x, WD 250 mm, 1/2", C-Mount | $699.00 | 3 in stock | View |
| LS-VWL08-65AT | 0.8x, WD 65 mm, 1/2", C-Mount | $699.00 | 2 in stock | View |
| LS-VWL08-65CT | 0.8x, WD 65 mm, 1/2", C-Mount | $699.00 | 5 in stock | View |
| LS-VWL06-65AT | 0.6x, WD 65 mm, 1/1.8", C-Mount | $759.00 | 3 in stock | View |
| LS-VWL06-65CT | 0.6x, WD 65 mm, 1/1.8", C-Mount | $759.00 | 2 in stock | View |
| LS-VWL05-110AT | 0.5x, WD 110 mm, 1/2", C-Mount | $779.00 | 2 in stock | View |
| LS-VWL05-250A | 0.5x, WD 250 mm, 1/2", C-Mount | $779.00 | 4 in stock | View |
See all 51 models in the Standard / fixed magnification telecentric lens (VWL) series
