Bi-telecentric lens for 1/2.3" cameras (VCM120 series) - B variant (VCM120B)
Telecentric lenses

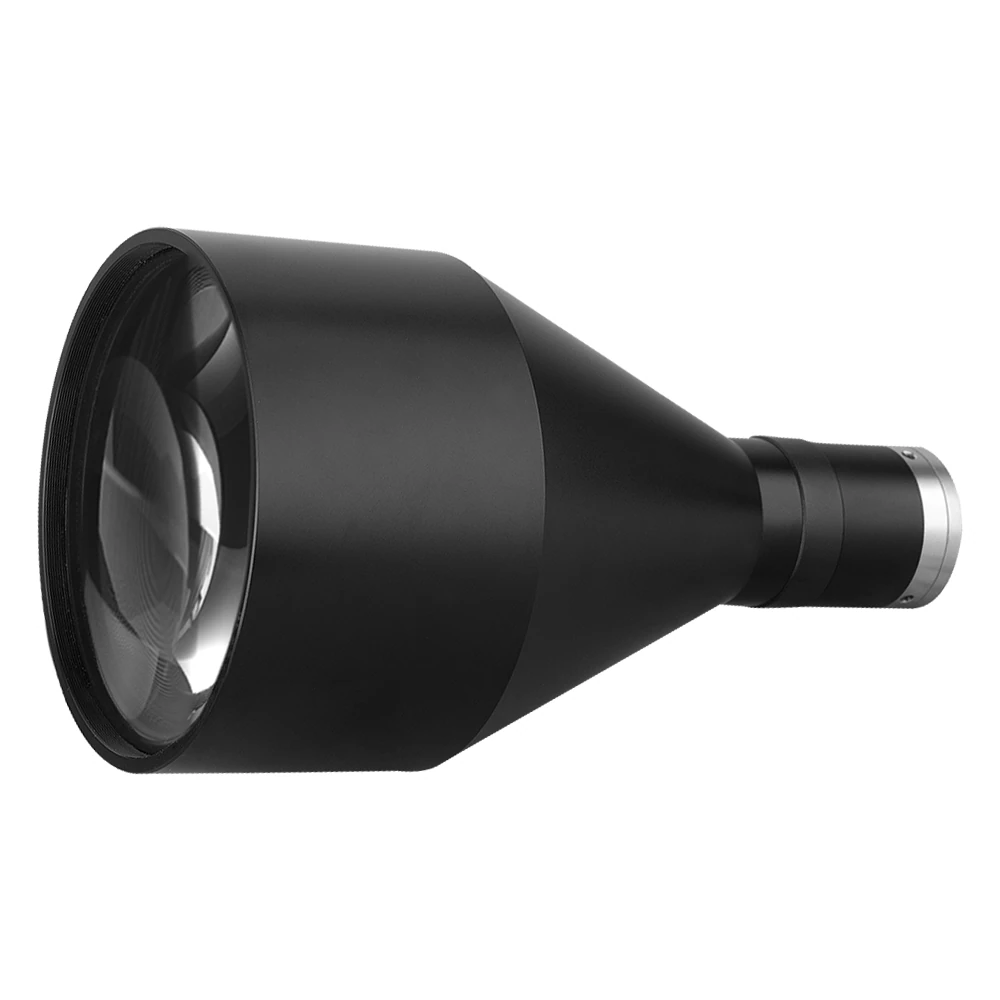

Bi-telecentric lens for 1/2.3" cameras (VCM120 series) - B variant (VCM120B), 0.125x, WD 187 mm, 1/2", C-mount (LS-VCM120B-64-AL)
Model LS-VCM120B-64-AL
Specifications
| Model | LS-VCM120B-64-AL |
|---|---|
| Mount | C |
| Detector | 1/2" |
| Mag. | 0.125x |
| FOV | 64mm |
| WD | 187mm |
| Magnification(x) | 0.125 |
| Object Field of View (dia. mm) | 64 |
| Working Distance (mm) | 187±2 |
| Max Sensor Size (dia. mm) | 8.0(1/2") |
| Best Aperture (F/#) | 4.18 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.1 |
| MTF30 (lp/mm) | >237 |
| Depth of Field (mm) | ±5 |
| Length of I/O (mm) | 341.8 |
| Field of view with 9J003 (6.44x4.62 sensor) (mm x mm) | 51.5x36.9 |
| Length (mm) | 137.3 |
| Weight (kg) | 0.81 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 1/2.3" cameras (VCM120 series) - B variant (VCM120B) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM120B-26-AL | 0.308x, WD 72 mm, 1/2", C-mount | $999.00 | 2 in stock | View |
| LS-VCM120B-36-AL | 0.221x, WD 111 mm, 1/2", C-mount | $1,169.00 | 2 in stock | View |
| LS-VCM120B-42P-AL | 0.19x, WD 118 mm, 1/2", C-mount | $1,279.00 | 4 in stock | View |
| LS-VCM120B-48-AL | 0.166x, WD 128 mm, 1/2", C-mount | $1,379.00 | 3 in stock | View |
| LS-VCM120B-56-AL | 0.143x, WD 138 mm, 1/2", C-mount | $1,519.00 | 3 in stock | View |
| LS-VCM120B-64P-AL | 0.124x, WD 159 mm, 1/2", C-mount | $1,649.00 | 5 in stock | View |
| LS-VCM120B-72-AL | 0.111x, WD 178 mm, 1/2", C-mount | $1,789.00 | 5 in stock | View |
| LS-VCM120B-80P-AL | 0.1x, WD 230 mm, 1/2", C-mount | $1,929.00 | 5 in stock | View |
| LS-VCM120B-90-AL | 0.09x, WD 208 mm, 1/2", C-mount | $2,099.00 | 5 in stock | View |
| LS-VCM120B-100P-AL | 0.08x, WD 238 mm, 1/2", C-mount | $2,269.00 | 2 in stock | View |
