Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B)
Telecentric lenses

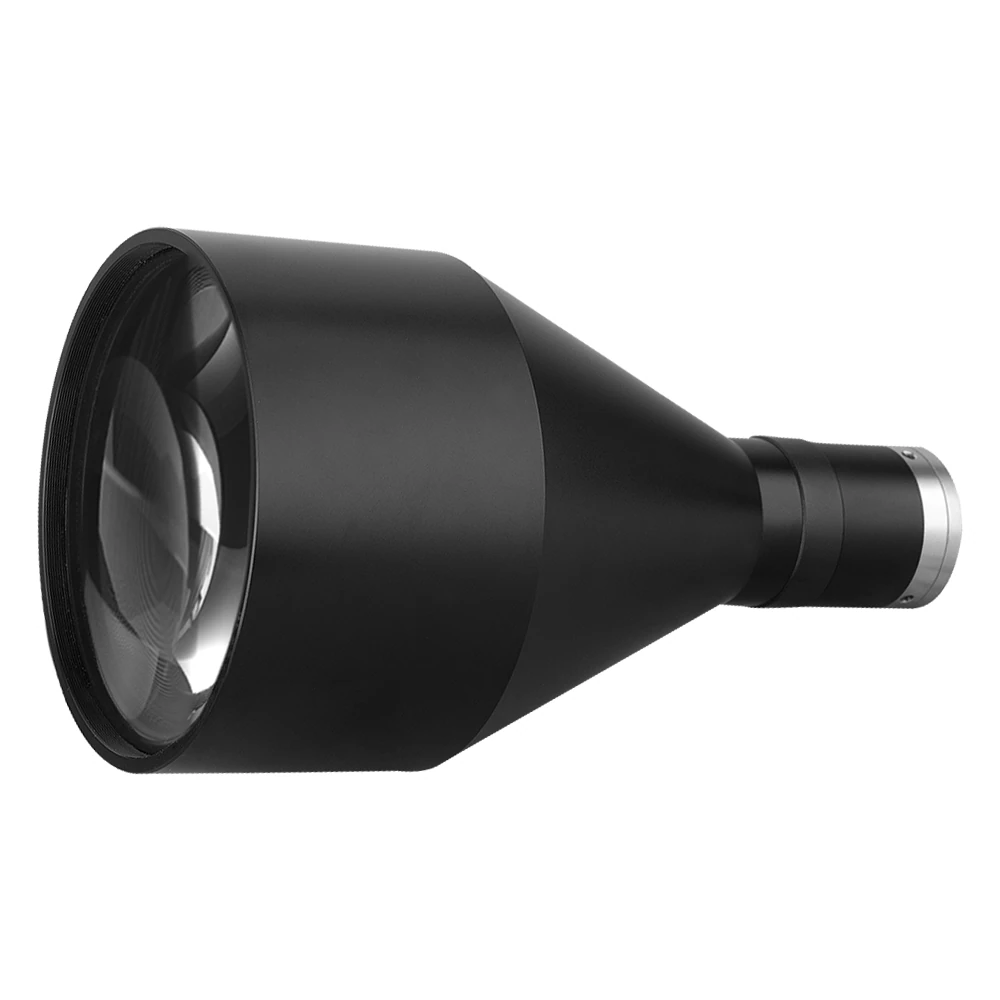

Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B), 0.25x, WD 111 mm, 1/1.8", C-mount (LS-VCM118B-36-AL)
Model LS-VCM118B-36-AL
Specifications
| Model | LS-VCM118B-36-AL |
|---|---|
| Mount | C |
| Detector | 1/1.8" |
| Mag. | 0.250x |
| FOV | 36mm |
| WD | 111mm |
| Magnification(x) | 0.250 |
| Object Field of View (dia. mm) | 36 |
| Working Distance (mm) | 111±2 |
| Max Sensor Size (dia. mm) | 9.0(1/1.8") |
| Best Aperture (F/#) | 5.3 |
| Telecentricity typical (max) (deg) | 0.1 |
| Distortion typical (max) (%) | 0.1 |
| MTF30 (lp/mm) | >187 |
| Depth of Field (mm) | ±2 |
| Length of I/O (mm) | 250.7 |
| Field of view with IMX178 (7.43x4.9 sensor) (mm x mm) | 29.7x19.6 |
| Length (mm) | 122.2 |
| Weight (kg) | 0.35 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-VCM118B-42P-AL | 0.215x, WD 118 mm, 1/1.8", C-mount | $1,279.00 | 2 in stock | View |
| LS-VCM118B-48-AL | 0.187x, WD 128 mm, 1/1.8", C-mount | $1,379.00 | 5 in stock | View |
| LS-VCM118B-56-AL | 0.161x, WD 138 mm, 1/1.8", C-mount | $1,519.00 | 3 in stock | View |
| LS-VCM118B-64-AL | 0.141x, WD 187 mm, 1/1.8", C-mount | $1,649.00 | 5 in stock | View |
| LS-VCM118B-64P-AL | 0.14x, WD 159 mm, 1/1.8", C-mount | $1,649.00 | 4 in stock | View |
| LS-VCM118B-72-AL | 0.125x, WD 178 mm, 1/1.8", C-mount | $1,789.00 | 2 in stock | View |
| LS-VCM118B-80P-AL | 0.113x, WD 230 mm, 1/1.8", C-mount | $1,929.00 | 2 in stock | View |
| LS-VCM118B-90-AL | 0.1x, WD 208 mm, 1/1.8", C-mount | $2,099.00 | 4 in stock | View |
| LS-VCM118B-100P-AL | 0.091x, WD 238 mm, 1/1.8", C-mount | $2,269.00 | 4 in stock | View |
| LS-VCM118B-110-AL | 0.081x, WD 251 mm, 1/1.8", C-mount | $2,459.00 | 4 in stock | View |
| LS-VCM118B-136-AL | 0.066x, WD 288 mm, 1/1.8", C-mount | $2,889.00 | 2 in stock | View |
| LS-VCM118B-150-AL | 0.06x, WD 301 mm, 1/1.8", C-mount | $3,129.00 | 5 in stock | View |
| LS-VCM118B-170-AL | 0.053x, WD 318 mm, 1/1.8", C-mount | $3,469.00 | 3 in stock | View |
| LS-VCM118B-240-AL | 0.037x, WD 410 mm, 1/1.8", C-mount | $4,669.00 | 5 in stock | View |
