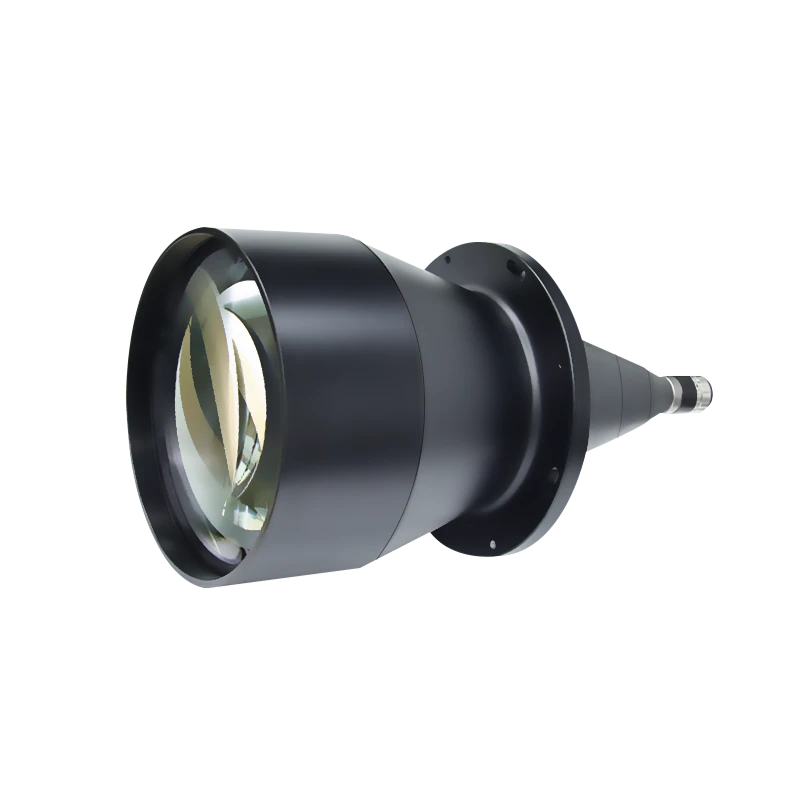

Bi-telecentric lens for 2/3" sensor (X23 series), 0.053x, WD 372 mm, 2/3", C-mount (LS-HF372-0053X23)

Name: Bi-telecentric lens for 2/3" sensor (X23 series), 0.053x, WD 372 mm, 2/3", C-mount (LS-HF372-0053X23)
Brand: LumaSpec Vision
SKU: LS-HF372-0053X23
Price: 4119.00 USD
Availability: InStock

Model LS-HF372-0053X23

Bi-telecentric C-mount lens supporting 2/3" (dia. 11 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view; built-in coaxial versions (C suffix).

Datasheet (PDF) - LS-HF372-0053X23

Features

Maximum support for 2/3" dia. 11 mm target face camera
Excellent bilateral telecentric optical path, ultra low distortion design
Large depth of field design for high and low difference imaging products
High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
Lightweight fastening structure designed to perform stably at high speed
Ultra high differentiation
Built-in coaxial versions (C suffix)
WD=110mm, Magnification 0.3X, DOF 7mm, Distortion TV<0.03%.
Eliminate parallax and distortion ‌.
Compact Metallic construction; Multi-layer Coating; Magnification does not change with respect to depth.
Suitable for mechanical parts measurement, electronic components inspection, glass inspection and other special applications.

Specifications

Model	LS-HF372-0053X23
Mount	C
Sensor size	2/3" dia.11mm
Type	Telecentric lens
Magnification	0.053
WD	372mm
DOF	157mm
F/NO	F4.9
MTF>0.3(LP/mm)	180
Telecentric degree	<0.1°
Distortion	<0.1%
Maximum View Distance	—
Main Material	Aluminum Alloy + optical Glass
Custom Design	Supported
Sensor format	2/3"dia. 11.4mm
Working distance (mm)	372
Aperture	F4.9
Shipping weight	3.07 kg

Applications

Imaging products with high and low differences (large depth of field)

Complete the station
