Telecentric lenses

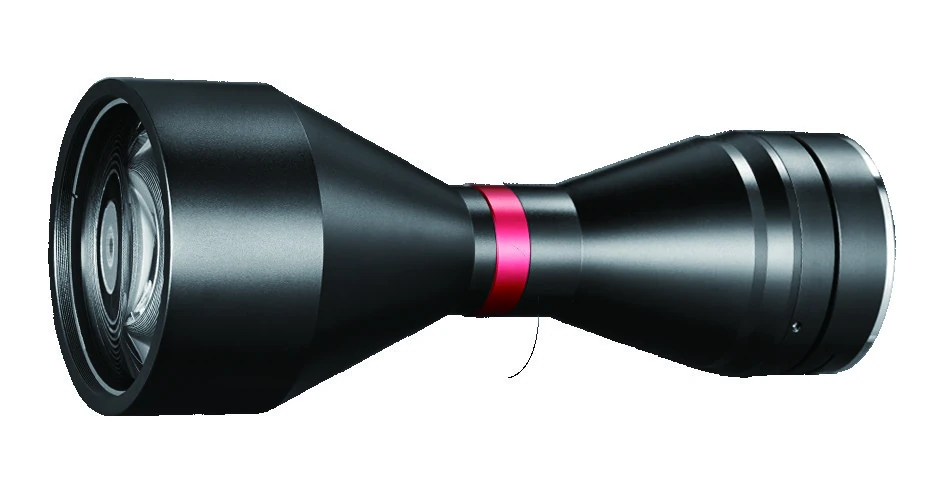

Bi-telecentric lens for 35mm Full cameras (VCM35F series), 0.367x, WD 280 mm, F or Other-mount (LS-VCM35F-120-AL)
Model LS-VCM35F-120-AL
Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
- Optimized for 4/3"~35mm F-Mount cameras
- Perfectly suitable for 4K and 8K line scan cameras
- FOV ranges from 26mm to 300mm
- Very high resolution, low distortion and homogeneous image quality
- Yield constant magnification over defined depth of field
- Customized mounts available.
Specifications
| Model | LS-VCM35F-120-AL |
|---|---|
| Max sensor size (dia. mm) | 44(35mm) |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | F/M58 |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | F-Mount/Other |
| Detector | 35mm |
| Magnification (x) | 0.367 |
| Object Field of View (dia. mm) | 120 |
| Working Distance (mm) | 280±5 |
| Best Aperture (F/#) | 14.8 |
| Telecentricity typical (max) (deg) | <0.1 |
| Distortion typical (max) (%) | <0.1 |
| MTF30 (lp/mm) | >55 |
| Depth of Field (mm) | ±5.9@F20 |
| Length of I/O (mm) | 685±5 |
| Field of view with Link-2K (20.48mm sensor) (mm x mm) | 55.8mm |
| Field of view with Link-4K (28.67mm sensor) (mm x mm) | 78.1mm |
| Field of view with Link-8K (40.96mm sensor) (mm x mm) | 111.6mm |
| Field of view with 35mm Format (36.0x24.0 sensor) (mm x mm) | 98.1x65.4 |
| Length (mm) | 358.3 |
| Weight (kg) | 4.6 |
| Compatible telecentric led lighting | LS-VCL-120-XW-Y Beam Diameter 120mm |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Bi-telecentric lens for 35mm Full cameras (VCM35F series) series
