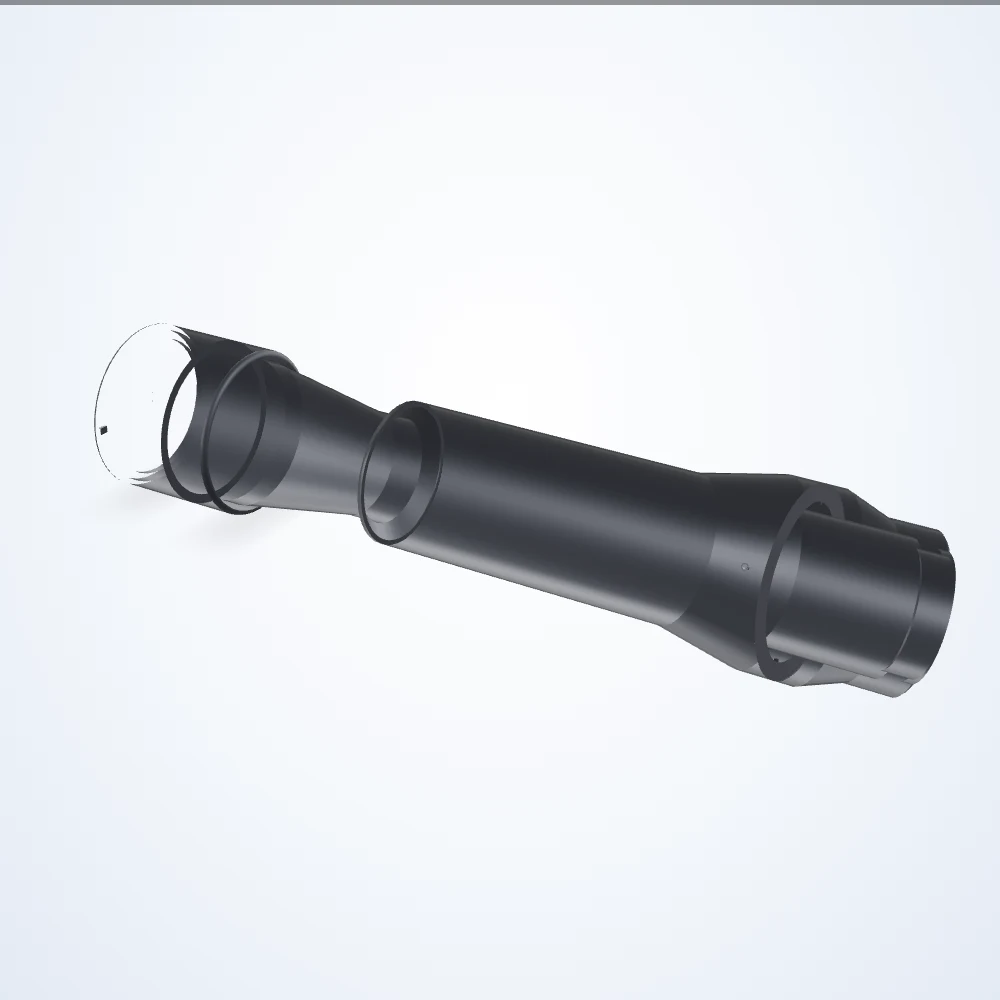

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.838× telecentric lens, APS-H, F-mount (LS-TCL-0151)
Model LS-TCL-0151
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 101.9 mm; depth of field 1.4 mm.
Specifications
| Model | LS-TCL-0151 |
|---|---|
| Magnification | 0.838× |
| Working distance | 101.9 mm |
| Sensor format | APS-H |
| Mount | F-Mount |
| Depth of field | 1.4 mm |
| Aps-c IMX342 | 26.68 x 20.01 mm |
| Aps-h python 25K | 27.49 x 27.49 mm |
| Dimensions approximate | 270.1 x 61 x 61 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 61 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 34.21 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 22 x 22 mm |
| Resolution (pixel size) | 9 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/12 |
| Weight | 781 Grams |
