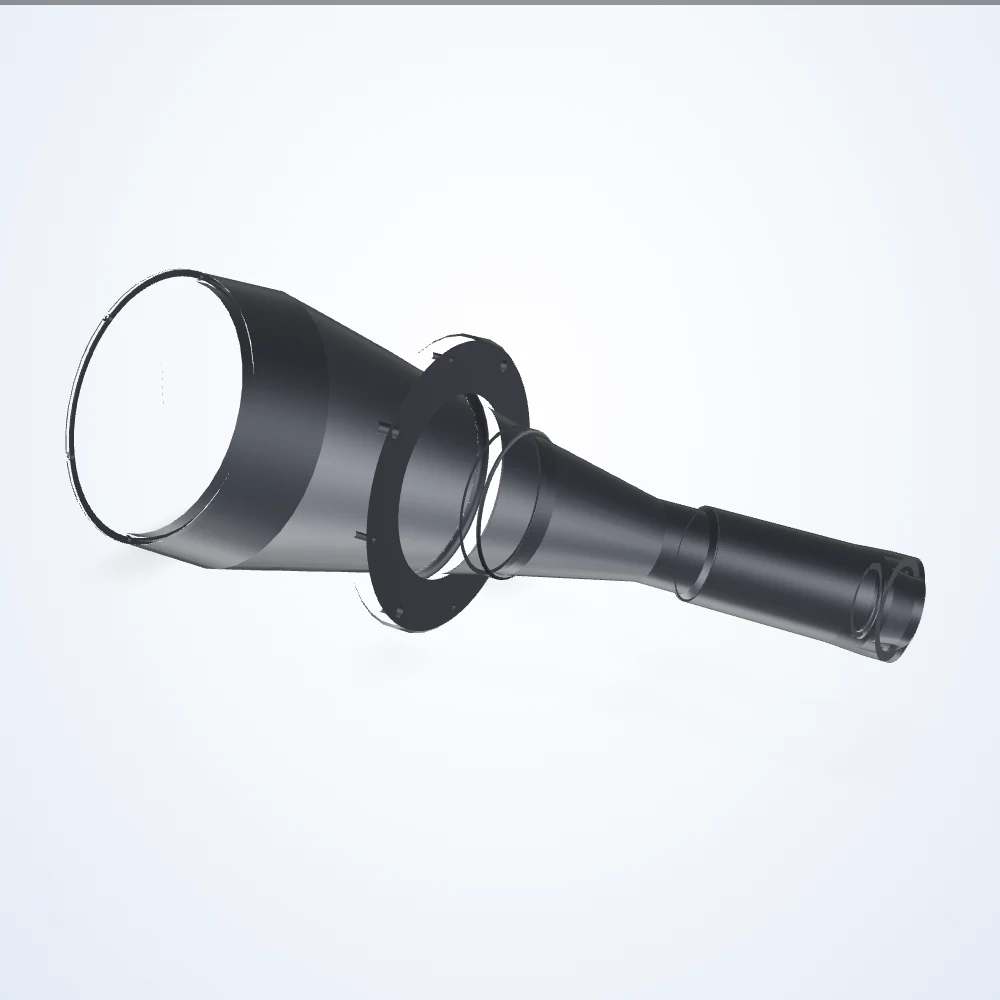

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.196× telecentric lens, APS-H, F-mount (LS-TCL-0165)
Model LS-TCL-0165
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 358.5 mm; depth of field 17.2 mm.
Specifications
| Model | LS-TCL-0165 |
|---|---|
| Magnification | 0.196× |
| Working distance | 358.5 mm |
| Sensor format | APS-H |
| Mount | F-Mount |
| Depth of field | 17.2 mm |
| Aps-c IMX342 | 114.08 x 85.56 mm |
| Aps-h python 25K | 117.55 x 117.55 mm |
| Dimensions approximate | 564.2 x 200 x 200 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 200 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 146.28 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 94.04 x 94.04 mm |
| Resolution (pixel size) | 26 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 6280 Grams |
