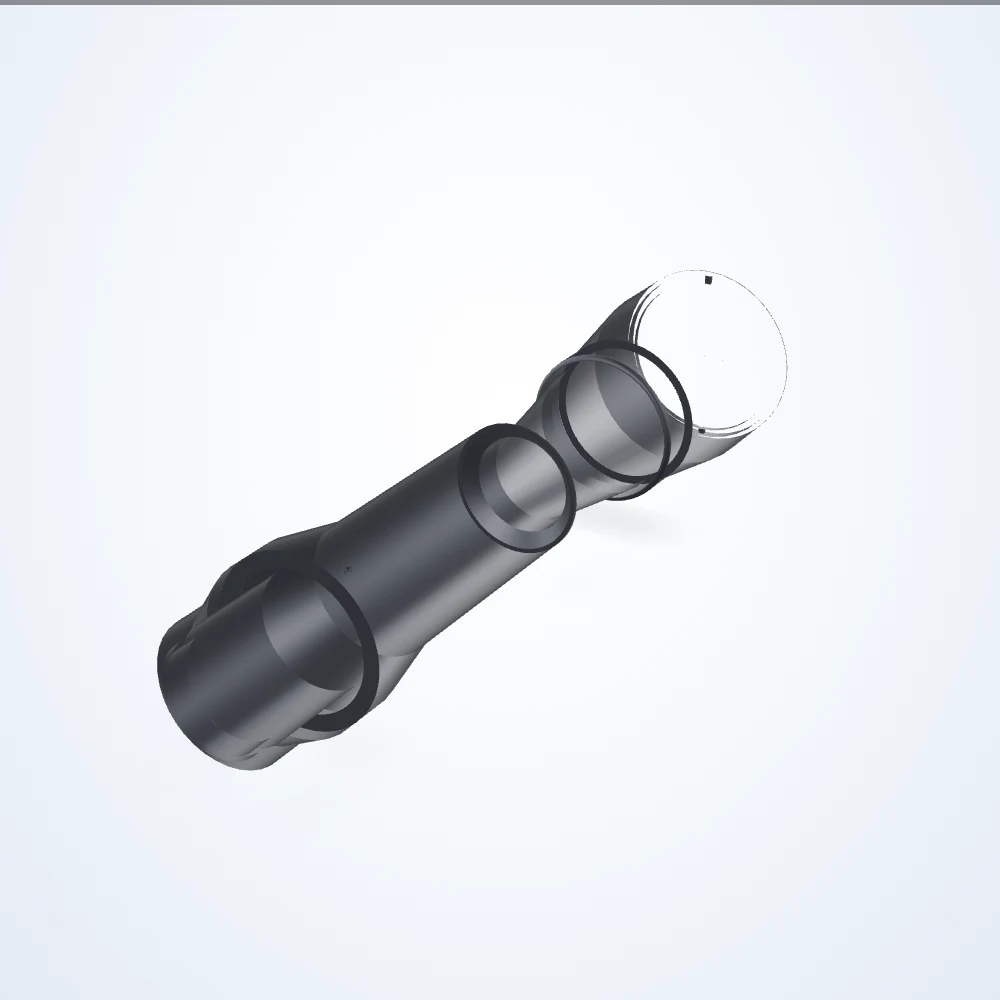

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.635× telecentric lens, APS-H, M42-mount (LS-TCL-0154)
Model LS-TCL-0154
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 131.1 mm; depth of field 2.5 mm.
Specifications
| Model | LS-TCL-0154 |
|---|---|
| Magnification | 0.635× |
| Working distance | 131.1 mm |
| Sensor format | APS-H |
| Mount | M42-Mount |
| Depth of field | 2.5 mm |
| Aps-c IMX342 | 35.21 x 26.41 mm |
| Aps-h python 25K | 36.28 x 36.28 mm |
| Dimensions approximate | 327.2 x 75 x 75 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 75 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 45.15 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 29.03 x 29.03 mm |
| Resolution (pixel size) | 12 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/12 |
| Weight | 1291 Grams |
