Telecentric lenses

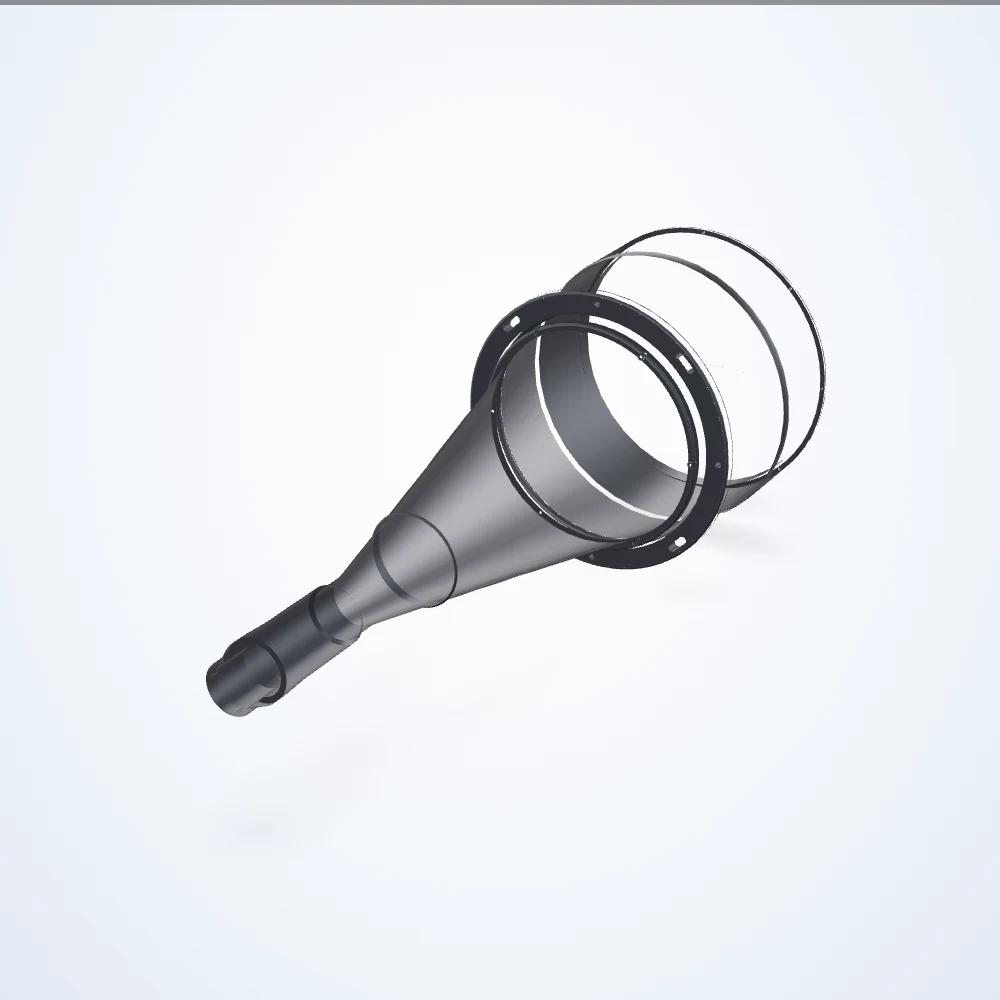

0.115× telecentric lens, APS-H, M42-mount (LS-TCL-0170)
Model LS-TCL-0170
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 542.8 mm; depth of field 49.9 mm.
Specifications
| Model | LS-TCL-0170 |
|---|---|
| Magnification | 0.115× |
| Working distance | 542.8 mm |
| Sensor format | APS-H |
| Mount | M42-Mount |
| Depth of field | 49.9 mm |
| Aps-c IMX342 | 194.43 x 145.83 mm |
| Aps-h python 25K | 200.35 x 200.35 mm |
| Dimensions approximate | 884.3 x 322 x 322 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 322 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 249.3 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 160.28 x 160.28 mm |
| Resolution (pixel size) | 44 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 18826 Grams |
