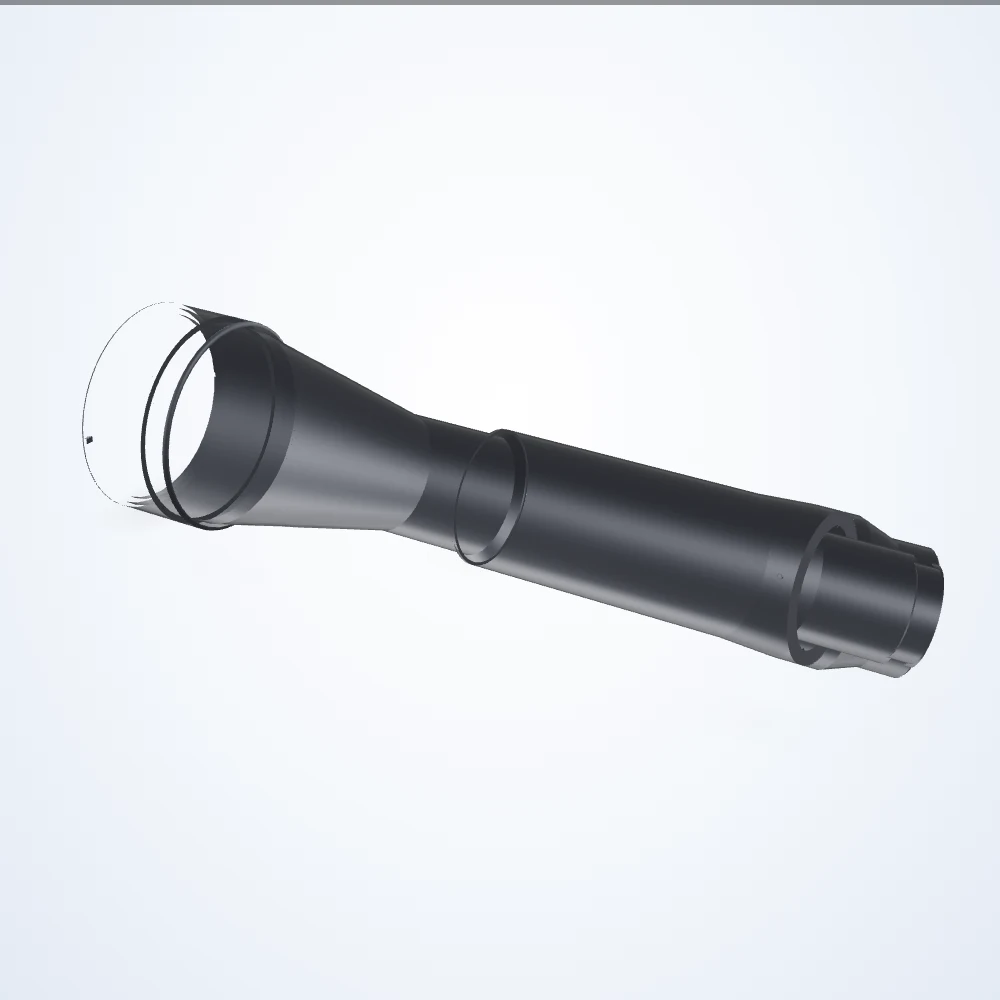

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.465× telecentric lens, APS-H, M42-mount (LS-TCL-0158)
Model LS-TCL-0158
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 157.6 mm; depth of field 4.2 mm.
Specifications
| Model | LS-TCL-0158 |
|---|---|
| Magnification | 0.465× |
| Working distance | 157.6 mm |
| Sensor format | APS-H |
| Mount | M42-Mount |
| Depth of field | 4.2 mm |
| Aps-c IMX342 | 48.09 x 36.06 mm |
| Aps-h python 25K | 49.55 x 49.55 mm |
| Dimensions approximate | 388 x 100 x 100 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 100 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 61.66 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 39.64 x 39.64 mm |
| Resolution (pixel size) | 15 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 1612 Grams |
