Telecentric lenses

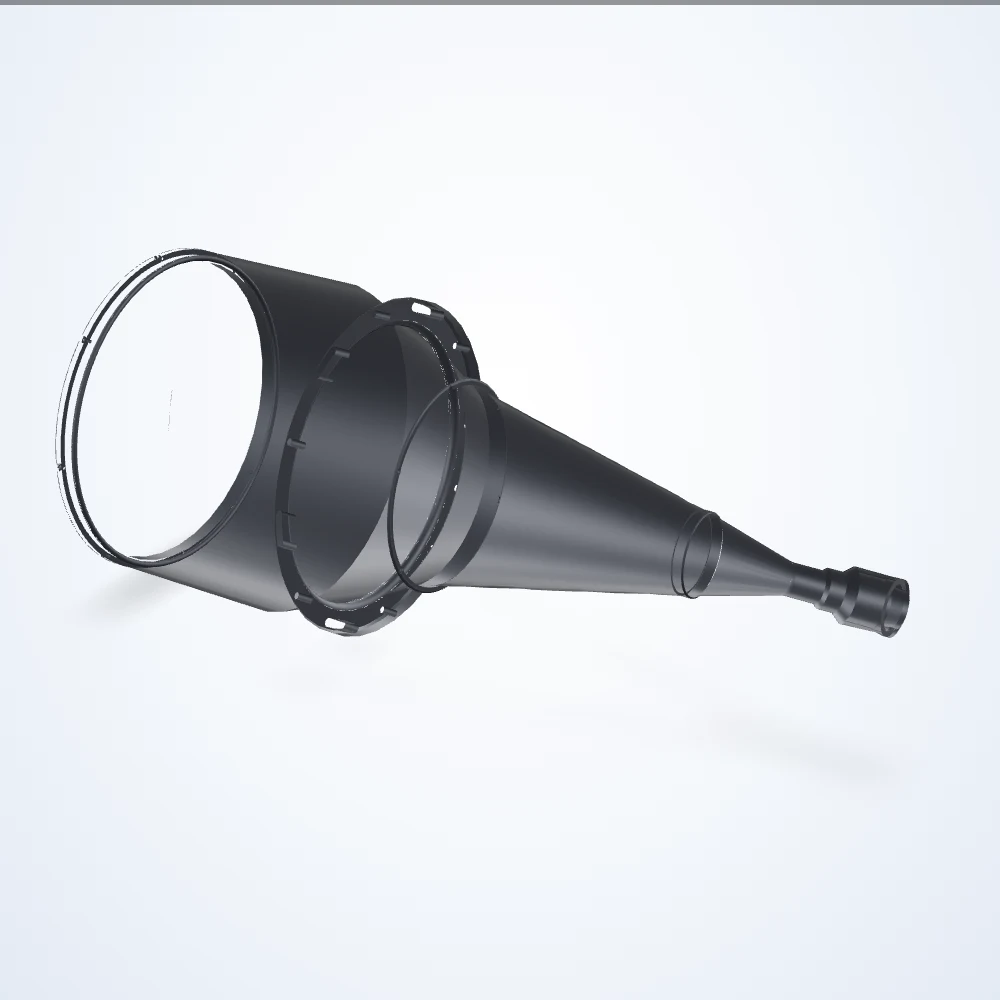

0.1× telecentric lens, 2.4", F-mount (LS-TCL-0171)
Model LS-TCL-0171
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 500 mm; depth of field 66 mm.
Specifications
| Model | LS-TCL-0171 |
|---|---|
| Magnification | 0.1× |
| Working distance | 500 mm |
| Sensor format | 2.4" |
| Mount | F-Mount |
| Depth of field | 66 mm |
| Aps-c IMX342 | 223.60 x 167.7 mm |
| Aps-h python 25K | 230.4 x 230.4 mm |
| Dimensions approximate | 1001 x 417 x 417 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.1 |
| Filter thread | No Filter Threads |
| Front diameter | 417 mm |
| Image circle | 37.2 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 286.7 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 184.32 x 184.32 mm |
| Resolution (pixel size) | 51 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.15° |
| Telecentricity typical | < 0.1° |
| Working ƒ/n | f/8 |
| Weight | 38862 Grams |
