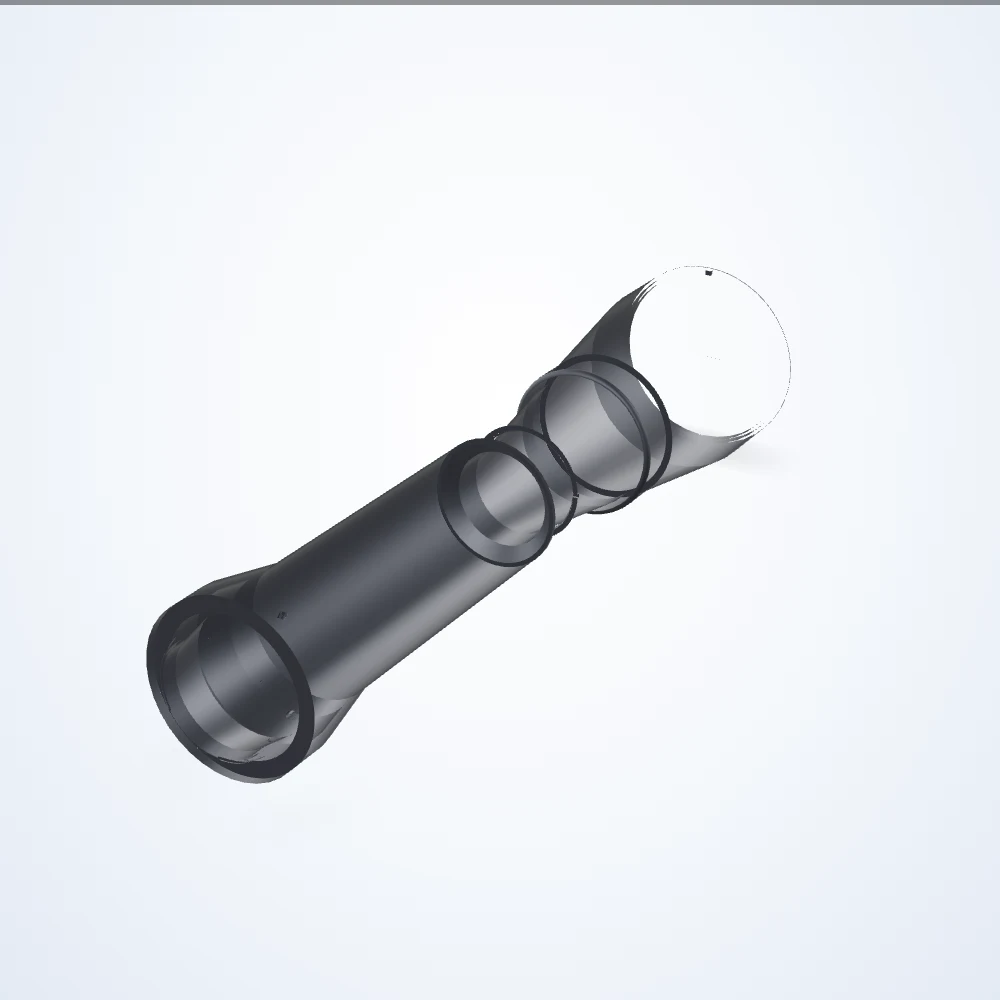

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.531× telecentric lens, APS-H, F-mount (LS-TCL-0155)
Model LS-TCL-0155
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 136.5 mm; depth of field 3.2 mm.
Specifications
| Model | LS-TCL-0155 |
|---|---|
| Magnification | 0.531× |
| Working distance | 136.5 mm |
| Sensor format | APS-H |
| Mount | F-Mount |
| Depth of field | 3.2 mm |
| Aps-c IMX342 | 42.11 x 31.58 mm |
| Aps-h python 25K | 43.39 x 43.39 mm |
| Dimensions approximate | 331.7 x 80 x 80 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 80 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 53.99 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 34.71 x 34.71 mm |
| Resolution (pixel size) | 13 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 1167 Grams |
