0.196× telecentric lens, APS-H, M42-Mount (LS-TCL-0166)

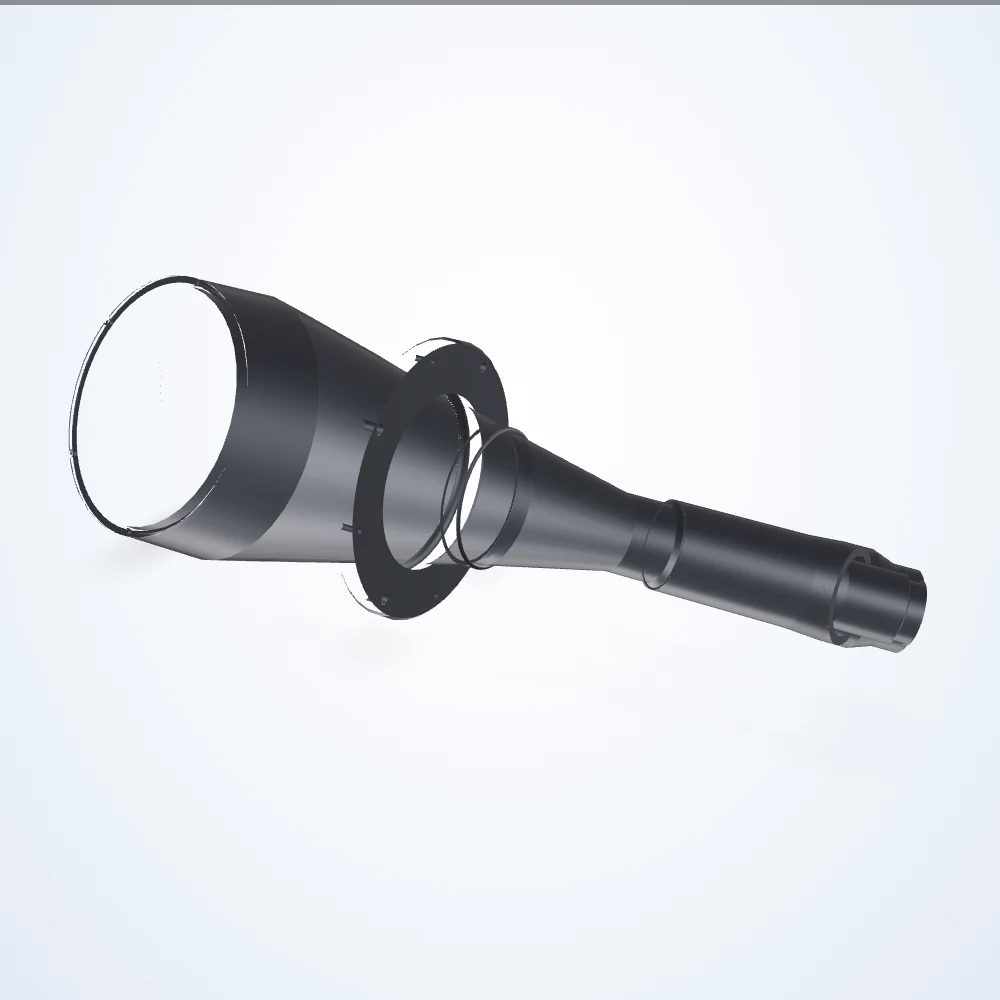

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.196× telecentric lens, APS-H, M42-Mount (LS-TCL-0166)

Model LS-TCL-0166

0.196× telecentric lens, APS-H, M42-Mount. Working distance 358.5 mm. Depth of field 17.2 mm.

Datasheet (PDF) - LS-TCL-0166 3D model (STEP) - LS-TCL-0166

Specifications

Model	LS-TCL-0166
APS-C IMX342	114.08 x 85.56 mm
APS-H Python 25K	117.55 x 117.55 mm
Depth Of Field	17.2 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
Front Diameter	200 mm
Image Circle Diameter	33.5 mm
Imager Format	APS-H
Lens Type	Telecentric
Line 4k-7µm	146.28 mm
Magnification	0.196×
Mount	M42-Mount
Python 16K	94.04 x 94.04 mm
Resolution (Pixel Size)	26 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	358.5 mm
Working ƒ/N	f/8
