Telecentric lenses

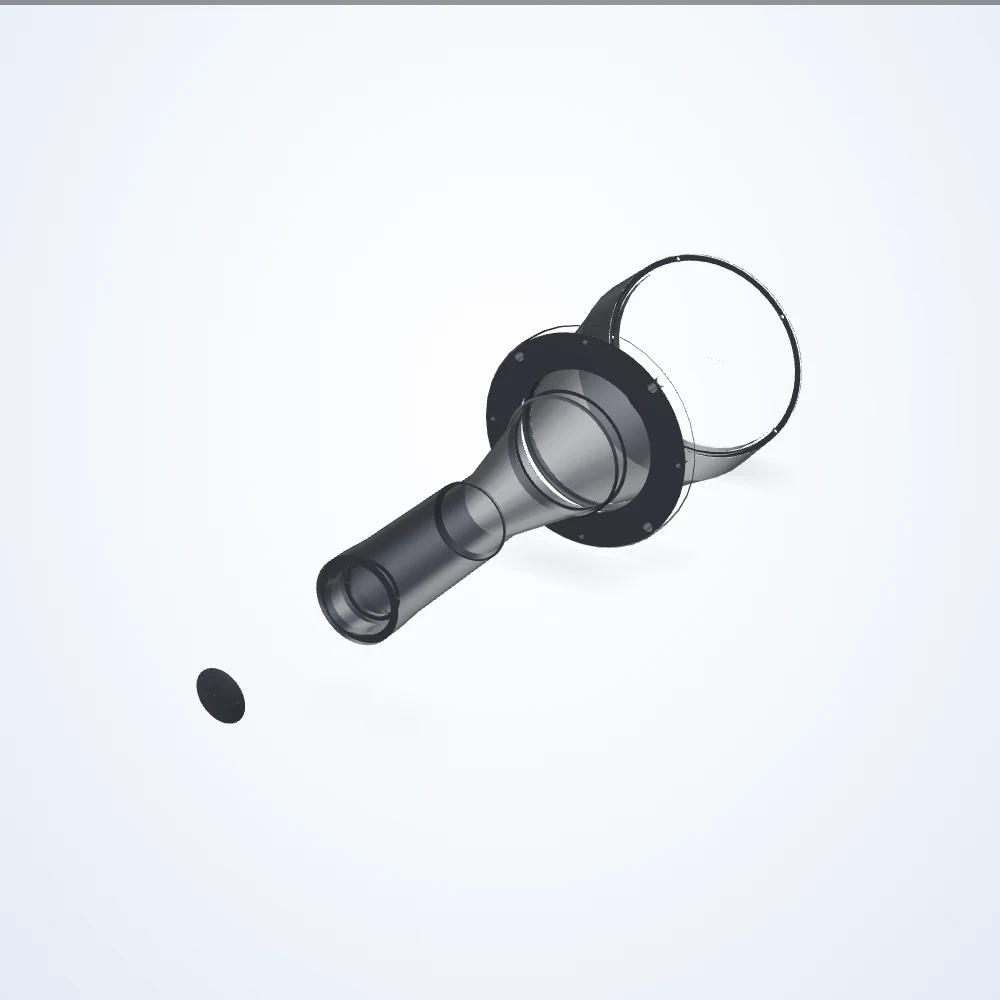

0.233× telecentric lens, APS-H, F-mount (LS-TCL-0163)
Model LS-TCL-0163
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 303.9 mm; depth of field 12.2 mm.
Specifications
| Model | LS-TCL-0163 |
|---|---|
| Magnification | 0.233× |
| Working distance | 303.9 mm |
| Sensor format | APS-H |
| Mount | F-Mount |
| Depth of field | 12.2 mm |
| Aps-c IMX342 | 95.97 x 71.97 mm |
| Aps-h python 25K | 98.88 x 98.88 mm |
| Dimensions approximate | 508.7 x 180 x 180 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 180 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 123.05 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 79.11 x 79.11 mm |
| Resolution (pixel size) | 22 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 5152 Grams |
