1.208× telecentric lens, APS-H, F-Mount (LS-TCL-0149)

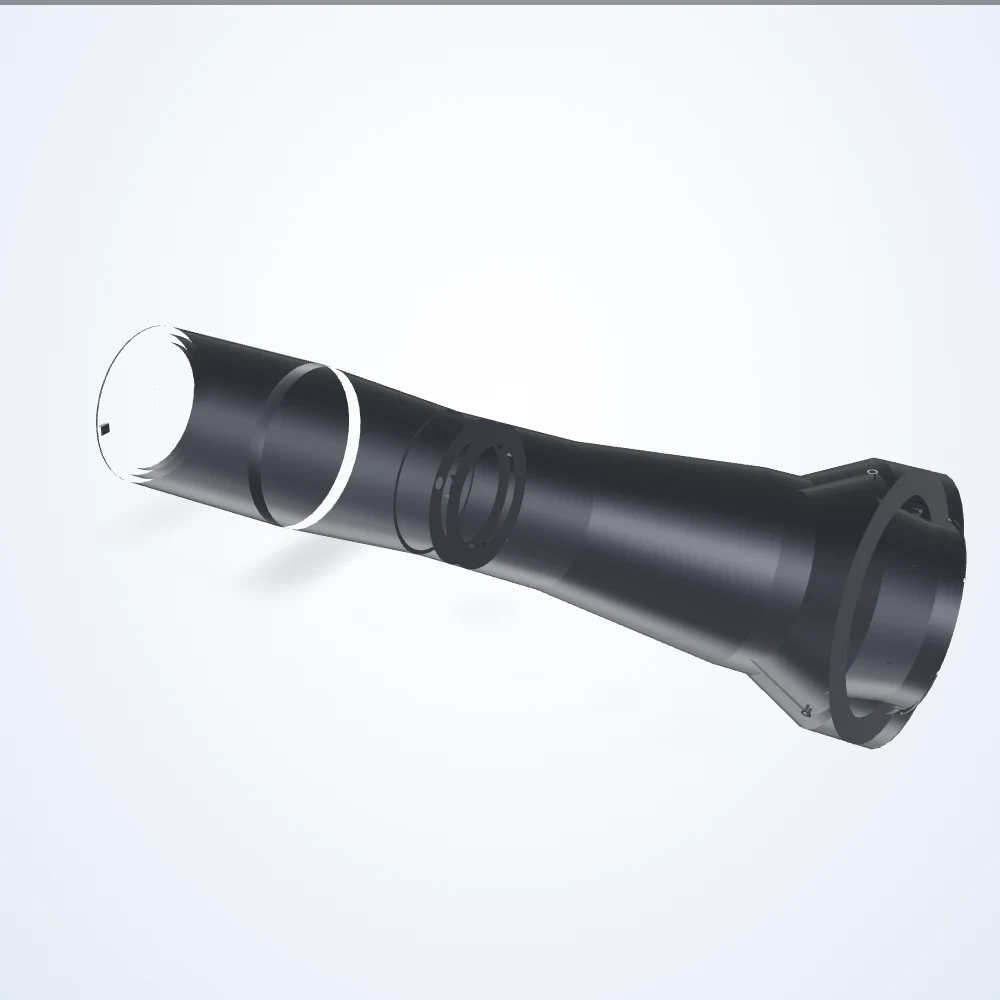

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1.208× telecentric lens, APS-H, F-Mount (LS-TCL-0149)

Model LS-TCL-0149

1.208× telecentric lens, APS-H, F-Mount. Working distance 66.7 mm. Depth of field 0.9 mm.

Datasheet (PDF) - LS-TCL-0149 3D model (STEP) - LS-TCL-0149

Specifications

Model	LS-TCL-0149
APS-C IMX342	18.51 x 13.88 mm
APS-H Python 25K	19.07 x 19.07 mm
Depth Of Field	0.9 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
Front Diameter	44 mm
Image Circle Diameter	33.5 mm
Imager Format	APS-H
Lens Type	Telecentric
Line 4k-7µm	23.73 mm
Magnification	1.208×
Mount	F-Mount
Python 16K	15.26 x 15.26 mm
Resolution (Pixel Size)	8 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	66.7 mm
Working ƒ/N	f/16
