Telecentric lenses

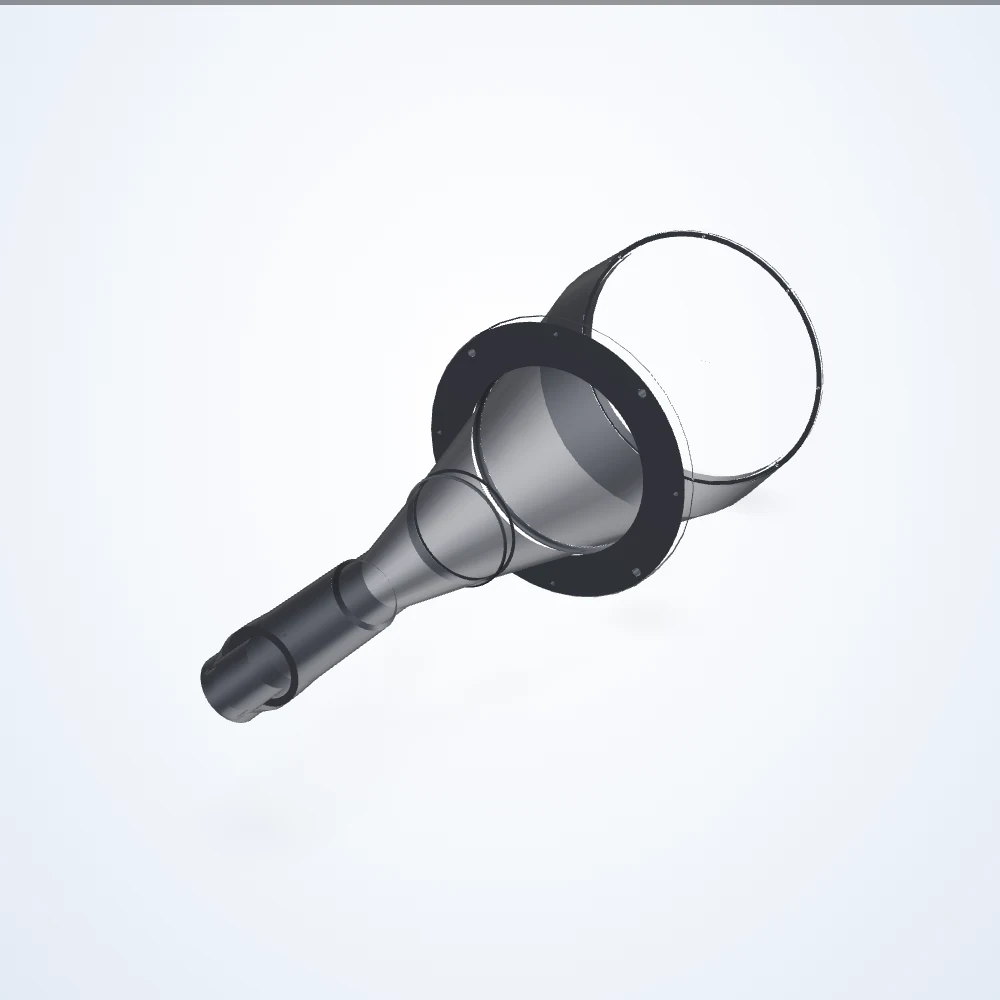

0.144× telecentric lens, APS-H, M42-mount (LS-TCL-0168)
Model LS-TCL-0168
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 475.9 mm; depth of field 31.8 mm.
Specifications
| Model | LS-TCL-0168 |
|---|---|
| Magnification | 0.144× |
| Working distance | 475.9 mm |
| Sensor format | APS-H |
| Mount | M42-Mount |
| Depth of field | 31.8 mm |
| Aps-c IMX342 | 155.28 x 116.46 mm |
| Aps-h python 25K | 160 x 160 mm |
| Dimensions approximate | 734.7 x 260 x 260 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 260 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 199.1 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 128 x 128 mm |
| Resolution (pixel size) | 35 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/8 |
| Weight | 10583 Grams |
