Home / Lenses / Telecentric lenses / 0.115× telecentric lens, APS-H, F-Mount

0.115× telecentric lens, APS-H, F-Mount (LS-TCL-0169)

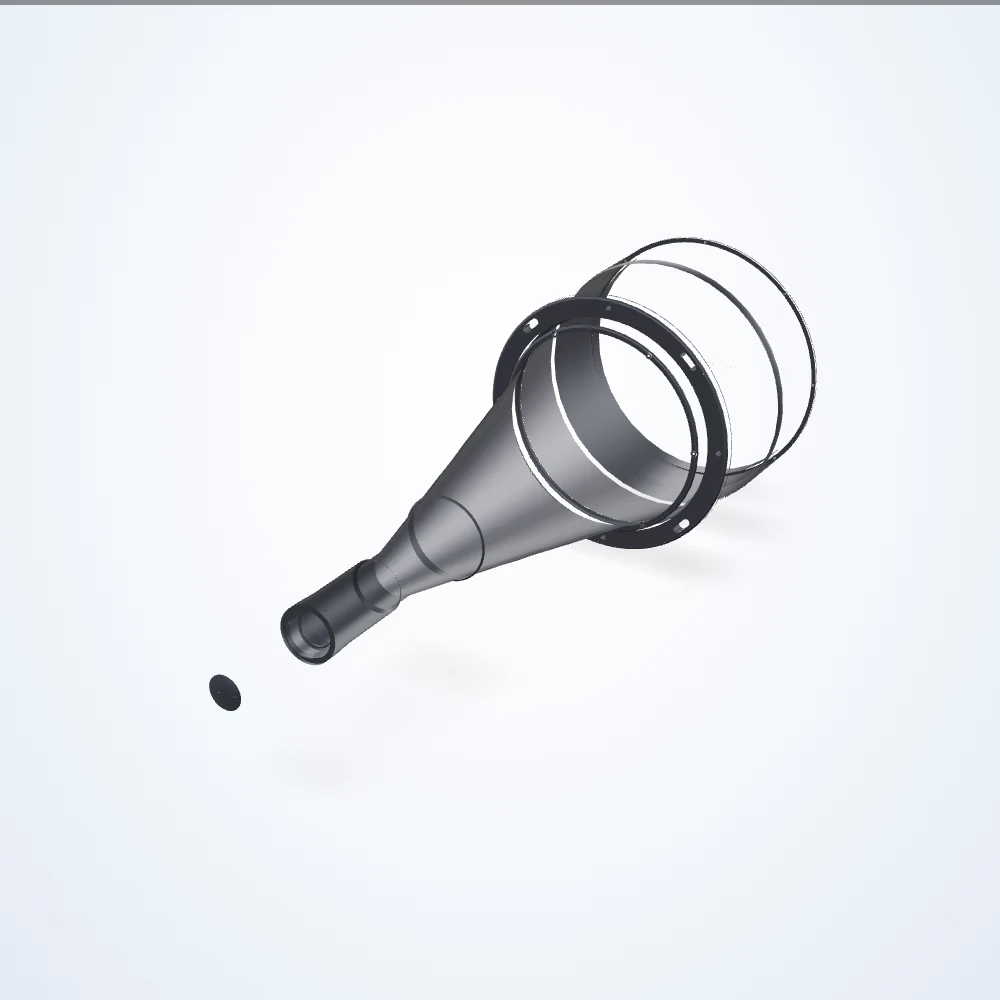

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.115× telecentric lens, APS-H, F-Mount (LS-TCL-0169)

Model LS-TCL-0169

0.115× telecentric lens, APS-H, F-Mount. Working distance 542.8 mm. Depth of field 49.9 mm.

3D model (STEP) - LS-TCL-0169

Specifications

Model	LS-TCL-0169
APS-C IMX342	194.43 x 145.83 mm
APS-H Python 25K	200.35 x 200.35 mm
Depth Of Field	49.9 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.08
Filter Thread	No Filter Threads
Front Diameter	322 mm
Image Circle Diameter	33.5 mm
Imager Format	APS-H
Lens Type	Telecentric
Line 4k-7µm	249.3 mm
Magnification	0.115×
Mount	F-Mount
Python 16K	160.28 x 160.28 mm
Resolution (Pixel Size)	44 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.08°
Working Distance	542.8 mm
Working ƒ/N	f/8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
