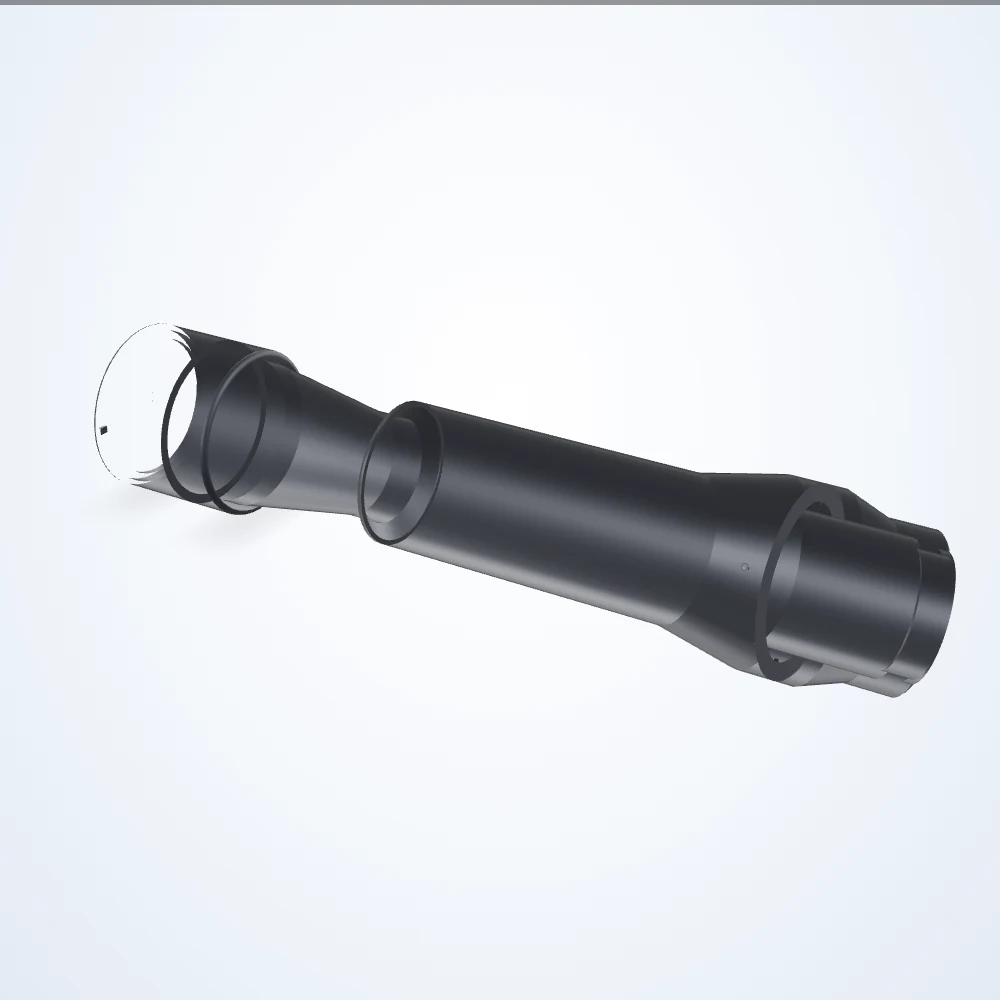

0.838× telecentric lens, APS-H, M42-mount (LS-TCL-0152)

Model LS-TCL-0152

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 101.9 mm; depth of field 1.4 mm.

Datasheet (PDF) - LS-TCL-0152 3D model (STEP) - LS-TCL-0152

Specifications

Model	LS-TCL-0152
Magnification	0.838×
Working distance	101.9 mm
Sensor format	APS-H
Mount	M42-mount
Depth of field	1.4 mm
Aps-c IMX342	26.68 x 20.01 mm
Aps-h python 25K	27.49 x 27.49 mm
Dimensions approximate	304.1 x 61 x 61 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.08
Filter thread	No Filter Threads
Front diameter	61 mm
Image circle	33.5 mm
Lens type	Telecentric
Line 4k-7µm	34.21 mm
Operating temperature range	0 to 40°C
Python 16K	22 x 22 mm
Resolution (pixel size)	9 μm
Storage temperature range	0 to 50°C
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°
Working ƒ/n	f/12
Weight	1034 Grams
