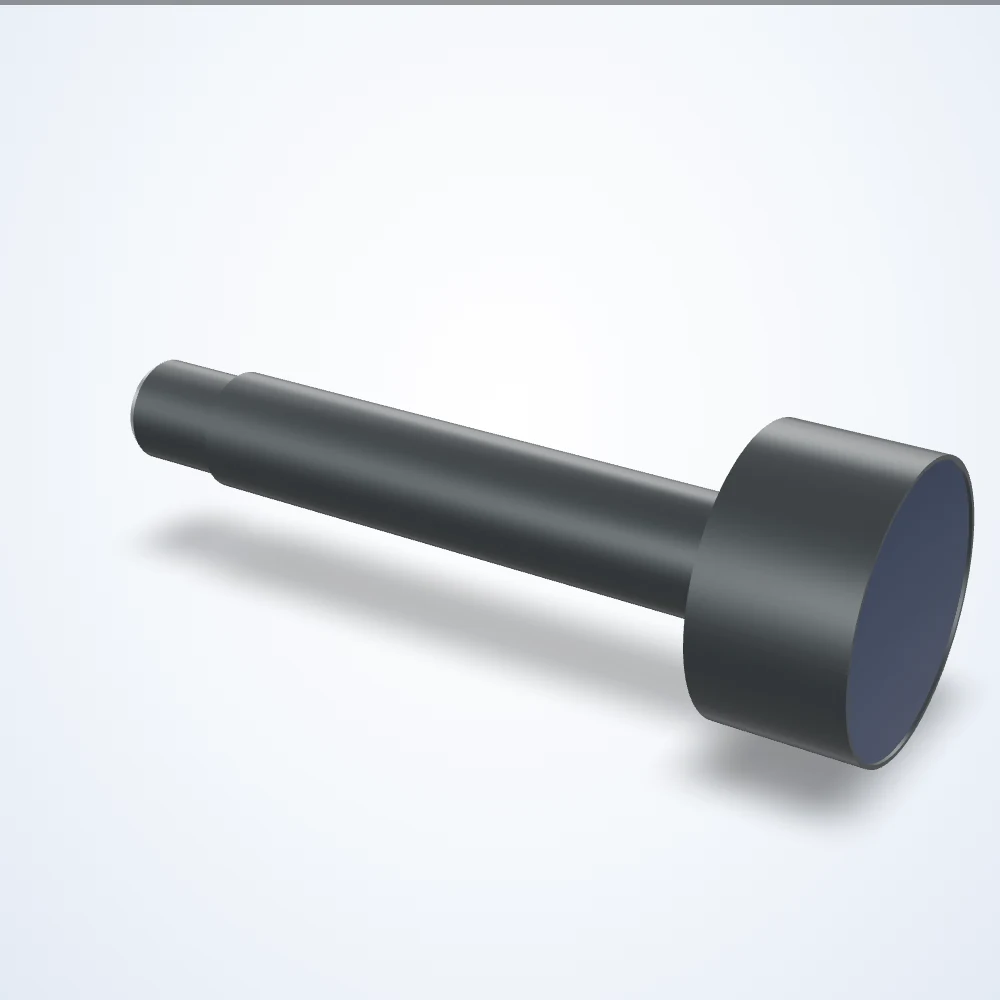

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.306× telecentric lens, APS-H, F-Mount (LS-TCL-0161)
Model LS-TCL-0161
0.306× telecentric lens, APS-H, F-Mount. Working distance 256 mm. Depth of field 7 mm.
Specifications
| Model | LS-TCL-0161 |
|---|---|
| APS-C IMX342 | 73.07 x 54.8 mm |
| APS-H Python 25K | 75.29 x 75.29 mm |
| Depth Of Field | 7 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Front Diameter | 143 mm |
| Image Circle Diameter | 33.5 mm |
| Lens Type | Telecentric |
| Line 4k-7µm | 93.69 mm |
| Magnification | 0.306× |
| Python 16K | 60.24 x 60.24 mm |
| Resolution (Pixel Size) | 17 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 256 mm |
| Working ƒ/N | f/8 |
| Mount | F |
| Weight (g) | 2699 |
| Dimensions (dia. x length, mm) | 143 x 423.69 |
| Front clamping diameter | Ø143 h8 |
| Other diameters | Ø54 (neck), Ø61 h8 (rear clamping), Ø64 (mount ring) |
| Front view inner diameter | Ø131 |
| Flange distance | 46.5 mm (F-mount) |
| Rear protrusion behind mount | 4.3 mm |
| Phase adjustment | yes |
