Telecentric lenses

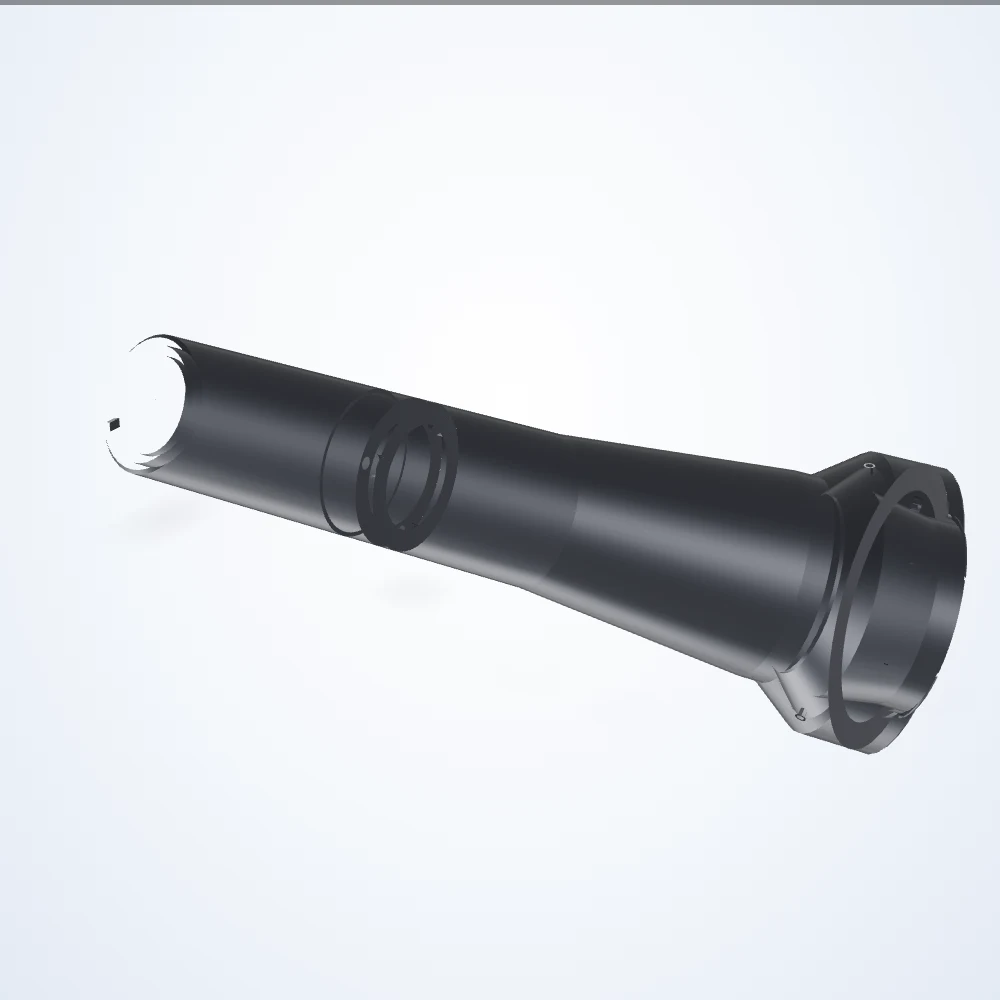

1.825× telecentric lens, APS-H, F-mount (LS-TCL-0147)
Model LS-TCL-0147
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 42.3 mm; depth of field 0.4 mm.
Specifications
| Model | LS-TCL-0147 |
|---|---|
| Magnification | 1.825× |
| Working distance | 42.3 mm |
| Sensor format | APS-H |
| Mount | F-Mount |
| Depth of field | 0.4 mm |
| Aps-c IMX342 | 12.25 x 9.19 mm |
| Aps-h python 25K | 12.62 x 12.62 mm |
| Dimensions approximate | 213 x 37. x 37.7 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Front diameter | 37.7 mm |
| Image circle | 33.5 mm |
| Lens type | Telecentric |
| Line 4k-7µm | 15.71 mm |
| Operating temperature range | 0 to 40°C |
| Python 16K | 10.1 x 10.1 mm |
| Resolution (pixel size) | 6 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/16 |
| Weight | 589 Grams |
