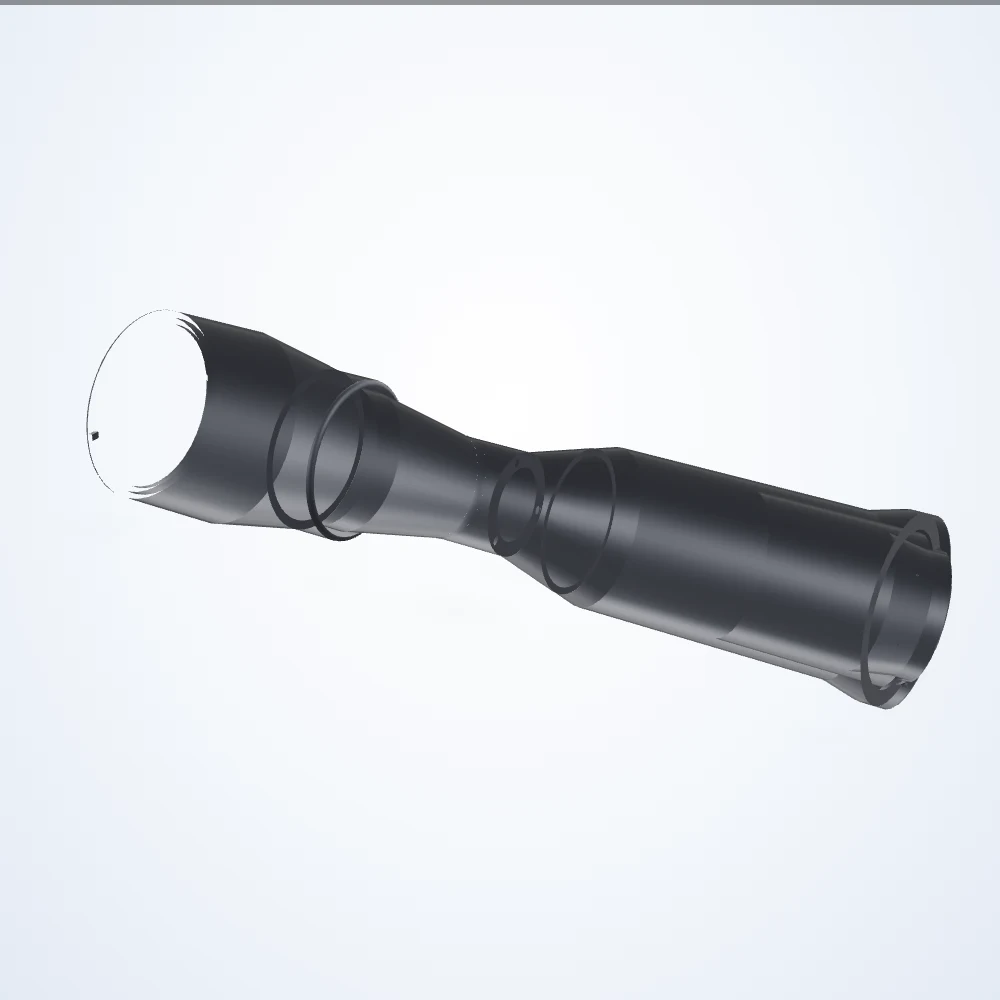

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.75× telecentric lens, 35mm Full Frame, F-mount (LS-TCL-0193)
Model LS-TCL-0193
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 125.6 mm; depth of field 2.3 mm.
Specifications
| Model | LS-TCL-0193 |
|---|---|
| Magnification | 0.75× |
| Working distance | 125.6 mm |
| Sensor format | 35mm Full Frame |
| Mount | F-Mount |
| Depth of field | 2.3 mm |
| Aps-c IMX342 | 29.81 x 22.36 mm |
| CHR70M | 41.33 x 29.32 mm |
| CMV50000 | 48.58 x 36.82 mm |
| Dimensions approximate | 315.2 x 75 x 75 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ full frame | 48 x 32 mm |
| Front diameter | 75 mm |
| Image circle | 43.3 mm |
| Lens type | Telecentric |
| Line 8k-5µm | 54.4 mm |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 14 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.06° |
| Working ƒ/n | f/16 |
| Weight | 965 Grams |
