Home / Lenses / Telecentric lenses / 0.1× telecentric lens, 2.4", M42-Mount

0.1× telecentric lens, 2.4", M42-Mount (LS-TCL-0172)

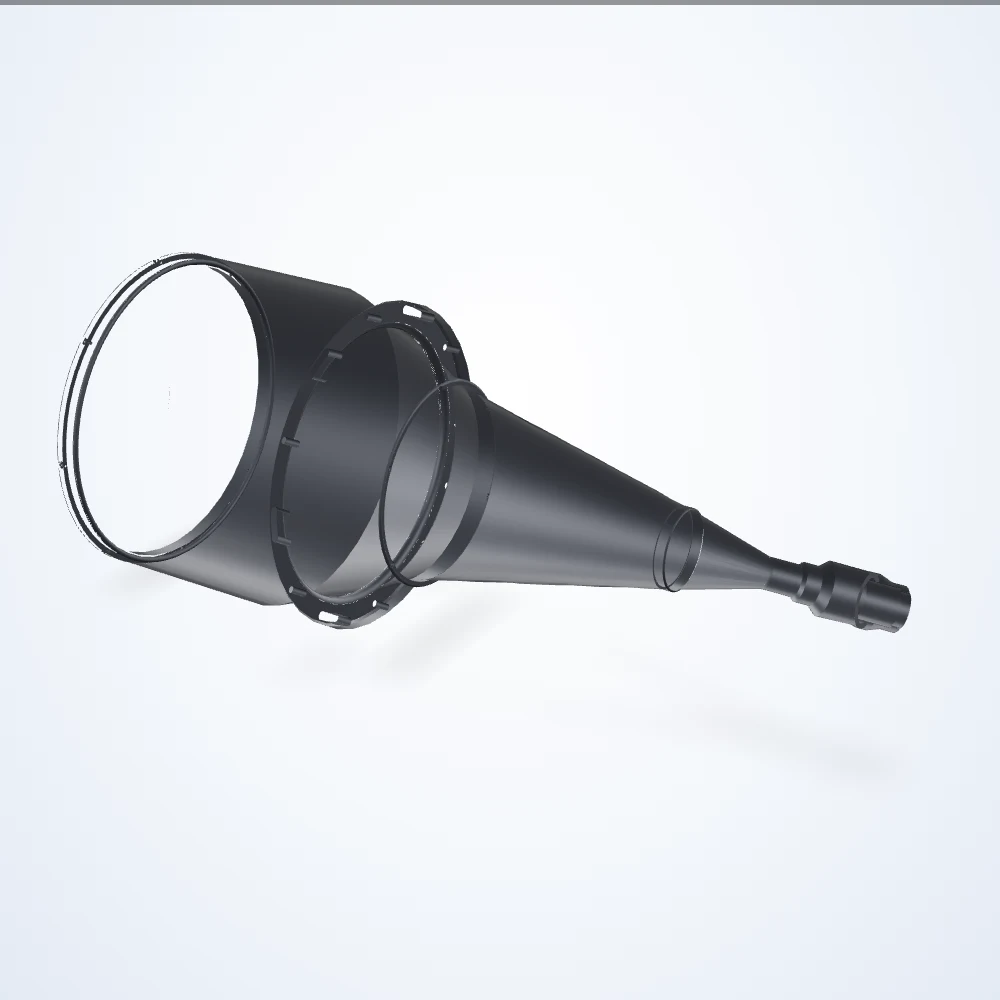

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.1× telecentric lens, 2.4", M42-Mount (LS-TCL-0172)

Model LS-TCL-0172

0.1× telecentric lens, 2.4", M42-Mount. Working distance 500 mm. Depth of field 66 mm.

Datasheet (PDF) - LS-TCL-0172 3D model (STEP) - LS-TCL-0172

Specifications

Model	LS-TCL-0172
APS-C IMX342	223.60 x 167.7 mm
APS-H Python 25K	230.4 x 230.4 mm
Depth Of Field	66 mm
Distortion Maximum (%)	< 0.15
Distortion Typical (%)	< 0.1
Filter Thread	No Filter Threads
Front Diameter	417 mm
Image Circle Diameter	37.2 mm
Imager Format	2.4"
Lens Type	Telecentric
Line 4k-7µm	286.7 mm
Magnification	0.1×
Mount	M42-Mount
Python 16K	184.32 x 184.32 mm
Resolution (Pixel Size)	51 μm
Telecentricity Maximum	0.15°
Telecentricity Typical	< 0.1°
Working Distance	500 mm
Working ƒ/N	f/8
