Machine vision lenses
Bi-telecentric and fixed-magnification lenses (LS-TCL-S59)
- 26 models
- from $1,699.00
- Series LS-TCL-S59
The Bi-telecentric and fixed-magnification lenses (LS-TCL-S59) is a range of 26 machine vision lenses from LumaSpec Vision, from $1,699.00. It comes in 26 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.164x, WD 82 mm, 1/2.5", C-mount, 0.185x, WD 61 mm, 1/2.5", C-mount, 0.205x, WD 82 mm, 1/1.8", C-mount, 0.231x, WD 61 mm, 1/1.8", C-mount, 0.259x, WD 82 mm, 2/3", C-mount, 0.292x, WD 61 mm, 2/3", C-mount, 0.377x, WD 82 mm, 1", C-mount, 0.418x, WD 82 mm, 1.1", C-mount, 0.426x, WD 61 mm, 1", C-mount, 0.472x, WD 61 mm, 1.1", C-mount, 0.536x, WD 82 mm, 4/3", 0.545x, WD 82 mm, 4/3", 0.605x, WD 61 mm, 4/3", 0.615x, WD 61 mm, 4/3", 0.659x, WD 82 mm, 1.75", 0.744x, WD 61 mm, 1.75" and 10 more
- Type
- Telecentric
- Mount
- M58, M72, C-mount, F-mount
- Image circle
- Up to 8 mm, 8-11 mm, 16-22 mm, 22-30 mm, 30-45 mm, 45-60 mm
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large
Features
- The 0.536x version is one step up in this series
- Covers sensors up to 1.1" (18.4 mm diagonal) without dark corners; a larger sensor would vignette
- 0.1 % distortion: a corner point of the 39 mm field lands within about 19.5 µm of its true place
- Image-side aperture F6.2
- A larger field than 88 % of the other lenses in the series
- Covers sensors up to 1/1.8" (9 mm diagonal) without dark corners; a larger sensor would vignette
- Image-side aperture F4.6
- The 0.418x and 0.472x versions sit on either side of it in the series
All 26 models in the Bi-telecentric and fixed-magnification lenses (LS-TCL-S59)
| Link | ||||||
|---|---|---|---|---|---|---|

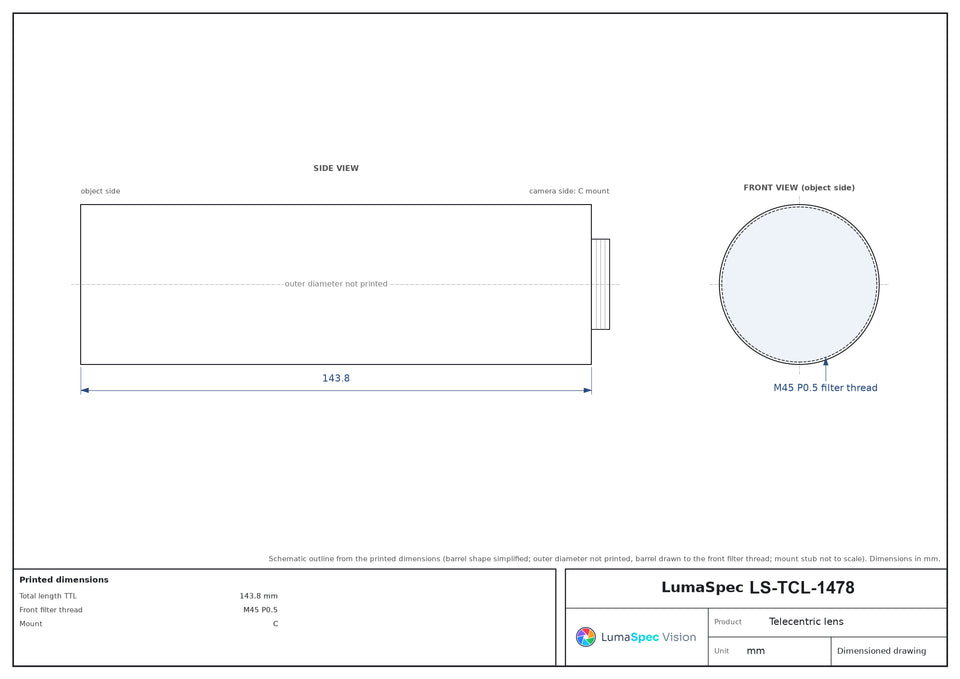

| LS-TCL-1478 | 0.472x, WD 61 mm, 1.1", C-mount | 1.1" | 0.472 | 61±1 | $1,699.00 | View |
| LS-TCL-1567 | 0.231x, WD 61 mm, 1/1.8", C-mount | 1/1.8" | 0.231 | 61±1 | $1,699.00 | View |
| LS-TCL-1408 | 0.426x, WD 61 mm, 1", C-mount | 1" | 0.426 | 61±1 | $1,699.00 | View |
| LS-TCL-1724 | 0.605x, WD 61 mm, 4/3" | 4/3" | 0.605 | 61±1 | $1,699.00 | View |
| LS-TCL-1877 | 0.292x, WD 61 mm, 2/3", C-mount | 2/3" | 0.292 | 61±1 | $1,699.00 | View |
| LS-TCL-1815 | 0.744x, WD 61 mm, 1.75" | 1.75" | 0.744 | 61±1 | $1,709.00 | View |
| LS-TCL-1441 | 0.846x, WD 61 mm, 2" | 2" | 0.846 | 61±1 | $1,709.00 | View |
| LS-TCL-1687 | 0.615x, WD 61 mm, 4/3" | 4/3" | 0.615 | 61±1 | $1,709.00 | View |
| LS-TCL-1759 | 0.185x, WD 61 mm, 1/2.5", C-mount | 1/2.5" | 0.185 | 61±1 | $1,739.00 | View |
| LS-TCL-1480 | 0.418x, WD 82 mm, 1.1", C-mount | 1.1" | 0.418 | 82±1 | $1,809.00 | View |
| LS-TCL-1569 | 0.205x, WD 82 mm, 1/1.8", C-mount | 1/1.8" | 0.205 | 82±1 | $1,809.00 | View |
| LS-TCL-1410 | 0.377x, WD 82 mm, 1", C-mount | 1" | 0.377 | 82±1 | $1,809.00 | View |
| LS-TCL-1879 | 0.259x, WD 82 mm, 2/3", C-mount | 2/3" | 0.259 | 82±1 | $1,809.00 | View |
| LS-TCL-1817 | 0.659x, WD 82 mm, 1.75" | 1.75" | 0.659 | 82±1 | $1,819.00 | View |
| LS-TCL-1443 | 0.75x, WD 82 mm, 2" | 2" | 0.75 | 82±1 | $1,819.00 | View |
| LS-TCL-1689 | 0.545x, WD 82 mm, 4/3" | 4/3" | 0.545 | 82±1 | $1,819.00 | View |
| LS-TCL-1726 | 0.536x, WD 82 mm, 4/3" | 4/3" | 0.536 | 82±1 | $1,819.00 | View |
| LS-TCL-1601 | 1.128x, WD 61 mm | Full frame (35 mm) | 1.128 | 61±1 | $1,849.00 | View |
| LS-TCL-1629 | 1.118x, WD 61 mm, M58-mount | Full frame (35 mm) | 1.118 | 61±1 | $1,849.00 | View |
| LS-TCL-1603 | 1x, WD 82 mm | Full frame (35 mm) | 1 | 82±1 | $1,949.00 | View |
| LS-TCL-1631 | 0.991x, WD 82 mm, M58-mount | Full frame (35 mm) | 0.991 | 82±1 | $1,949.00 | View |
| LS-TCL-1656 | 1x, WD 61 mm | 1 | 61±1 | $1,949.00 | View | |
| LS-TCL-1658 | 0.886x, WD 82 mm | 0.886 | 82±1 | $1,949.00 | View | |
| LS-TCL-1761 | 0.164x, WD 82 mm, 1/2.5", C-mount | 1/2.5" | 0.164 | 82±1 | $2,139.00 | View |
| LS-TCL-1543 | 1.513x, WD 61 mm, M72-mount | 1.513 | 61±1 | $2,229.00 | View | |
| LS-TCL-1544 | 1.341x, WD 82 mm, M72-mount | 1.341 | 82±1 | $2,259.00 | View |
