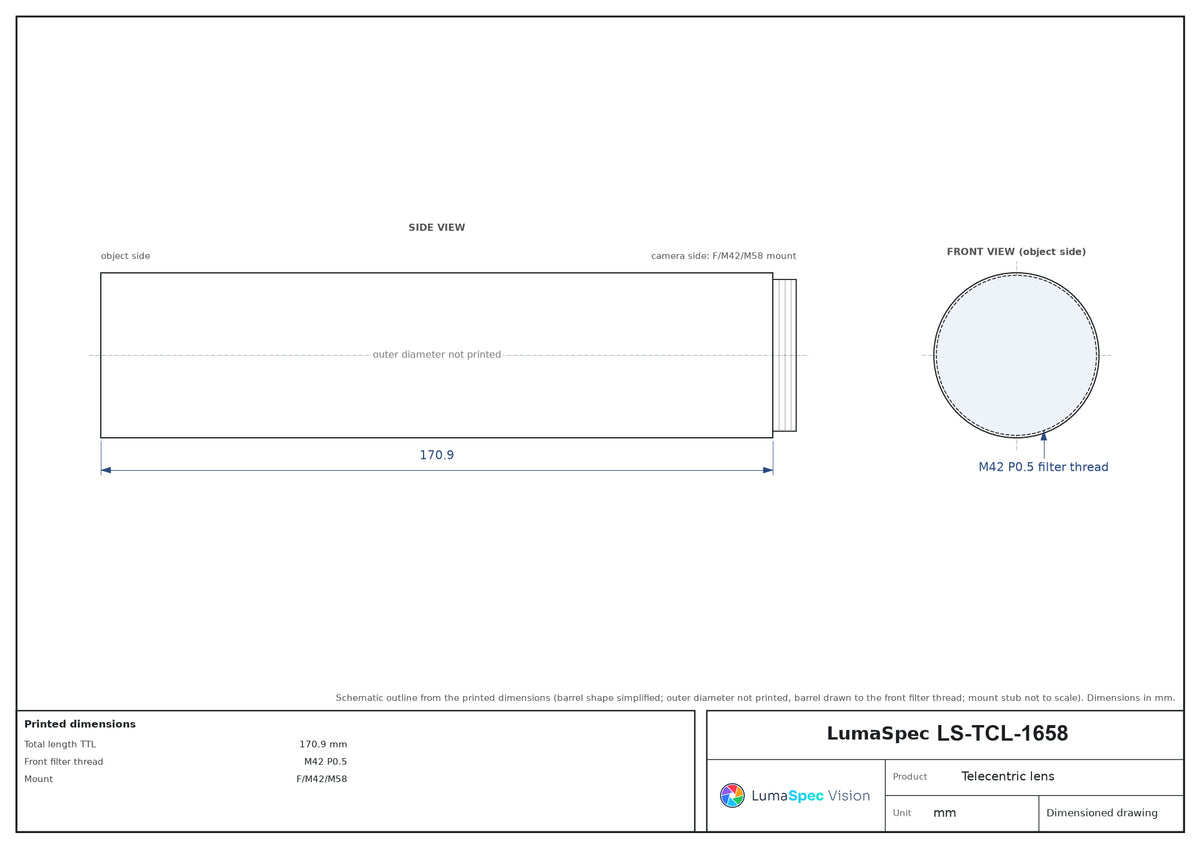

  • LS-TCL-1658 dimensions (mm)

Telecentric lenses

0.886x, WD 82 mm Telecentric Lens (LS-TCL-1658)

Model LS-TCL-1658

  • Magnification0.886x
  • MountF-mount
  • SensorAPS-H
  • Working distance82±1
  • Aperture9.2
  • Field of view44
$1,949.00

Ships in 2-3 weeks

1.08 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.886x, WD 82 mm Telecentric Lens (LS-TCL-1658)LS-TCL-1658

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.886x, WD 82 mm Telecentric Lens. At a glance: magnification 0.886x; working distance 82±1 mm; max sensor size 39 mm; object field of view 44 mm; image-side f/# 9.2.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1658

Optics

Object field of view (dia. mm)44
Magnification (x)0.886
Working distance (mm)82±1
Image-side F/#9.2
Image-side MTF30 (lp/mm)>85
Theoretical depth of field (mm)±1.0@F20
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)Non-telecentric
Object-to-image distance I/O (mm)299±1
Total length TTL (mm)170.9
Front filter threadM42 P0.5

Sensor and imaging

Max sensor size (dia. mm)39

Mechanical

MountF/M42/M58
Net weight (kg)0.7
Shipping weight (estimated)1.08 kg

Photo shows a representative model of this series; see the specifications for this model.
