0.929x, WD 118 mm, M58-mount Telecentric Lens (LS-TCL-1657)
Model LS-TCL-1657
- Magnification0.929x
- MountM58
- SensorAPS-H
- Working distance118±3
- Aperture15.3
- Field of view42
$1,949.00
Ships in 2-3 weeks
1.56 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.929x, WD 118 mm, M58-mount Telecentric Lens. At a glance: magnification 0.929x; working distance 118±3 mm; max sensor size 39 mm; object field of view 42 mm; image-side f/# 15.3.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1657 |
|---|
Optics
| Object field of view (dia. mm) | 42 |
|---|---|
| Magnification (x) | 0.929 |
| Working distance (mm) | 118±3 |
| Image-side F/# | 15.3 |
| Image-side MTF30 (lp/mm) | >55 |
| Theoretical depth of field (mm) | ±0.9@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 357±3 |

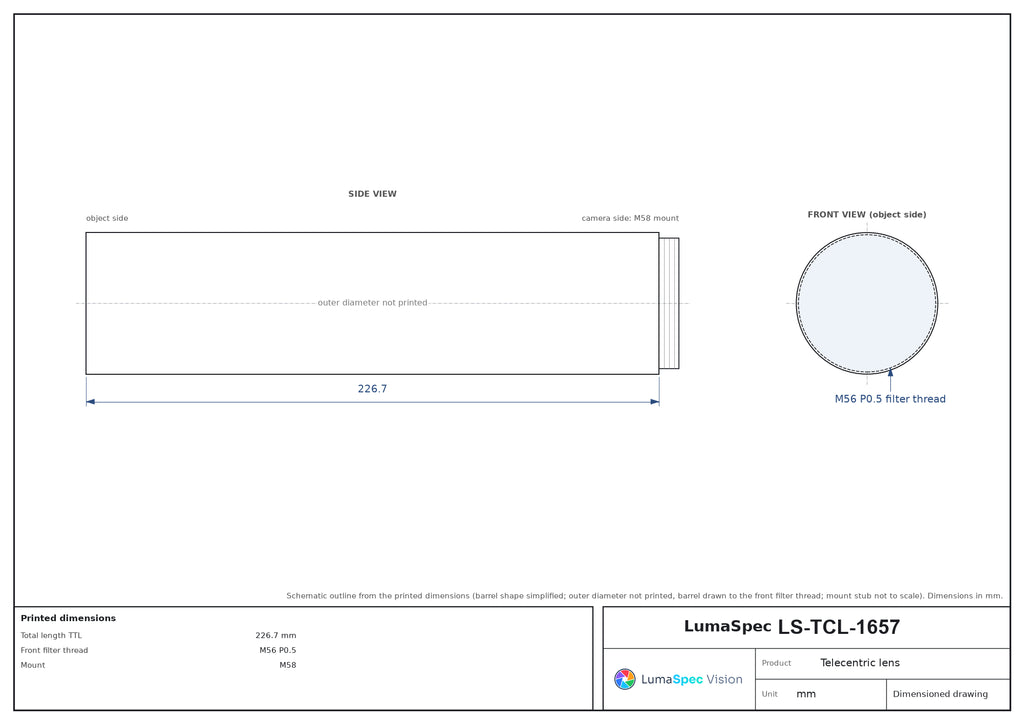

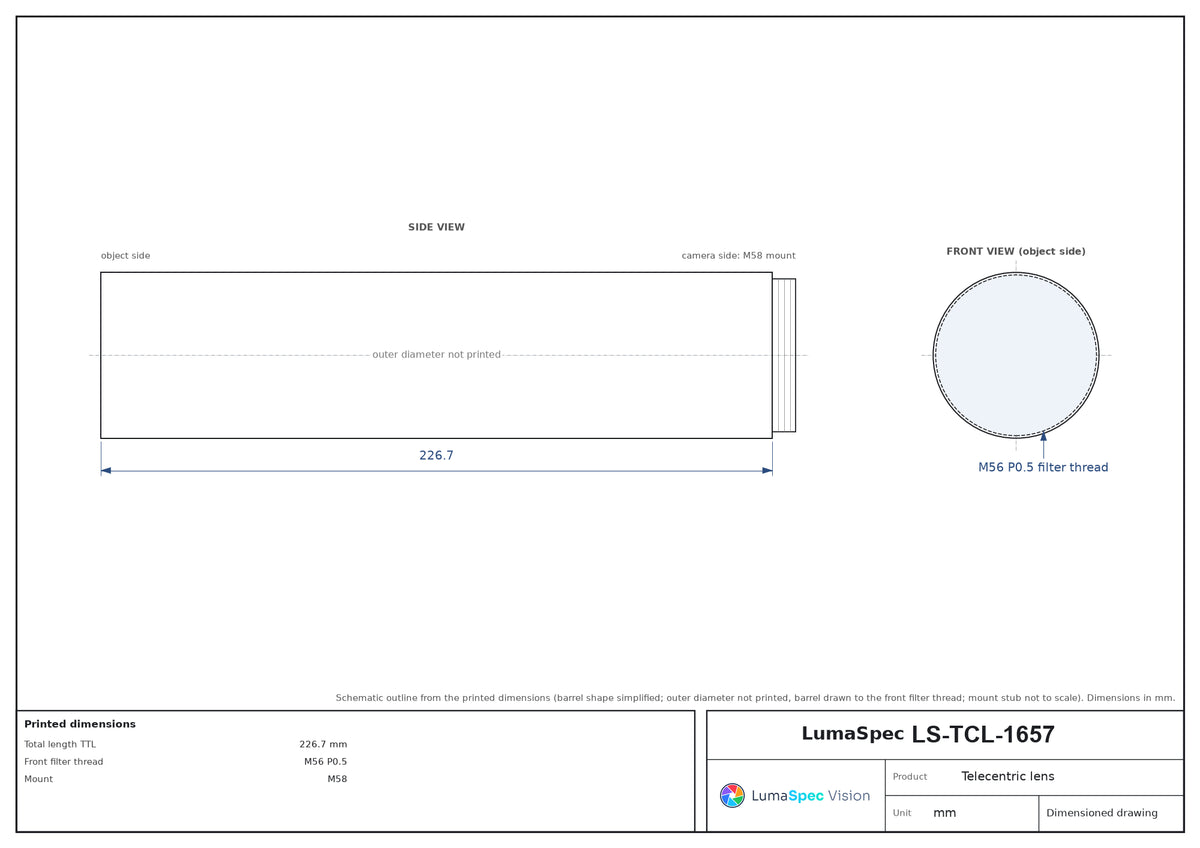

| Total length TTL (mm) | 226.7 |
| Front filter thread | M56 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 39 |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 1.042 |
| Shipping weight (estimated) | 1.56 kg |
Photo shows a representative model of this series; see the specifications for this model.
