1.038x, WD 118 mm, M58-mount Telecentric Lens (LS-TCL-1630)
Model LS-TCL-1630
- Magnification1.038x
- MountM58
- SensorFull frame
- Working distance118±3
- Aperture17.1
- Field of view42
$2,049.00
In stock - ships the same business day (2 available, order by 2 PM ET)
1.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.038x, WD 118 mm, M58-mount Telecentric Lens. At a glance: magnification 1.038x; working distance 118±3 mm; max sensor size 43.6 mm (35mm Full); object field of view 42 mm; image-side f/# 17.1.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1630 |
|---|
Optics
| Object field of view (dia. mm) | 42 |
|---|---|
| Magnification (x) | 1.038 |
| Working distance (mm) | 118±3 |
| Image-side F/# | 17.1 |
| Image-side MTF30 (lp/mm) | >50 |
| Theoretical depth of field (mm) | ±0.7@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 378±3 |

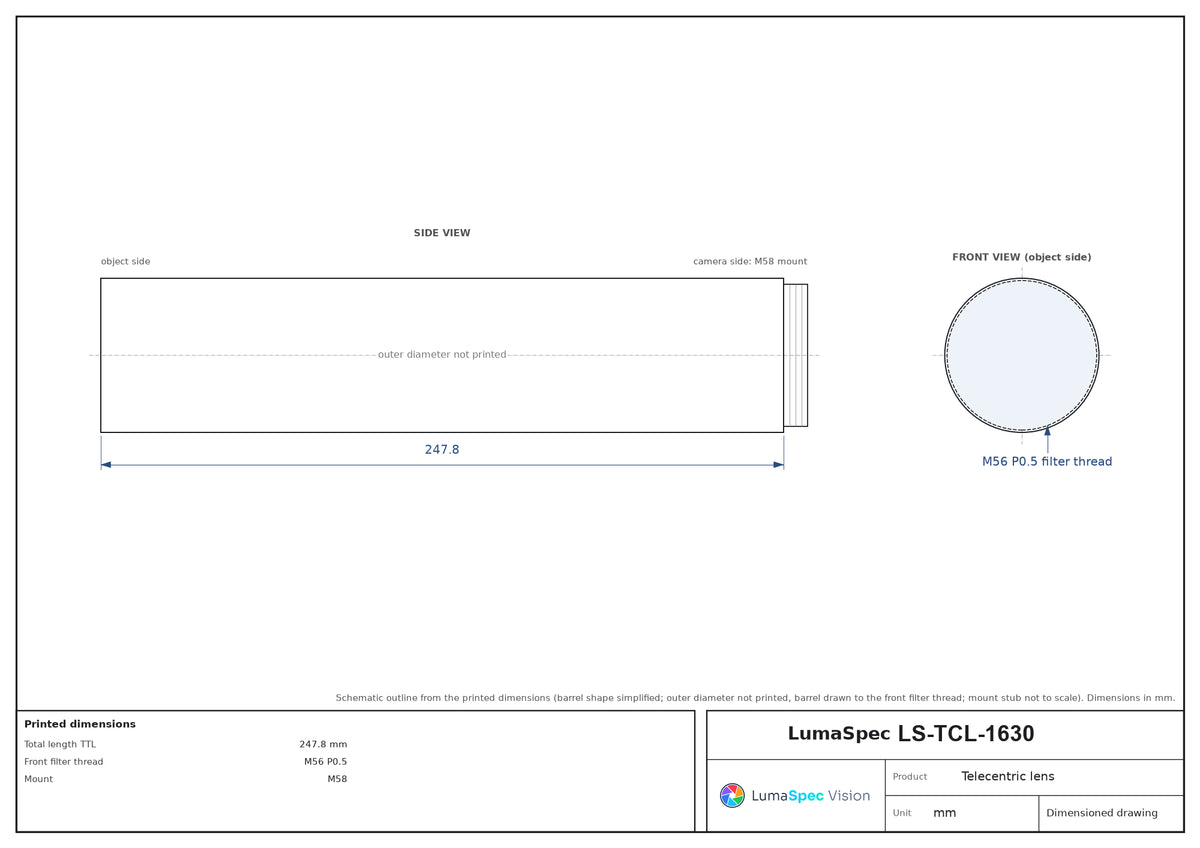

| Total length TTL (mm) | 247.8 |
| Front filter thread | M56 P0.5 |
| Measured depth of field as shipped (mm) | 1.2 |
Sensor and imaging
| Max sensor size (dia. mm) | 43.6(35mm Full) |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 1.182 |
| Shipping weight (estimated) | 1.75 kg |
Photo shows a representative model of this series; see the specifications for this model.
