Backlights

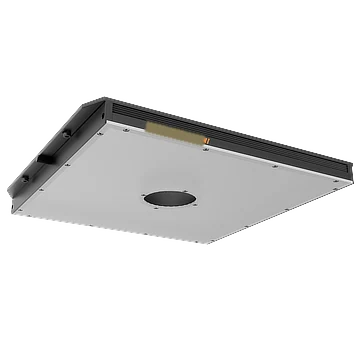

Flat lights with center hole (LS-BKL-S126)
- 53 models
- from $209.00
- Series LS-BKL-S126
The Flat lights with center hole (LS-BKL-S126) is a range of 53 backlights from LumaSpec Vision, from $209.00. It comes in 44 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, Blue, 50 x 50 mm, Red, 50 x 50 mm, White, 100 x 100 mm, Blue, 100 x 100 mm, Red, 100 x 100 mm, White, 120 x 120 mm, Blue, 120 x 120 mm, Red, 120 x 120 mm, White, 150 x 150 mm, Blue, 150 x 150 mm, Red, 150 x 150 mm, White, 200 x 200 mm, Blue, 200 x 200 mm, Red, 200 x 200 mm, White, 250 x 150 mm, Blue and 28 more
- Type
- With centre hole
- Voltage
- 24 V
- Colour
- Red, Blue, White, Infrared
- Wavelength
- 940 nm
Features
- Adopts high-density array LED design.
- Adopts middle opening design (circular hole/square hole) to achieve front lighting.
- Provides side mounting lugs to achieve flexible installation.
All 53 models in the Flat lights with center hole (LS-BKL-S126)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1363 | 50 x 50 mm, Blue | 50 mm × 50 mm | Blue | 2.0 W | $209.00 | View |
| LS-BKL-1364 | 50 x 50 mm, Red | 50 mm × 50 mm | Red | 1.7 W | $209.00 | View |
| LS-BKL-1365 | 50 x 50 mm, White | 50 mm × 50 mm | White | 2.2 W | $209.00 | View |
| LS-BKL-1368 | 100 x 100 mm, White | 100 mm × 100 mm | White | 11 W | $279.00quote | View |
| LS-BKL-1366 | 100 x 100 mm, Blue | 100 mm × 100 mm | Blue | 10.5 W | $279.00 | View |
| LS-BKL-1367 | 100 x 100 mm, Red | 100 mm × 100 mm | Red | 8.8 W | $279.00 | View |
| LS-BKL-1369 | 100 x 100 mm, White | 100 mm × 100 mm | White | 12 W | $279.00 | View |
| LS-BKL-1372 | 120 x 120 mm, White | 120 mm × 120 mm | White | 16 W | $309.00quote | View |
| LS-BKL-1370 | 120 x 120 mm, Blue | 120 mm × 120 mm | Blue | 15.3 W | $309.00 | View |
| LS-BKL-1371 | 120 x 120 mm, Red | 120 mm × 120 mm | Red | 13 W | $309.00 | View |
| LS-BKL-1373 | 120 x 120 mm, White | 120 mm × 120 mm | White | 17.6 W | $309.00 | View |
| LS-BKL-1374 | 150 x 150 mm, Blue | 150 mm × 150 mm | Blue | 26.4 W | $389.00 | View |
| LS-BKL-1375 | 150 x 150 mm, Red | 150 mm × 150 mm | Red | 19.5 W | $389.00 | View |
| LS-BKL-1376 | 150 x 150 mm, White | 150 mm × 150 mm | White | 27.7 W | $389.00 | View |
| LS-BKL-1383 | 250 x 150 mm, White | 250 mm × 150 mm | White | 41 W | $529.00quote | View |
| LS-BKL-1381 | 250 x 150 mm, Blue | 250 mm × 150 mm | Blue | 34.7 W | $529.00 | View |
| LS-BKL-1382 | 250 x 150 mm, Red | 250 mm × 150 mm | Red | 30.8 W | $529.00 | View |
| LS-BKL-1384 | 250 x 150 mm, White | 250 mm × 150 mm | White | 39.4 W | $529.00 | View |
| LS-BKL-1379 | 200 x 200 mm, White | 200 mm × 200 mm | White | 48 W | $549.00quote | View |
| LS-BKL-1377 | 200 x 200 mm, Blue | 200 mm × 200 mm | Blue | 41.4 W | $549.00 | View |
| LS-BKL-1378 | 200 x 200 mm, Red | 200 mm × 200 mm | Red | 34.1 W | $549.00 | View |
| LS-BKL-1380 | 200 x 200 mm, White | 200 mm × 200 mm | White | 48 W | $549.00 | View |
| LS-BKL-1387 | 250 x 200 mm, White | 250 mm × 200 mm | White | 53 W | $639.00quote | View |
| LS-BKL-1385 | 250 x 200 mm, Blue | 250 mm × 200 mm | Blue | 48 W | $639.00 | View |
| LS-BKL-1386 | 250 x 200 mm, Red | 250 mm × 200 mm | Red | 45.7 W | $639.00 | View |
| LS-BKL-1388 | 250 x 200 mm, White | 250 mm × 200 mm | White | 58.6 W | $639.00 | View |
| LS-BKL-1397 | 300 x 200 mm, White | 300 mm × 200 mm | White | 54 W | $719.00quote | View |
| LS-BKL-1395 | 300 x 200 mm, IR 940 nm | 300 mm × 200 mm | Infrared | 43.2 W | $719.00 | View |
| LS-BKL-1394 | 300 x 200 mm, Blue | 300 mm × 200 mm | Blue | 46.7 W | $719.00 | View |
| LS-BKL-1396 | 300 x 200 mm, Red | 300 mm × 200 mm | Red | 45.9 W | $719.00quote | View |
| LS-BKL-1398 | 300 x 200 mm, White | 300 mm × 200 mm | White | 54.6 W | $719.00 | View |
| LS-BKL-1391 | 250 x 250 mm, Red | 250 mm × 250 mm | Red | 48 W | $739.00quote | View |
| LS-BKL-1390 | 250 x 250 mm, IR 940 nm | 250 mm × 250 mm | Infrared | 52 W | $739.00quote | View |
| LS-BKL-1389 | 250 x 250 mm, Blue | 250 mm × 250 mm | Blue | 48.3 W | $739.00 | View |
| LS-BKL-1392 | 250 x 250 mm, Red | 250 mm × 250 mm | Red | 42.5 W | $739.00 | View |
| LS-BKL-1393 | 250 x 250 mm, White | 250 mm × 250 mm | White | 55.2 W | $739.00 | View |
| LS-BKL-1399 | 300 x 300 mm, Blue | 300 mm × 300 mm | Blue | 65.2 W | $969.00 | View |
| LS-BKL-1400 | 300 x 300 mm, Red | 300 mm × 300 mm | Red | 60.2 W | $969.00 | View |
| LS-BKL-1401 | 300 x 300 mm, White | 300 mm × 300 mm | White | 81.6 W | $969.00 | View |
| LS-BKL-1404 | 400 x 300 mm, White | 400 mm × 300 mm | White | 83 W | $1,209.00quote | View |
| LS-BKL-1402 | 400 x 300 mm, Blue | 400 mm × 300 mm | Blue | 75 W | $1,209.00 | View |
| LS-BKL-1403 | 400 x 300 mm, Red | 400 mm × 300 mm | Red | 63.4 W | $1,209.00 | View |
| LS-BKL-1405 | 400 x 300 mm, White | 400 mm × 300 mm | White | 92.1 W | $1,209.00 | View |
| LS-BKL-1408 | 450 x 320 mm, White | 450 mm × 320 mm | White | 198 W | $1,379.00quote | View |
| LS-BKL-1406 | 450 x 320 mm, Blue | 450 mm × 320 mm | Blue | 170.5 W | $1,379.00 | View |
| LS-BKL-1407 | 450 x 320 mm, Red | 450 mm × 320 mm | Red | 162.1 W | $1,379.00 | View |
| LS-BKL-1409 | 450 x 320 mm, White | 450 mm × 320 mm | White | 218.3 W | $1,379.00 | View |
| LS-BKL-1410 | 600 x 400 mm, Blue | 600 mm × 400 mm | Blue | 152.3 W | $1,549.00 | View |
| LS-BKL-1411 | 600 x 400 mm, Red | 600 mm × 400 mm | Red | 137.3 W | $1,549.00 | View |
| LS-BKL-1412 | 600 x 400 mm, White | 600 mm × 400 mm | White | 194 W | $1,549.00 | View |
| LS-BKL-1413 | 620 x 620 mm, Blue | 620 mm × 620 mm | Blue | 233.9 W | $2,339.00 | View |
| LS-BKL-1414 | 620 x 620 mm, Red | 620 mm × 620 mm | Red | 237.1 W | $2,339.00 | View |
| LS-BKL-1415 | 620 x 620 mm, White | 620 mm × 620 mm | White | 298.8 W | $2,339.00 | View |
