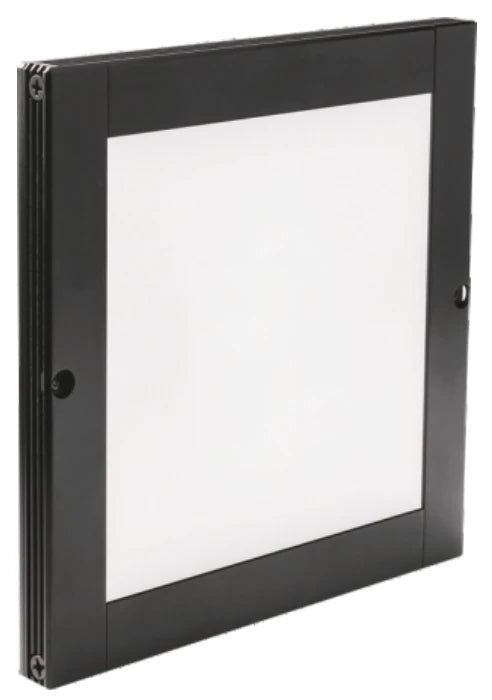

Parallel side back light source (LS-BKL-S88)
- 10 models
- from $209.00
- Series LS-BKL-S88
The Parallel side back light source (LS-BKL-S88) is a range of 10 backlights from LumaSpec Vision, from $209.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50 x 50 mm, 90 x 90 mm, 100 x 100 mm, 120 x 120 mm, 150 x 150 mm, 200 x 200 mm, 250 x 200 mm, 320 x 320 mm, 400 x 300 mm, 600 x 400 mm
- Colour
- Red, Green, Blue, White
- Type
- Collimated
- Voltage
- 24 V
Features
- Multilateral lights make the overall uniformity
- Ultra-thin design, can meet different installation space requirements
- Various installation methods for convenient mounting
- Special optical material design, simple structure, can eliminate the shadow
Typical uses
- High precision dimension measuring
- Inspection of foreign matter on metal surface
- Inspection of glue on metal surface
- Glass vessel inspection
- Screen positioning and fitting
- Optical fibre alignment
All 10 models in the Parallel side back light source (LS-BKL-S88)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-0807 | 50 x 50 mm | 50 x 50 | 10.5 | 82 | $209.00 | View |
| LS-BKL-0808 | 90 x 90 mm | 90 x 90 | 10.5 | 122 | $259.00 | View |
| LS-BKL-0809 | 100 x 100 mm | 100 x 100 | 10.5 | 132 | $279.00 | View |
| LS-BKL-0810 | 120 x 120 mm | 120 x 120 | 10.5 | 152 | $309.00 | View |
| LS-BKL-0811 | 150 x 150 mm | 150 x 150 | 10.5 | 182 | $389.00 | View |
| LS-BKL-0812 | 200 x 200 mm | 200 x 200 | 10.5 | 232 | $539.00 | View |
| LS-BKL-0813 | 250 x 200 mm | 250 x 200 | 10.5 | 282 | $629.00 | View |
| LS-BKL-0814 | 320 x 320 mm | 320 x 320 | 10.5 | 352 | $1,049.00 | View |
| LS-BKL-0815 | 400 x 300 mm | 400 x 300 | 10.5 | 432 | $1,179.00 | View |
| LS-BKL-0816 | 600 x 400 mm | 600 x 400 | 11.5 | 632 | $1,459.00 | View |
