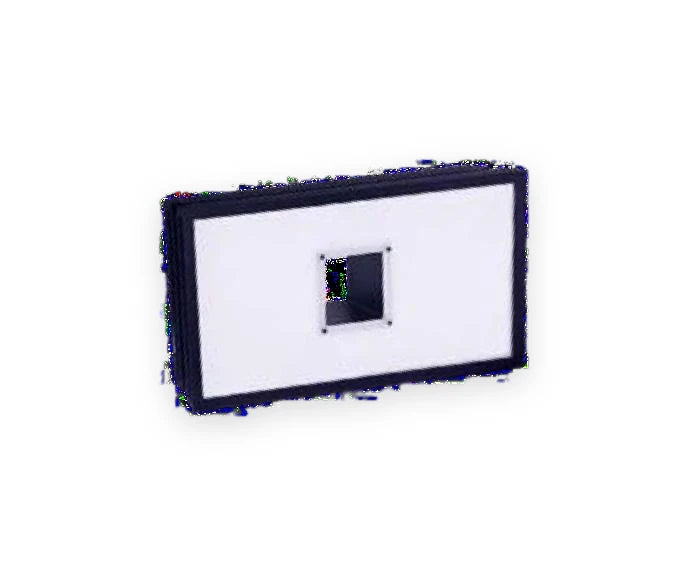

Surface light source with opening (LS-BKL-S118)
- 19 models
- from $329.00
- Series LS-BKL-S118
The Surface light source with opening (LS-BKL-S118) is a range of 19 backlights from LumaSpec Vision, from $329.00. It comes in 17 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 160 x 100 mm, 199 x 199 mm, 199 x 99 mm, 299 x 199 mm, 299 x 299 mm, 349 x 199 mm, 399 x 199 mm, 399 x 249 mm, 409 x 199 mm, 410 x 200 mm, 499 x 399 mm, 525 x 450 mm, 598.5 x 398.5 mm, 599 x 299 mm, 599 x 499 mm, 702 x 501 mm and 1 more
- Colour
- Red, Green, Blue, White, Infrared, UV
- Type
- Standard
- Voltage
- 24 V
Features
- Large-area uniform light emission
- High-array LED arrangement for high-brightness planar lighting
- Mainly used for perspective contour imaging and large-format uniform illumination
- Size can be customized according to different needs
- Square, rectangular or double openings
- M3 nut placement groove, groove depth 4.5 mm
Typical uses
- Various size measurements, shape inspection of transparent objects
- Shape inspection of electronic components and ICs
- Appearance positioning inspection
- Contour inspection
All 19 models in the Surface light source with opening (LS-BKL-S118)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BKL-1234 | 160 x 100 mm | 160 x 100 | 2 x dia. 35 (59 mm apart) | 20 | $329.00 | View |
| LS-BKL-1235 | 199 x 99 mm | 199 x 99 | 40 x 40 | 20 | $359.00 | View |
| LS-BKL-1236 | 199 x 199 mm | 199 x 199 | 80 x 80 | 20 | $539.00 | View |
| LS-BKL-1237 | 299 x 199 mm | 299 x 199 | 50 x 50 | 21 | $709.00 | View |
| LS-BKL-1238 | 299 x 199 mm | 299 x 199 | 60 x 60 | 21 | $719.00 | View |
| LS-BKL-1239 | 349 x 199 mm | 349 x 199 | 60 x 60 | 21 | $799.00 | View |
| LS-BKL-1240 | 399 x 199 mm | 399 x 199 | 2 x 60 x 60 (40 mm gap) | 21 | $879.00 | View |
| LS-BKL-1242 | 409 x 199 mm | 409 x 199 | 2 x 60 x 60 (90 mm gap) | 21 | $889.00 | View |
| LS-BKL-1241 | 410 x 200 mm | 410 x 200 | 60 x 50 | 21 | $899.00 | View |
| LS-BKL-1245 | 299 x 299 mm | 299 x 299 | 60 x 60 | 21 | $949.00 | View |
| LS-BKL-1243 | 399 x 249 mm | 399 x 249 | 60 x 60 | 21 | $1,029.00 | View |
| LS-BKL-1244 | 399 x 249 mm | 399 x 249 | 2 x 40 x 40 | 21 | $1,039.00 | View |
| LS-BKL-1246 | 599 x 299 mm | 599 x 299 | 75 x 75 | 21 | $1,149.00 | View |
| LS-BKL-1247 | 499 x 399 mm | 499 x 399 | 60 x 60 | 22 | $1,249.00 | View |
| LS-BKL-1249 | 525 x 450 mm | 525 x 450 | 60 x 60 | 22 | $1,459.00 | View |
| LS-BKL-1248 | 598.5 x 398.5 mm | 598.5 x 398.5 | 60 x 60 | 21 | $1,469.00 | View |
| LS-BKL-1250 | 599 x 499 mm | 599 x 499 | 60 x 60 | 22 | $1,789.00 | View |
| LS-BKL-1251 | 702 x 501 mm | 702 x 501 | 60 x 60 | 23 | $2,079.00 | View |
| LS-BKL-1252 | 902 x 501 mm | 902 x 501 | 60 x 60 | 23 | $2,619.00 | View |
