surface light source with opening
  • surface light source with opening

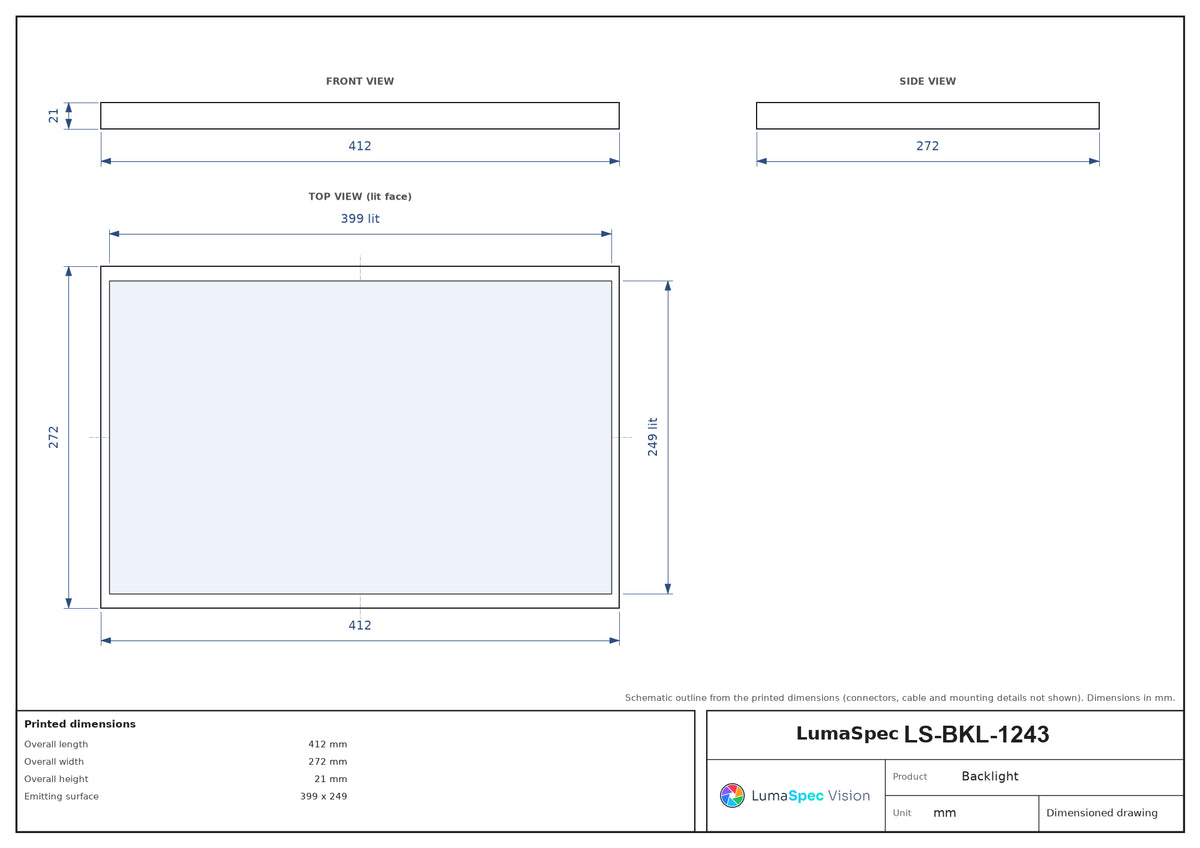

  • LS-BKL-1243 dimensions (mm)

Representative photo of this series

Backlights

399 x 249 mm surface light source with opening, opening 60 x 60 (LS-BKL-1243)

Model LS-BKL-1243

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area399 x 249 mm
  • Voltage24 V DC (12 V on request)
  • TypeStandard
$1,029.00

Ships in 2-3 weeks

2.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

399 x 249 mm surface light source with opening, opening 60 x 60 (LS-BKL-1243)LS-BKL-1243

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with a through opening, large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1243
OpeningYes
Opening (mm)60 x 60

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface (mm)399 x 249

Electrical

Voltage24 V DC (12 V on request)
Power red (W)49
Power white/blue/green (W)60

Mechanical

MountingM3 nut placement groove, groove depth 4.5 mm
Overall length (mm)412
Overall width (mm)272
Overall height (mm)21
Shipping weight2.75 kg
