surface light source with opening
  • surface light source with opening

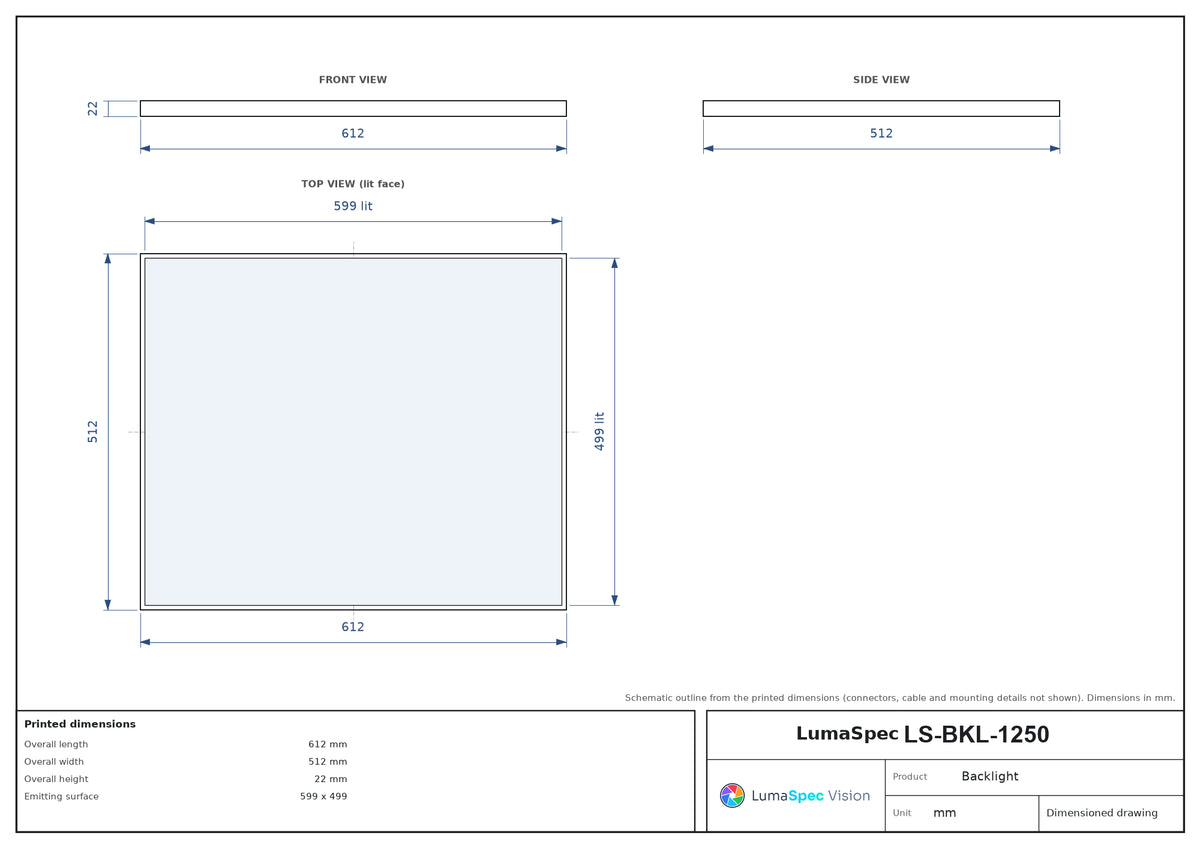

  • LS-BKL-1250 dimensions (mm)

Representative photo of this series

Backlights

599 x 499 mm surface light source with opening (LS-BKL-1250)

Model LS-BKL-1250

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area599 x 499 mm
  • Voltage24 V DC (12 V on request)
  • TypeStandard
$1,789.00

Ships in 2-3 weeks

7.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

599 x 499 mm surface light source with opening (LS-BKL-1250)LS-BKL-1250

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Surface light with a through opening, large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1250
OpeningYes
Opening (mm)60 x 60

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface (mm)599 x 499

Electrical

Voltage24 V DC (12 V on request)
Power red (W)150
Power white/blue/green (W)168

Mechanical

MountingM3 nut placement groove, groove depth 4.5 mm
Overall length (mm)612
Overall width (mm)512
Overall height (mm)22
Shipping weight7.00 kg

Other models in the Surface light source with opening (LS-BKL-S118) series

See all 19 models
ModelSize / key dataPriceAvailabilityLink
LS-BKL-1234 160 x 100 mm $329.00 Ships in 2-3 weeks View
LS-BKL-1235 199 x 99 mm $359.00 Ships in 2-3 weeks View
LS-BKL-1236 199 x 199 mm $539.00 Ships in 2-3 weeks View
LS-BKL-1237 299 x 199 mm $709.00 Ships in 2-3 weeks View
LS-BKL-1238 299 x 199 mm $719.00 Ships in 2-3 weeks View
LS-BKL-1239 349 x 199 mm $799.00 Ships in 2-3 weeks View
LS-BKL-1240 399 x 199 mm $879.00 Ships in 2-3 weeks View
LS-BKL-1242 409 x 199 mm $889.00 Ships in 2-3 weeks View
LS-BKL-1241 410 x 200 mm $899.00 Ships in 2-3 weeks View
LS-BKL-1245 299 x 299 mm $949.00 Ships in 2-3 weeks View
LS-BKL-1243 399 x 249 mm $1,029.00 Ships in 2-3 weeks View
LS-BKL-1244 399 x 249 mm $1,039.00 Ships in 2-3 weeks View
LS-BKL-1246 599 x 299 mm $1,149.00 Ships in 2-3 weeks View
LS-BKL-1247 499 x 399 mm $1,249.00 Ships in 2-3 weeks View
LS-BKL-1249 525 x 450 mm $1,459.00 Ships in 2-3 weeks View
LS-BKL-1248 598.5 x 398.5 mm $1,469.00 Ships in 2-3 weeks View
LS-BKL-1251 702 x 501 mm $2,079.00 Ships in 2-3 weeks View
LS-BKL-1252 902 x 501 mm $2,619.00 Ships in 2-3 weeks View
